Einleitung

This guide is used to help you replace the cooling fan for the HP Envy Ultrabook 4-1043cl. It can be time to change the fan when you hear noises as the fan is running. This guide provides detailed step by step instructions to ensure your successful replacement. You may need an Ifixit PRO TECH TOOLKIT to remove the screws and unwrap the bottom enclosure. Make sure the charger is DISCONNECTED and the laptop is shut down for safety reasons. Always remember to remove the battery before trying to disconnect the cooling fan. Meanwhile, it is highly recommended to use different containers to place the removed screws from different parts in case you forget where some screws belong .

  1. l1INZJh4xws2EC3d
    • Flip the laptop over so the bottom is facing you.

  2. 1SUohKewTbUBSZqY
    1SUohKewTbUBSZqY
    g6H354TOi4vuUVMh
    • Remove twelve 7.5 mm screws by using the Phillips #00 screwdriver.

  3. APt1HjfZmGAM33YR
    • Use plastic opening tool to remove the back cover.

    • You might want to remove it slowly and gently because the back cover is very thin and fragile.

  4. ubCJKUqsqCk6S6Fq
    ubCJKUqsqCk6S6Fq
    rs4DtHAgOPWSEXXU
    • Remove three 4.2mm screws by using the Phillips #00 screwdriver.

  5. o2ZJbOkKSiZTiVLA
    o2ZJbOkKSiZTiVLA
    vgVyva1DoHnuJpY6
    • Disconnect the battery cable from the motherboard and remove the battery from the device.

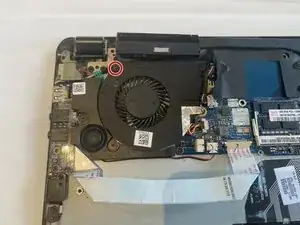

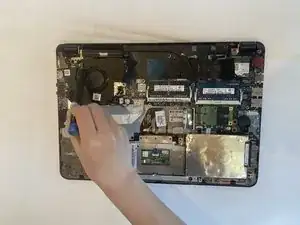

  6. WTXG3SoJaOLhXPwy
    WTXG3SoJaOLhXPwy
    24qhJNUkImkYpxoZ
    • Remove one 4.2mm screw at the bottom right corner by using the Phillips #00 screwdriver.

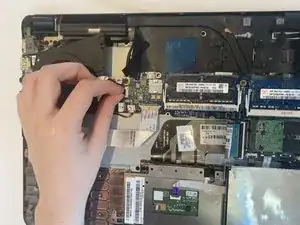

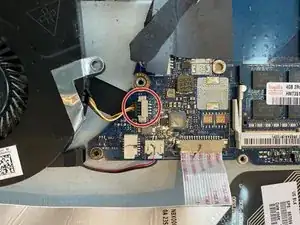

  7. CEMqjYAnUjIWbvbC
    CEMqjYAnUjIWbvbC
    CokUCvEVlWZYbUZZ
    • Disconnect the fan from the motherboard and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
