HP Envy Ultrabook 4-1043cl RAM Replacement

Geschrieben von: Tuo Han
  • Kommentare: 0
HP Envy Ultrabook 4-1043cl RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide is used to help you replace RAM for HP Envy Ultrabook 4-1043cl. It can be time to change the RAM when your laptop works unexpectedly slow. This guide provides detailed step by step instructions to ensure your success replacement. You may need an Ifixit PRO TECH TOOLKIT to remove the screws and unwarp the bottom enclosure. Before you start, make sure the charger is DISCONNECTED and the laptop is shut down for safety reasons. And always remember to remove the battery before trying to disconnect hard disk drive. Meanwhile, it is highly recommended to use different containers to place the removed screws from different parts in case you may forget where some screws belong to. If the laptop goes blue-screen after you replace it, this means the new-replaced RAM is poorly-connected and you should reconnect it.

  1. l1INZJh4xws2EC3d

    • Flip the laptop over so the bottom is facing you.

  2. 1SUohKewTbUBSZqY
    1SUohKewTbUBSZqY
    g6H354TOi4vuUVMh

    • Remove twelve 7.5 mm screws by using the Phillips #00 screwdriver.

  3. APt1HjfZmGAM33YR

    • Use plastic opening tool to remove the back cover.

    • You might want to remove it slowly and gently because the back cover is very thin and fragile.

  4. ubCJKUqsqCk6S6Fq
    ubCJKUqsqCk6S6Fq
    rs4DtHAgOPWSEXXU

    • Remove three 4.2mm screws by using the Phillips #00 screwdriver.

  5. o2ZJbOkKSiZTiVLA
    o2ZJbOkKSiZTiVLA
    vgVyva1DoHnuJpY6

    • Disconnect the battery cable from the motherboard and remove the battery from the device.

  6. wQav3vIrrYGoZFTg
    wQav3vIrrYGoZFTg
    kStCcWSmCVVUPxNN
    ZUpOW1DLLbmyZEte

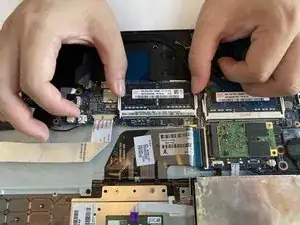

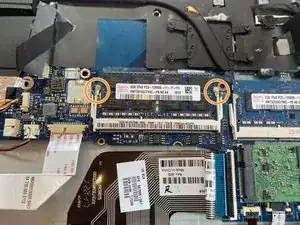

    • The RAM lies in the middle-right side of the device.

    • Use your fingers and push the two clips outwards to release the RAM stick.

  7. PMj6m12xVFIECaDK

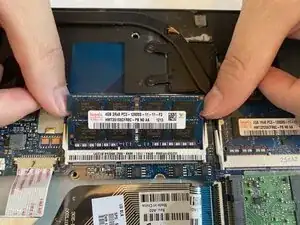

    • Remove the RAM from the device.

  8. ICF6LRCMG6WeO1XH
    ICF6LRCMG6WeO1XH
    1Ab2pA3ZEPGOLTQY
    RRGfOCxrw4XYiCBm

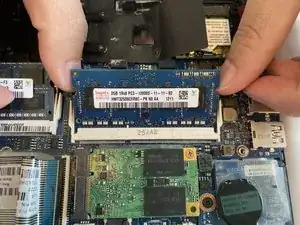

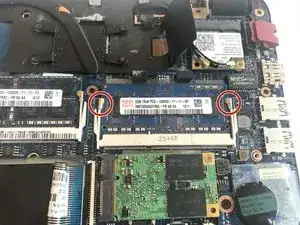

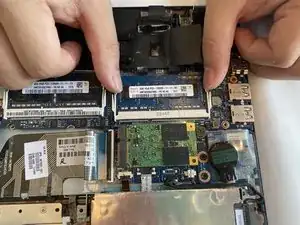

    • Repeat the previous two steps to remove any other RAM sticks.

Abschluss

To reassemble your device, follow these instructions in reverse order.
