HP Envy X2-15-C001Dx Back Panel Replacement

Geschrieben von: Dylan Hathaway
  • Kommentare: 0
HP Envy X2-15-C001Dx Back Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

The guide gives a step by step process of disassembling the HP Envy X2-15-C001Dx (Model number: J9J38UA), so that you can access all the components that may be causing issues for the laptop’s functionality. When using a prying tool, be careful not to damage the laptop by using too much force or putting the pry tool too far in. If done incorrectly you may bend the laptop, break the screen, or damage the internals.

  1. NgneJwubiDwx4RBU

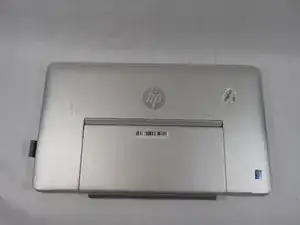

    • Place the laptop face down on a table.

  2. N2SWLKaVNtleJUJt
    N2SWLKaVNtleJUJt
    HGBa4HSewlWWVlv2

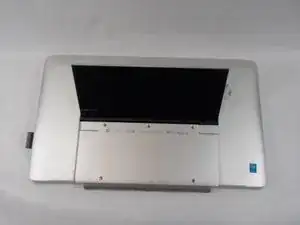

    • Lift up the back stand.

  3. XADGZfOdEhLBtyRG
    XADGZfOdEhLBtyRG
    k3RESqJxYJrEKNvM

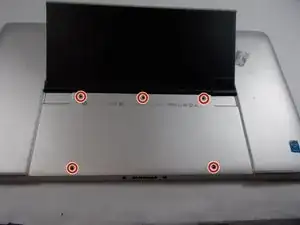

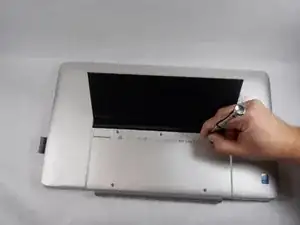

    • Remove the five screws from the bottom of the back plate using a Phillips #1 screwdriver.

  4. Z5k6j3dbXOQdShpp

    • Remove four screws from the back stand hinges using a Phillips #1 screwdriver.

  5. wQiCwOLtK36DUtPR
    wQiCwOLtK36DUtPR
    ijTN5WQhbcVUJkOX

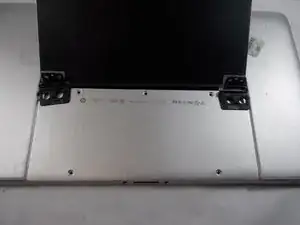

    • Remove the hinges and the back stand from the laptop.

  6. 2ZBVoWJ1OioaEUNj

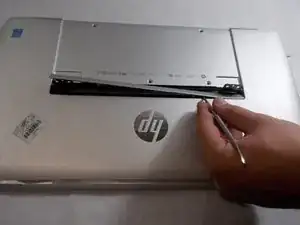

    • Use a spudger to remove the thin panel where the back stand was.

  7. AVV1sN4lbfCWicoe

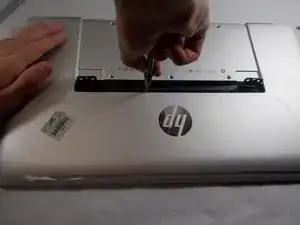

    • Remove the screws from the back panel using a Phillips #1 screwdriver.

  8. hoNJ3qBu3OsXKgxv
    hoNJ3qBu3OsXKgxv
    CWSyyVpVlc4DvsOE

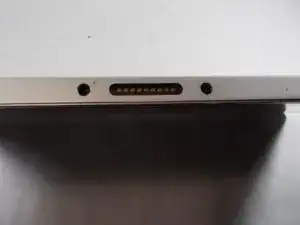

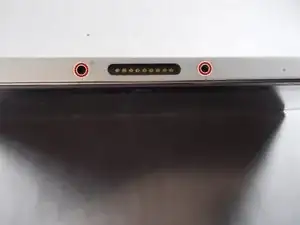

    • Remove two side screws using a Phillips #1 screwdriver.

  9. AcGWQESSlNHOfGwn
    AcGWQESSlNHOfGwn
    HGl6nYMXstIS5BZm

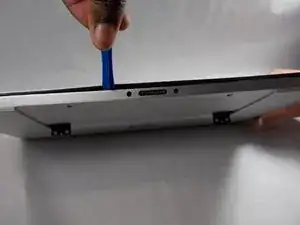

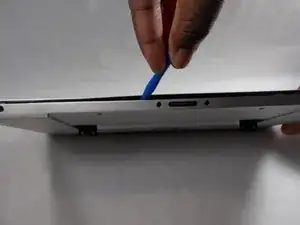

    • Pry apart the base from the screen by going around the entire perimeter with an opening tool.

  10. TQy1YrqyRnL4UNIL
    TQy1YrqyRnL4UNIL
    Cr1bvvrZLjkMninW

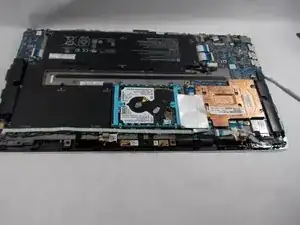

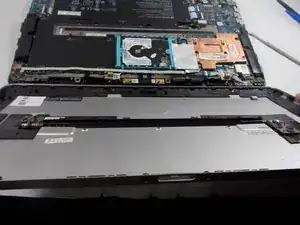

    • Remove the back panel from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
