HP Envy X2-15-C001Dx Battery Replacement

Place the laptop face down on a table.

Lift up the back stand.

Remove the five screws from the bottom of the back plate using a Phillips #1 screwdriver.

Remove four screws from the back stand hinges using a Phillips #1 screwdriver.

Remove the hinges and the back stand from the laptop.

Use a spudger to remove the thin panel where the back stand was.

Remove the screws from the back panel using a Phillips #1 screwdriver.

Remove two side screws using a Phillips #1 screwdriver.

Pry apart the base from the screen by going around the entire perimeter with an opening tool.

Remove the back panel from the laptop.

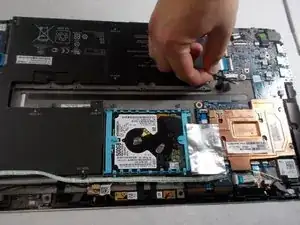

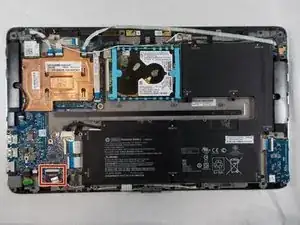

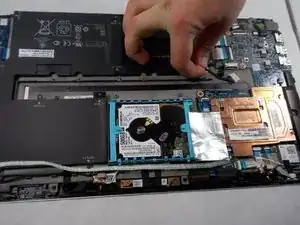

Unplug the battery connector from the motherboard.

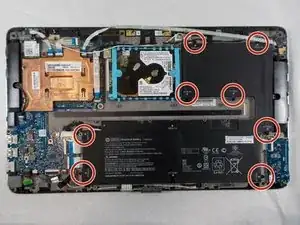

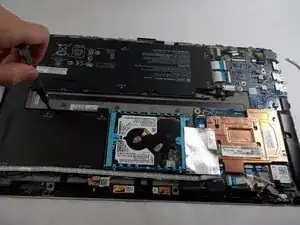

Remove the eight screws holding the battery in place using a Phillips #1 screwdriver.

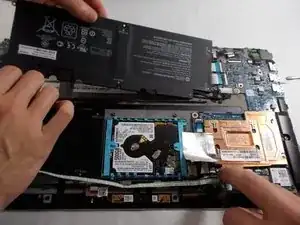

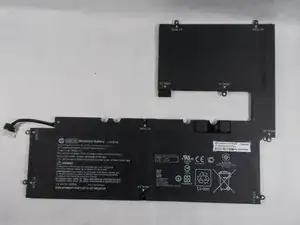

Remove the battery by simply lifting it out of the device.
