HP Envy X2-15-C001Dx Hard Drive Replacement

Geschrieben von: Dylan Hathaway
  • Kommentare: 0
HP Envy X2-15-C001Dx Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will explain how to remove and replace the hard drive in the HP Envy X2-15-C001Dx.

The hard drive is the part of the computer that stores and retrieves data. Replacing the hard drive can solve different problems such as irregular noises and computer crashes.

Be sure to back up your hard drive before replacing.

  1. NgneJwubiDwx4RBU

    • Place the laptop face down on a table.

  2. N2SWLKaVNtleJUJt
    N2SWLKaVNtleJUJt
    HGBa4HSewlWWVlv2

    • Lift up the back stand.

  3. XADGZfOdEhLBtyRG
    XADGZfOdEhLBtyRG
    k3RESqJxYJrEKNvM

    • Remove the five screws from the bottom of the back plate using a Phillips #1 screwdriver.

  4. Z5k6j3dbXOQdShpp

    • Remove four screws from the back stand hinges using a Phillips #1 screwdriver.

  5. wQiCwOLtK36DUtPR
    wQiCwOLtK36DUtPR
    ijTN5WQhbcVUJkOX

    • Remove the hinges and the back stand from the laptop.

  6. 2ZBVoWJ1OioaEUNj

    • Use a spudger to remove the thin panel where the back stand was.

  7. AVV1sN4lbfCWicoe

    • Remove the screws from the back panel using a Phillips #1 screwdriver.

  8. hoNJ3qBu3OsXKgxv
    hoNJ3qBu3OsXKgxv
    CWSyyVpVlc4DvsOE

    • Remove two side screws using a Phillips #1 screwdriver.

  9. AcGWQESSlNHOfGwn
    AcGWQESSlNHOfGwn
    HGl6nYMXstIS5BZm

    • Pry apart the base from the screen by going around the entire perimeter with an opening tool.

  10. TQy1YrqyRnL4UNIL
    TQy1YrqyRnL4UNIL
    Cr1bvvrZLjkMninW

    • Remove the back panel from the laptop.

  11. MAyaRHGTrGRsfxWa
    MAyaRHGTrGRsfxWa
    MubIMhhFDGDbYJ1q
    HZyh6MFjmEF4AJ12

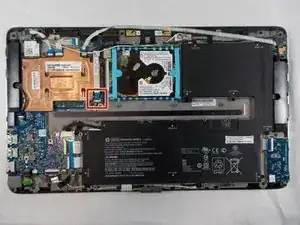

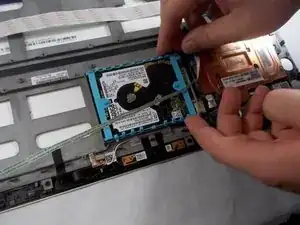

    • Lift the hard drive out from its slot, taking care not to tear the ribbon cable that is connecting it to the motherboard.

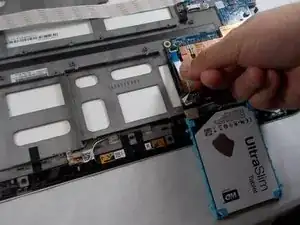

    • Unplug the hard drive from the motherboard.

    • Completely remove the hard drive from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
