This guide will explain how to remove and replace the wifi card in the HP Envy X2-15-C001Dx. Your wifi card may need to be replaced if it is nonfunctioning or having connectivity issues. Replacing the wifi card will solve any wifi related issues. In order to complete this task, you will need to have a Phillips head screwdriver and know how to use it.

  1. NgneJwubiDwx4RBU
    • Place the laptop face down on a table.

  2. N2SWLKaVNtleJUJt
    N2SWLKaVNtleJUJt
    HGBa4HSewlWWVlv2
    • Lift up the back stand.

  3. XADGZfOdEhLBtyRG
    XADGZfOdEhLBtyRG
    k3RESqJxYJrEKNvM
    • Remove the five screws from the bottom of the back plate using a Phillips #1 screwdriver.

  4. Z5k6j3dbXOQdShpp
    • Remove four screws from the back stand hinges using a Phillips #1 screwdriver.

  5. wQiCwOLtK36DUtPR
    wQiCwOLtK36DUtPR
    ijTN5WQhbcVUJkOX
    • Remove the hinges and the back stand from the laptop.

  6. 2ZBVoWJ1OioaEUNj
    • Use a spudger to remove the thin panel where the back stand was.

  7. AVV1sN4lbfCWicoe
    • Remove the screws from the back panel using a Phillips #1 screwdriver.

  8. hoNJ3qBu3OsXKgxv
    hoNJ3qBu3OsXKgxv
    CWSyyVpVlc4DvsOE
    • Remove two side screws using a Phillips #1 screwdriver.

  9. AcGWQESSlNHOfGwn
    AcGWQESSlNHOfGwn
    HGl6nYMXstIS5BZm
    • Pry apart the base from the screen by going around the entire perimeter with an opening tool.

  10. TQy1YrqyRnL4UNIL
    TQy1YrqyRnL4UNIL
    Cr1bvvrZLjkMninW
    • Remove the back panel from the laptop.

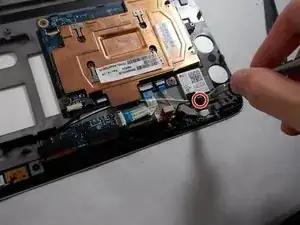

  11. GGa3eyOyATrsQTvA
    • Remove the screw holding the Wi-Fi card using a Phillips #1 screwdriver.

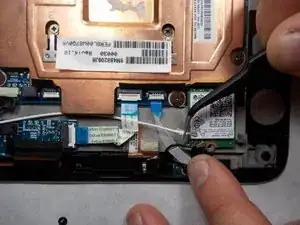

  12. KsRlWpnPRGNPjSu5
    • Disconnect the white coaxial cable connected to the Wi-Fi card using a pair of tweezers.

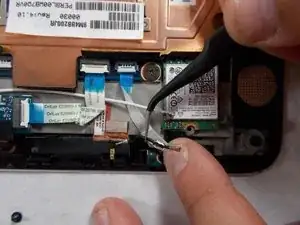

  13. cLbUukGXQuK5UwTL
    • Disconnect the black coaxial cable connected to the Wi-Fi card using a pair of tweezers.

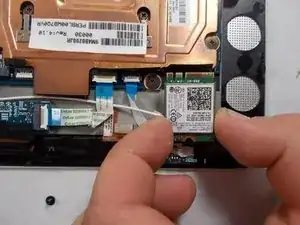

  14. GLRHIONSGhVcXnQS
    • Pull out the Wi-Fi card out of its slot to remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
