HP Envy dv6-7363cl Fan Replacement

Geschrieben von: dylananthony

Kommentare: 9

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 Minuten

Einleitung

Reader will be able to successfully replace their fan assembly in the device. A basic understanding of simple tools such as a screwdriver is needed. Any form of electricity must be removed from device, including the charging cable and battery. Reader will need to be able to gently disassemble almost entire laptop.

Werkzeuge

Ersatzteile

HP Pavilion DV6000 Fan

Schritt 1

Flip the device upside-down so that its bottom is facing up.

Schritt 2

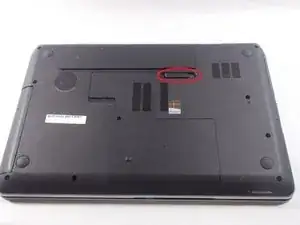

Push the lever underneath the battery to the left as shown in the picture.

Schritt 3

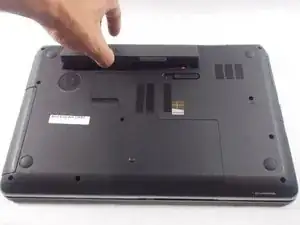

Lift the battery up out of its socket.

Schritt 4

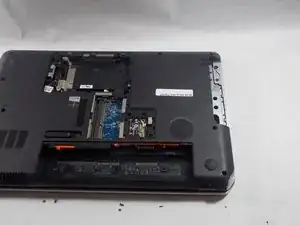

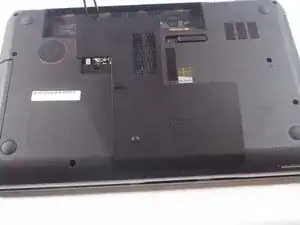

Remove the circled screws from the back panel.

Schritt 5

Lift and remove the back panel of the device.

There is an additional screw behind the back panel that secures the keyboard.

Darrel Wallace - 02/10/20

Schritt 6

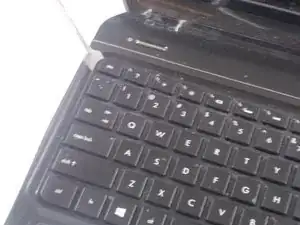

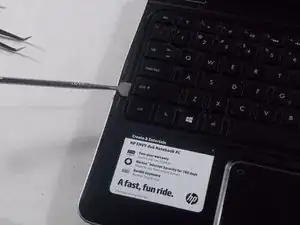

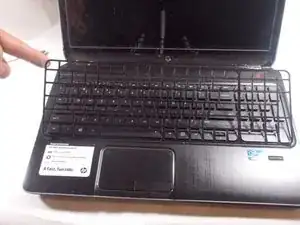

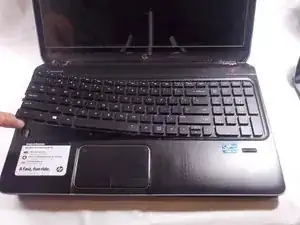

Flip the laptop back over and carefully pry the keyboard frame out of the device.

It should be noted that the frame is only the upper black part of the keyboard strata. Additionally, there are tabs that hinge the entire frame at the side closest to the camera. Picture 3 does a good job showing this.

zabadoo - 12/05/20

Schritt 7

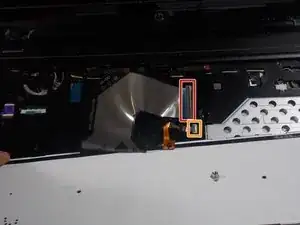

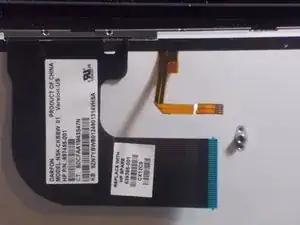

Lift the keyboard out of the device and carefully remove ribbon cables.

If you are unsure of how ribbon cables attach, the linked youtube video may be helpful (you’ll only find the first type if memory serves).

https://www.youtube.com/watch?v=3AH3FCj4...

zabadoo - 12/05/20

Schritt 8

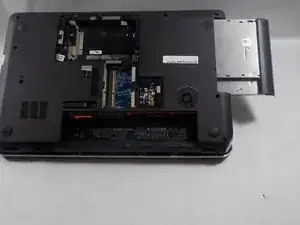

Flip device onto its back, remove disk tray and circled screw.

One screw that holds the drive in place needs to be removed first.

Muadh Ali - 07/02/21

Schritt 9

Flip device right-side-up and remove ribbon cables from plastic cover beneath keyboard. Remove plastic cover from device.

Once you remove the keyboard, there should be cutouts that allow you to disconnect the cables without having to lift up on the top case.

techr - 26/02/21

Schritt 10

Disconnect red cord from DVD drive and remove DVD drive.

Schritt 11

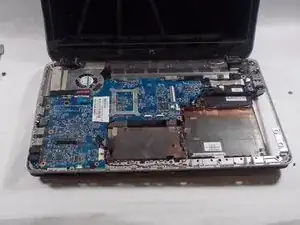

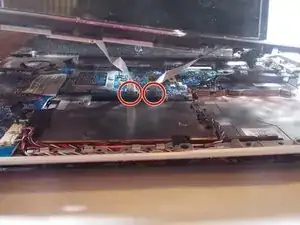

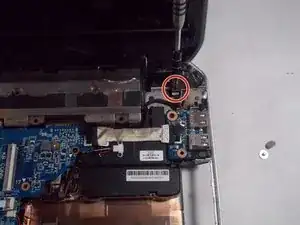

Remove circled screws.

Schritt 12

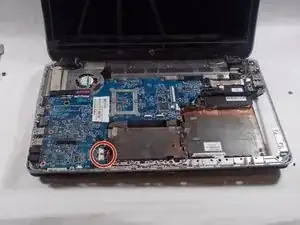

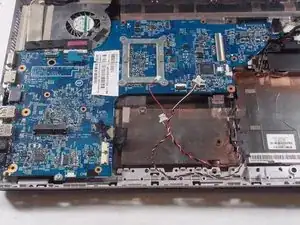

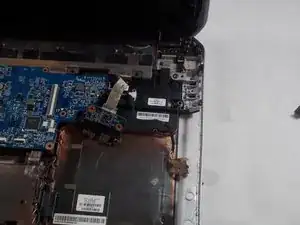

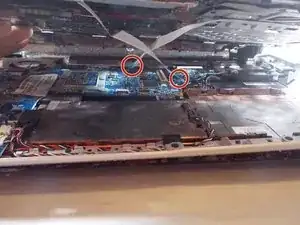

Disconnect red and white cords from blue circuit board.

There are a few other cables to disconnect at this step. Next to the red and white cords you just disconnected, there’s the black and sliver which seems to run to the right. Under the motherboard, there is the SATA cable you need to disconnect. Finally, the LCD cable, which runs above the fan. Carefully life up on it.

techr - 26/02/21

Schritt 13

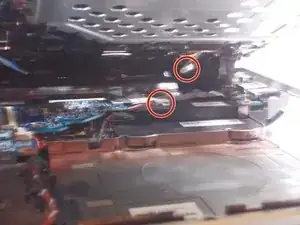

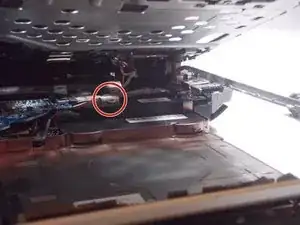

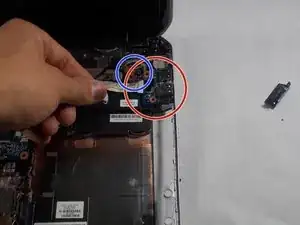

Gently pull circled pieces from their holsters.

Schritt 14

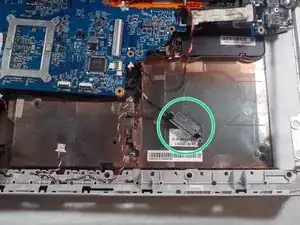

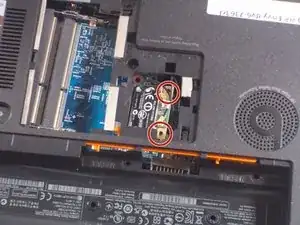

Turn device onto its back and remove circled screws from Wi-Fi card. Flip device back over and unscrew disk reader (circled in green).

Schritt 15

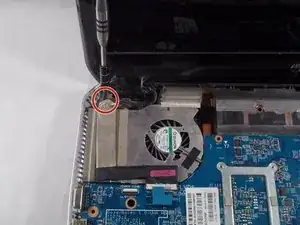

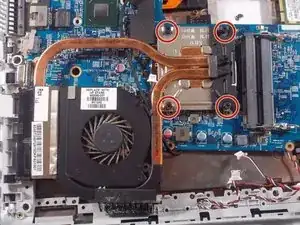

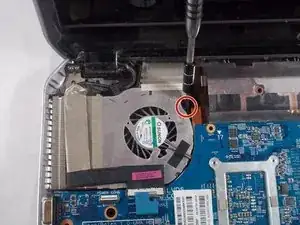

Remove circled screws from blue circuit board and lift fan assembly out of device.

Does the fan come with the copper part on the fan. Can you show us the picture when you lift it out? and how to re-attach the fan to the copper? Thank you. Ann

Ann -

Abschluss

To reassemble your device, follow these instructions in reverse order.
