HP Envy m6-1105dx WLAN Card Replacement

Geschrieben von: Ian Mwalago
  • Kommentare: 2
HP Envy m6-1105dx WLAN Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

6 - 10 Minuten

Einleitung

In this repair guide, you will be learning how to replace the WLAN (Wi-Fi) card on your HP Envy m6-1105dx. For this repair, you will need a JIS #0 screwdriver. You will have to loosen a screw to be able to remove the main service panel on the case of your HP Envy m6-1105dx. Once this is removed, you can access the screw holding the cover for the WLAN card in place, and remove both parts. You will then have to gently (using a plastic tool) pry up the antenna connected to the WLAN card. This will allow you to reach the screws holding the WLAN card in place. Then, gently pull out the WLAN card.

  1. 1uAjHWI1QgKBSTPq

    • Turn the computer completely off.

    • Disconnect any devices you have on it.

    • Turn the computer upside down on a flat surface.

    Add required tools necessary to complete removal of the battery.

    Zachary Kelley -

  2. BMmaYljlVsEHXTYY

    • Push the battery release latch with one hand.

    • Grab the battery with the other hand.

    • Lift out on an angle.

    Image is blurry.

    Zachary Kelley -

  3. bhxdquMTFX2CxRJk

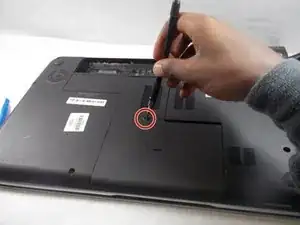

    • Release the screw in the center of the service cover.

    • Slide the battery release latch and pull cover towards you.

    • Lift cover off.

  4. LnotfPHC5HaoeN3D
    LnotfPHC5HaoeN3D
    2YcQexDr5s54CcGX

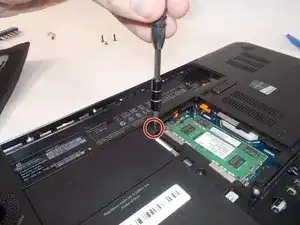

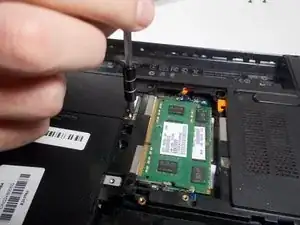

    • Use a JIS #0 screwdriver to unscrew the small cover where the WLAN card is.

    • The screw does not come out all the way so unscrew it as far as you can then try to life the cover.

  5. OcwLmYb1mIow3usE
    OcwLmYb1mIow3usE
    52ttB2fyNQhkYhX5
    RQgjPSOlUFHGYyx2

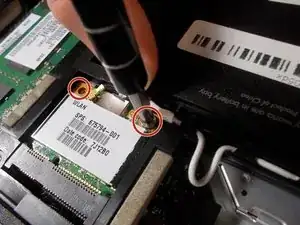

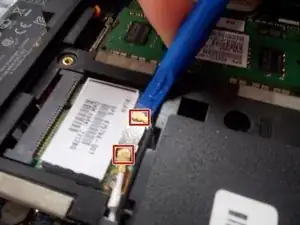

    • Use a plastic opening tool to gently disconnect the WLAN antenna cables.

  6. 6mo4KNaAD51yGIvQ
    6mo4KNaAD51yGIvQ
    BqYuKghqVWrDXNwC

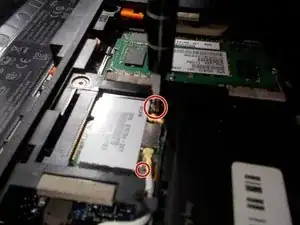

    • Remove the two PM2.0×3.0 screws that secure the WLAN module to the base using the JIS #0 screwdriver.

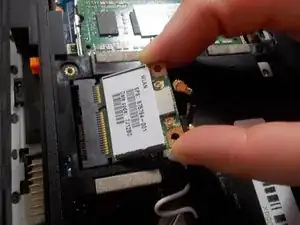

    • Using two fingers, grab the sides of the WLAN card and slowly pull it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
