Einleitung

  1. iaUPbTd2HKvJbAZ1
    • There are 12 phillips head screws which need to be unscrewed before removing the backplate of the laptop.

  2. JlXrnpMaDiKH5dtK
    • Next, use a size PH1 Philips head screw driver to remove the screws.

  3. fCPlnosXSkAsZBTr
    • Then, use a prying tool to help uncouple the backplate.

  4. nBu5XLNoV2QbXtgO
    • Finally, use both hands to lift up and take off the back plate of the computer.

  5. iTwYrPFDehVQtkJ1

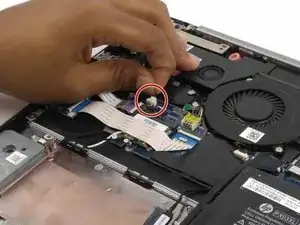

    • There is a power cord connecting the CMOS battery to the motherboard. Disconnect this cord by gently pulling it up, towards the edge of the device.

  6. aWn3HTFSPlcChjjX

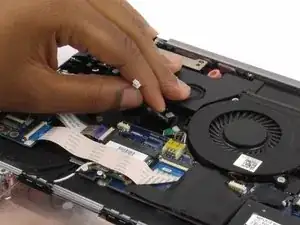

    • Once the connecting cord has been disconnected, gently lift the battery directly up, above the device.

    • The CMOS battery is now completely removed, and ready to be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
