HP Envy m6-k022dx Lower Case Replacement

Geschrieben von: Jibreel Campbell
  • Kommentare: 0
HP Envy m6-k022dx Lower Case Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

To gain access to the inside of the laptop, you will first need to remove the back plate. Make sure you have a PH1 size screwdriver to unscrew all of the screws.

  1. iaUPbTd2HKvJbAZ1

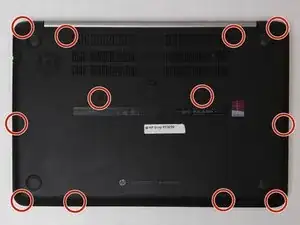

    • There are 12 phillips head screws which need to be unscrewed before removing the backplate of the laptop.

  2. JlXrnpMaDiKH5dtK

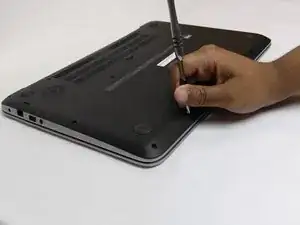

    • Next, use a size PH1 Philips head screw driver to remove the screws.

  3. fCPlnosXSkAsZBTr

    • Then, use a prying tool to help uncouple the backplate.

  4. nBu5XLNoV2QbXtgO

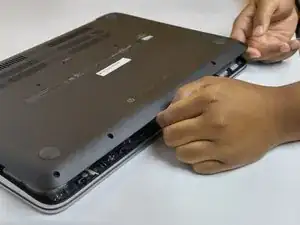

    • Finally, use both hands to lift up and take off the back plate of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
