HP Envy m6-n010dx CPU Replacement

Geschrieben von: Sam Klink
  • Kommentare: 3
HP Envy m6-n010dx CPU Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide demonstrates how to properly remove the CPU of a HP Envy m6-n010dx.

  1. JPonKfeIbGQQYpZI
    JPonKfeIbGQQYpZI
    WfqPpMbeexD6k3Vk
    Domg1awBrQugxbfA

    • Find the battery removal slider.

    • Slide it across while simultaneously popping out and removing the device's battery.

  2. DCbGQCi2qTCCxnNv

    • Remove the five marked screws found under the battery using a philips head screwdriver.

  3. 61fOHiKch3XVfQuV
    61fOHiKch3XVfQuV
    hZSqgpnBTRQOVM6C

    • Remove the small panel on the back by prying it off. This should reveal the hard drive.

  4. nOemvaDpOqVeNBpe
    nOemvaDpOqVeNBpe
    s5goPHRgNqYXxB6u
    qpsmd1LbRXOmIsOB

    • The hard drive is connected to the motherboard via this blue-tabbed cable, highlighted in red.

    • Gently pry off the cover to release the cable.

    • Slowly lift the hard drive out and away from the device.

    Hola, me podrian decir como se llama o que codigo o modelo tienen el cable flex para conectar el disco duro??? Gracias por la respuesta.

    Enrique Alaniz -

    Thank you. I needed to replace my fan and this was a great tutoring. There were a couple extra screws that were not included in this but I figured it out. And yes the back was hard to get off!

    crystal perez -

    I’m glad this guide was able to help someone! It was completed as part of a technical writing course at my university and I honestly thought no one would ever use it. I’m glad to know I’m wrong.

    Johnathan Morales -

  5. tkKVZ2CHcVtnr1hi
    tkKVZ2CHcVtnr1hi
    h6r3yXFMOKtddsTI
    BKhVUqqA6yTIFqRC

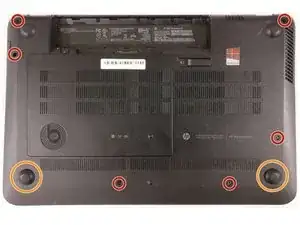

    • Remove the 6 highlighted 1.5 mm screws using a #00 philips head screwdriver.

    • Pry off the lower two grip pads highlighted in orange.

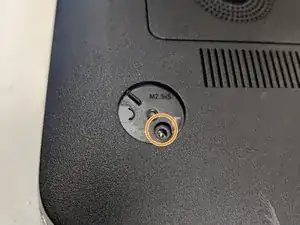

    • Remove the two additional 1.5mm screws underneath the lower grip pads using a #00 philips head screwdriver.

    • You may need to use more force than feels necessary.

    • Remove the large back panel to reveal the inner workings.

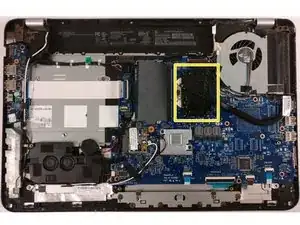

    • The CPU can be found underneath the heatsink, highlighted in yellow.

    • The back panel might be difficult to remove. Use a flat object to help pry it off, and don't be afraid to use force.

  6. I2WHANd4sUgJnUOH
    I2WHANd4sUgJnUOH
    hMPWRlQHPeDbZTLC
    h4q1M5UJuLI1u1OG

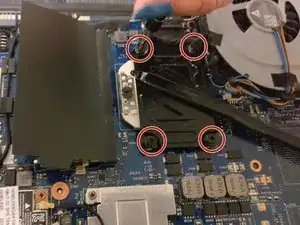

    • Loosen the four 1.5 mm screws on the heat sink using a #00 philips head screwdriver.

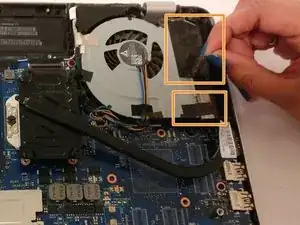

    • Remove the tape holding the heatsink to the fan.

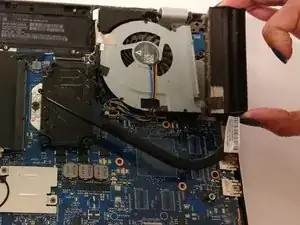

    • Remove the heatsink.

    • When putting everything back together, use a new strip of electrical tape to make sure the parts are properly secured.

  7. DxinQaNLHFohCGRY
    DxinQaNLHFohCGRY
    sq3lZHKUQXcDaoiY
    GICVOdmw4JdpvXyP

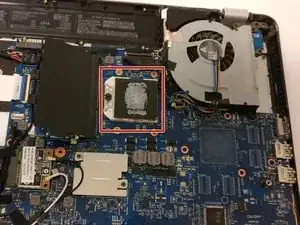

    • Find the uncovered CPU highlighted in red.

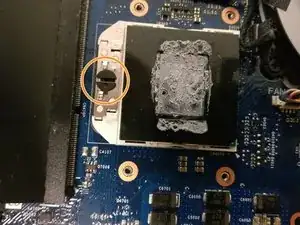

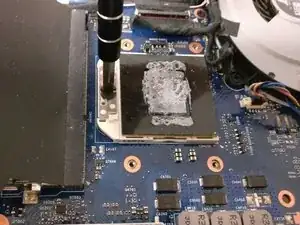

    • Turn the fastener, highlighted in orange, 180 degrees counterclockwise using a flat headed screwdriver to loosen the CPU.

  8. DxdsTHPIKkxnyJe2
    DxdsTHPIKkxnyJe2
    oLXBxbkULbydwEF1
    WaSH2BrOBNGgUsEL

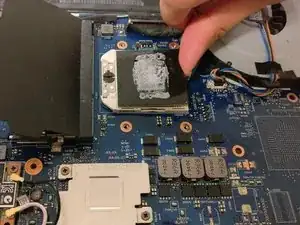

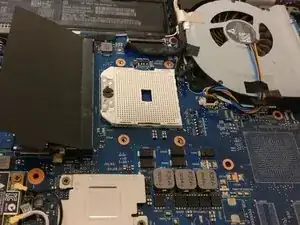

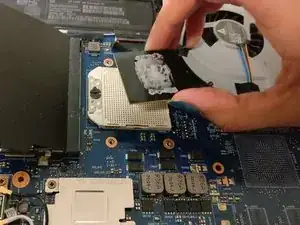

    • Gently lift up and remove the CPU

    • Only lift the CPU by the sides, making sure not to touch the bottom, otherwise you may damage your CPU.

    • Don't forget to apply a few drops of thermal paste when putting in a new CPU.

Abschluss

To reassemble your device, follow these instructions in reverse order. Be sure to apply new thermal paste if you are using a new CPU.
