HP Envy m6-n010dx Hard Drive Replacement

Geschrieben von: Johnathan Morales

Kommentare: 3

HP Envy m6-n010dx Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide demonstrates how to properly remove the Hard Drive of a HP Envy m6-n010dx.

Werkzeuge

Schritt 1

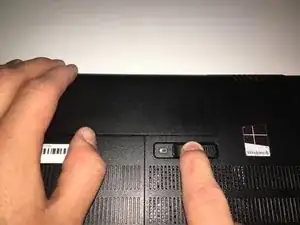

Find the battery removal slider.

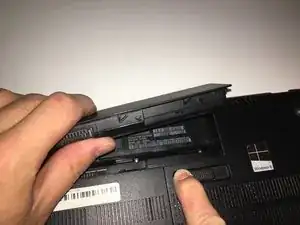

Slide it across while simultaneously popping out and removing the device's battery.

Schritt 2

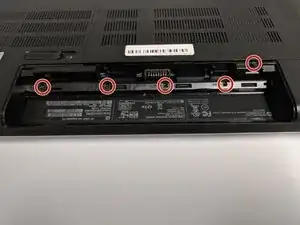

Remove the five marked screws found under the battery using a philips head screwdriver.

Schritt 3

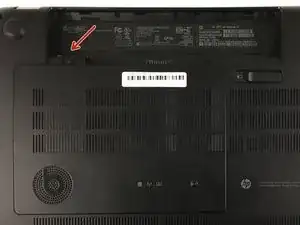

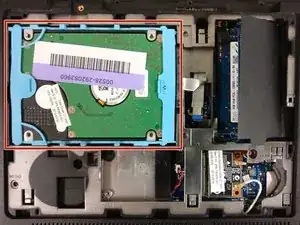

Remove the small panel on the back by prying it off. This should reveal the hard drive.

Schritt 4

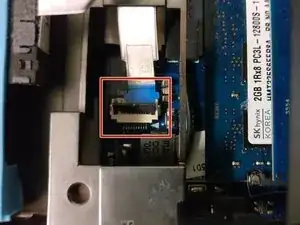

The hard drive is connected to the motherboard via this blue-tabbed cable, highlighted in red.

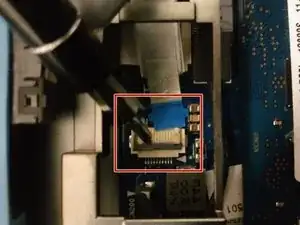

Gently pry off the cover to release the cable.

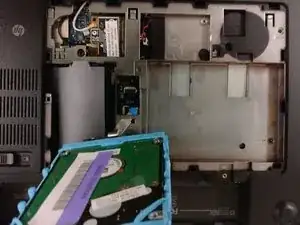

Slowly lift the hard drive out and away from the device.
