HP Envy m6-n010dx RAM Replacement

Geschrieben von: Johnathan Morales

Kommentare: 3

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

4 - 8 Minuten

Einleitung

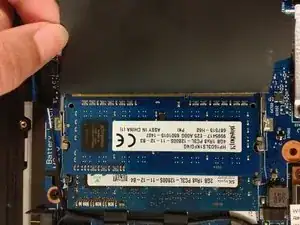

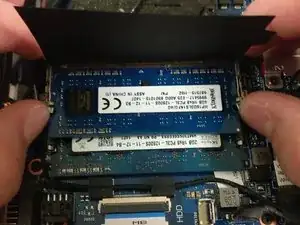

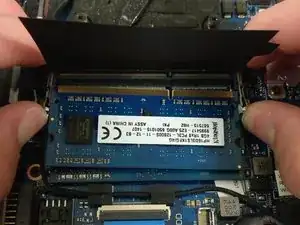

This guide demonstrates how to properly remove the RAM of a HP Envy m6-n010dx.

Werkzeuge

Schritt 1

Find the battery removal slider.
Slide it across while simultaneously popping out and removing the device's battery.

Schritt 2

Remove the five marked screws found under the battery using a philips head screwdriver.

Schritt 3

Remove the small panel on the back by prying it off. This should reveal the hard drive.

Schritt 4

The hard drive is connected to the motherboard via this blue-tabbed cable, highlighted in red.
Gently pry off the cover to release the cable.
Slowly lift the hard drive out and away from the device.

Hola, me podrian decir como se llama o que codigo o modelo tienen el cable flex para conectar el disco duro??? Gracias por la respuesta.

Enrique Alaniz - 10/12/19

Thank you. I needed to replace my fan and this was a great tutoring. There were a couple extra screws that were not included in this but I figured it out. And yes the back was hard to get off!

crystal perez - 20/02/20

I’m glad this guide was able to help someone! It was completed as part of a technical writing course at my university and I honestly thought no one would ever use it. I’m glad to know I’m wrong.

Johnathan Morales - 21/02/20

Schritt 5

Remove the highlighted screws
Pry off the lower two grip pads
You may need to use more force than feels necessary

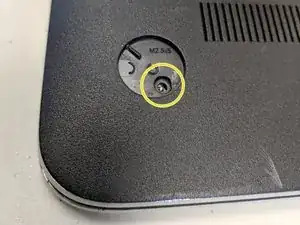

Remove the two additional screws underneath the lower grip pads

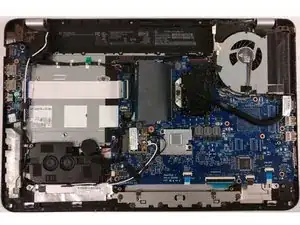

Remove the large back panel to reveal the inner workings
The back panel might be difficult to remove. Use a flat object to help pry it off, and don't be afraid to use force.
