HP Envy x360 15-bp143cl Screen Replacement

Geschrieben von: Spencer Berkins
  • Kommentare: 2
HP Envy x360 15-bp143cl Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 8 Minuten

Einleitung

Use this guide to replace the screen of an HP Envy x360 15-bp143cl. The laptop is also identified by its model number, 3TS71UAR#ABA.

Many factors can cause a laptop’s screen to malfunction or break. Review the HP Envy x360 15-bp143cl Screen Troubleshooting Page to check if any common factors are affecting the performance of your device.

Turn the laptop off and disconnect it from any power supply before starting the replacement process.

  1. eHWqKbyEEbUV1sBT

    • Use a suction handle to pull the screen display out of the screen casing.

    • If the screen is difficult to remove, use an opening tool to pry the sides of screen from the screen casing.

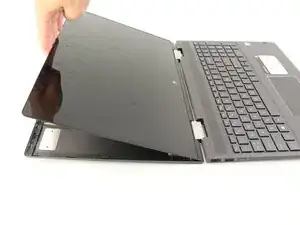

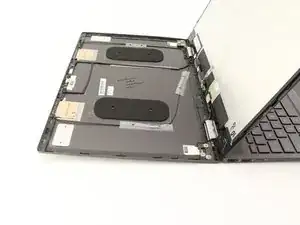

  2. AeXtPysXeLeKnyWZ
    AeXtPysXeLeKnyWZ
    h1XON3yH2mSjpATf

    • Lift the screen display from the screen casing, hinging it from the top edge to expose the back of the panel.

    • Do not separate the display from the casing completely, as there are still cable connections holding it in place.

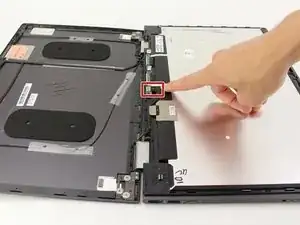

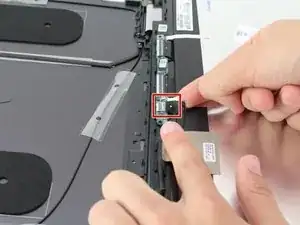

  3. n2ABTSkmtoHJA5SB
    n2ABTSkmtoHJA5SB
    q5OLsMbWq4iaJjqo

    • Detach the connecting cable between the laptop and the display screen.

    • Remove the display screen.

    Be careful pulling up the taped cables that lead to the fragile webcam board, which is pressure-fit rather than screwed in. Easy to break, so I would recommend prying up the board before removing the cable.

    Keith Calder -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Spencer Berkins

Mitglied seit: 10/10/19

556 Reputation

Ein Kommentar

Thank you for this great guide, been very useful knowing how to remove the screen from th housing! However; I'm looking to replace not the screen but the 'screen housing' as the plastic bracket that the hinges screw into (three round flat screws you can see for each hinge) has torn. Very bad design IMHO. The entire screw/bolt has just torn free (all three) on the right hinge. Seeing as the plastic bracket is glued to the metal casing it is irreparable…

Anybody know where I can get the replacement (my HP Envy has a metal/aluminium housing in silver colour).

Kind regards,

Adrian

Adrian Munro -
