RAM can wear over time leading to blue screen of death, corrupt files, and other issues. In addition, faulty RAM may lead to slower computer loading times and can affect the overall performance of a computer. If you’re looking to replace or upgrade the RAM in your device, use the steps in this guide to replace the RAM in your laptop.

  1. oilarERO11APLS4w
    oilarERO11APLS4w
    JhnXq6HeERaVKlaw
    • Power off your laptop before beginning disassembly.

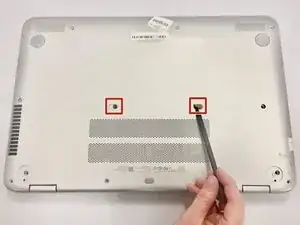

    • Pry off the 2 rear rubber pads (closest to the laptop hinge) using the plastic opening tool to reveal two screws.

    • Remove the 2 anti-tamper proof covers using the spudger to reveal two screws.

  2. JaNok2SUAEikDDS6

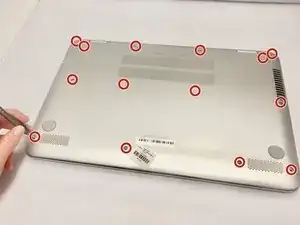

    • Remove the fourteen 7mm screws using the Phillips #0 screwdriver from the bottom of the laptop.

  3. cDA2m2kYPa5GWJyx
    cDA2m2kYPa5GWJyx
    HhTFXBSkdWPbXrjS
    • Turn the device right side up and open the lid.

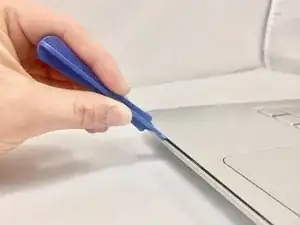

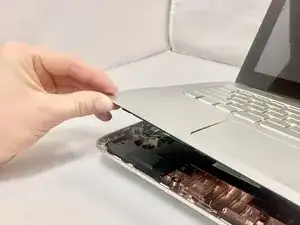

    • Insert the plastic opening tool in between the keyboard plate and the base of laptop.

    • Run the tool along seem, prying up as you go.

    • Separate the keyboard plate from the base, lifting from the front.

  4. 1vExRKLdUl2qLtTT

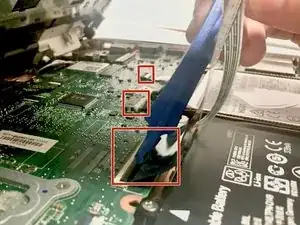

    • There are 3 ribbon cables (black, white, and copper color) connecting the computer to the keyboard plate. Disconnect the 3 ribbon cables using the plastic opening tool by prying up the latches holding each cable in place.

    • Remove the keyboard plate from the device.

  5. h1uYARLwehBAj5D6

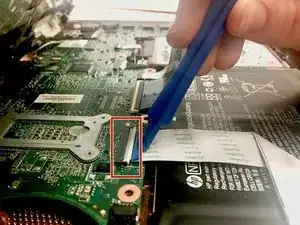

    • Remove the thick white ribbon cable covering the battery using the plastic opening tool by prying up the latches attaching each end.

  6. PTSAkqCnrqMZ6F4h

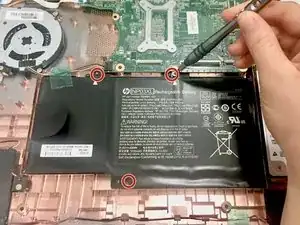

    • Remove the three 4mm screws using the Phillips #0 screwdriver.

  7. DdNK2XF4ZApp2AUN
    • Disconnect the battery from the motherboard.

    • There may be tamper-proof tape holding the battery in place. Remove the tape if present.

    • Remove the battery from the device.

  8. qDKEI4cUDdmTUfLi
    • Remove the three 4mm screws using the Phillips #0 screwdriver from the device fan.

  9. ngDMABhaJMnHULFB
    ngDMABhaJMnHULFB
    PYyLbEhR3hfGFve4

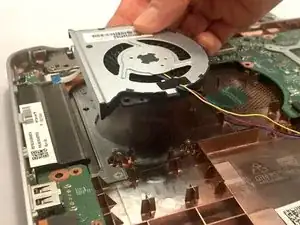

    • Disconnect the fan from the motherboard using the spudger.

    • Remove the fan from the device.

  10. ktMoA1RLijeqeMXx
    ktMoA1RLijeqeMXx
    45OCPcEKWSVC6DWW

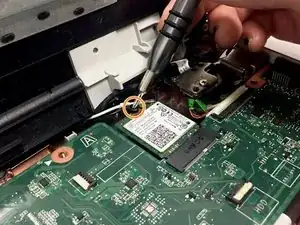

    • Remove the five 4mm screws with the Phillips #0 screwdriver.

    • Remove one 3mm screw with the Phillips #00 screwdriver.

  11. RT1MyLDlJKluBWgM
    RT1MyLDlJKluBWgM
    syvpBSiUnHntAyUC

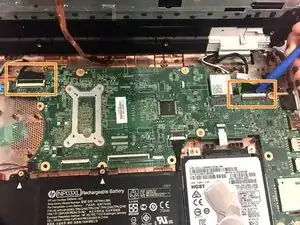

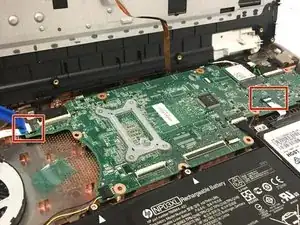

    • Disconnect the 2 white ribbon cables using the plastic opening tool.

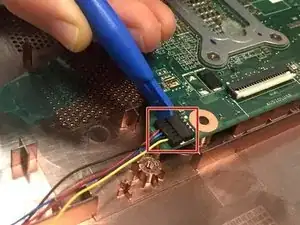

    • Disconnect the two black cable bundles using the plastic opening tool.

  12. KUPoI1yc3ZoVONgA
    KUPoI1yc3ZoVONgA
    1XHkqjt6VHmXyWxi
    pHWBKYFhAyaWiBvH

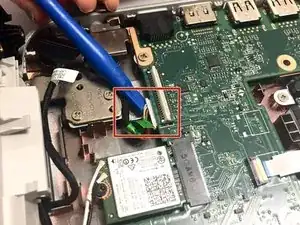

    • Disconnect the charging port wire bundle from the motherboard using the plastic opening tool.

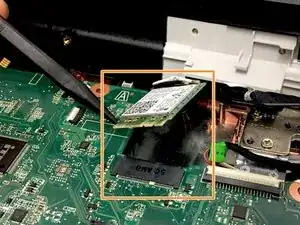

    • Disconnect the wireless card by pulling away from the black transistor using the spudger.

    • Remove the motherboard.

  13. AgErZDHG6cWkKSFh
    AgErZDHG6cWkKSFh
    xAHn251CdfnudVUQ
    faHLI2OemvtPEXFY

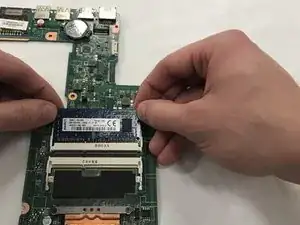

    • Use both fingers to push the tabs to the side and release the RAM.

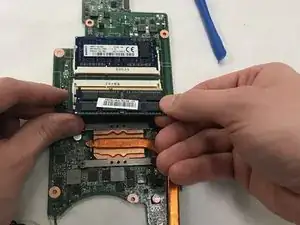

    • Remove the RAM chip by pulling away from the connector.

    • Repeat the procedure for the second RAM chip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
