Einleitung
This guide will assist in locating, removing, and replacing the hard drive of your HP Envy x360 15m-bp111dx. You may need to utilize this guide if your laptop is displaying a warning message concerning the hard drive or the computer does not boot up.
Be sure that your laptop is powered off, you're disconnected from the power adapter, and that the components have cooled before beginning this replacement.
For more troubleshooting information for the Hard Drive, follow the instructions on the troubleshooting page.
Werkzeuge
Ersatzteile
-
-
Remove the rubber feet to access the screws.
-
Using a Phillips #0 screwdriver, remove the four 7 mm screws.
-
Using a T5 Torx screwdriver, remove the three 5 mm screws.
-
-
-
Insert opening picks or an opening tool inside the edge of the chassis to separate the back panel from the rest of the computer.
-
Remove the back case.
-
-
-

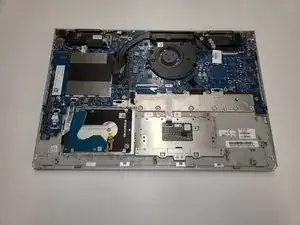

The hard drive bay is located in the lower left corner of the computer.
-
The hard drive will be covered by a black rubber sheath which can be removed by simply pulling it off of the hard drive (not pictured).
-
-
-

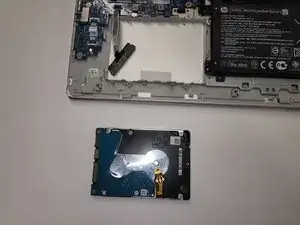

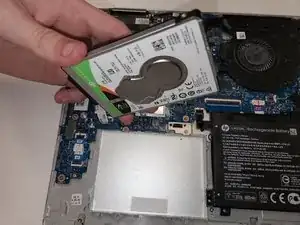

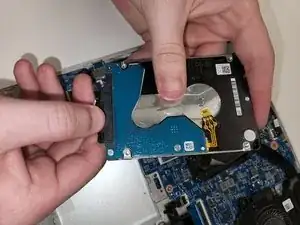

Pull the rubber casing away from the drive (not pictured here) and gently lift the hard drive out of the computer.
-

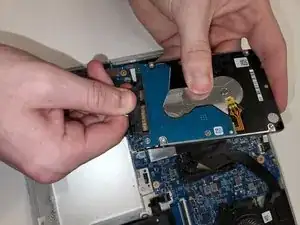

Unplug the drive from power by grabbing the SATA / power cable on the plastic edge and pulling it away from the drive.
-
To reassemble your device, follow these instructions in reverse order.
