Is the touchpad not working for your HP Envy x360 15m-bp111dx laptop? If so, follow this guide to get it fixed in just a few steps.
This guide will assist in locating, removing, and replacing the touchpad of your HP Envy x360 15m-bp111dx. You may need to utilize this guide if the touchpad has become unresponsive. Be sure to troubleshoot your HP Envy x360 15m-bp111dx before beginning this replacement.
Additionally, make sure that your laptop is powered off, it's unplugged from the power adapter, and that the components have cooled before replacing the touchpad.
-
-
Remove the rubber feet to access the screws.
-
Using a Phillips #0 screwdriver, remove the four 7 mm screws.
-
Using a T5 Torx screwdriver, remove the three 5 mm screws.
-
-
-
Insert opening picks or an opening tool inside the edge of the chassis to separate the back panel from the rest of the computer.
-
Remove the back case.
-
-
-

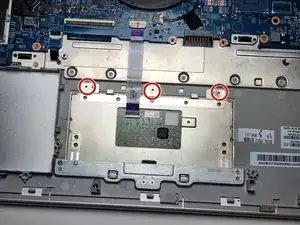

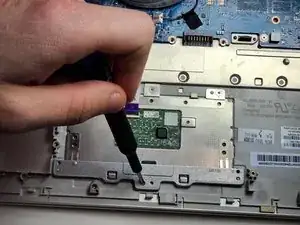

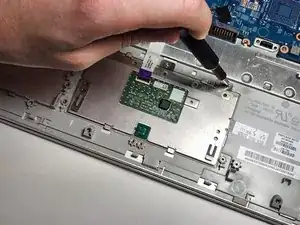

Use a Phillips screwdriver to remove the four 3.5 mm screws securing the bar on the touchpad.
-

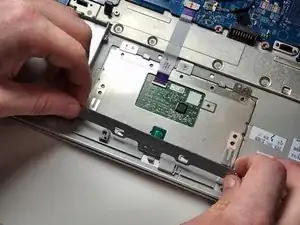

Remove the bar from the touchpad.
-
-
-

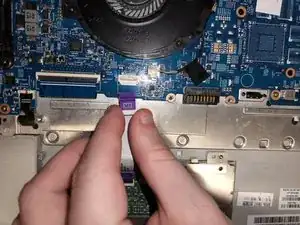

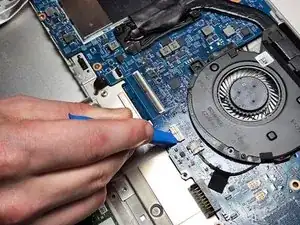

Flip the lock open on the ZIF connector using the opening tool to detach the ribbon from the motherboard.
-

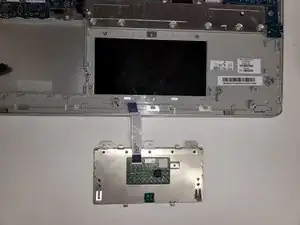

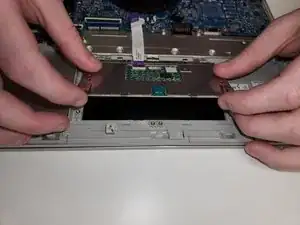

Gently remove the touchpad from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
