Einleitung

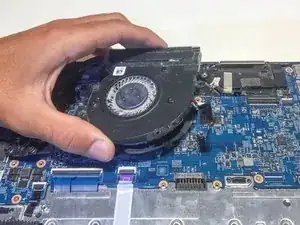

The cooling fan is a key component of a laptop. This component keeps the computer cool while operating. If the fan fails, the computer may overheat and damage components in the computer. This guide will show in-depth steps on how to safely remove a cooling fan from an HP Envy x360.
Werkzeuge
Ersatzteile
-
-

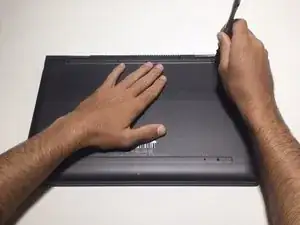

Remove the rubber strip along the top of the backside of the computer.
-

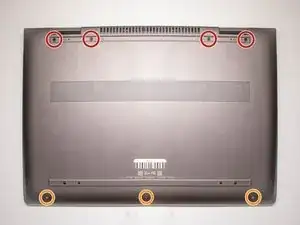

On the back panel of the device, remove the four (4) 2.5 mm screws at the top of the photo using a Phillips #0 screwdriver.
-
Unscrew the three (3) screws at the bottom of the photo using a T5 Torx screwdriver.
-
-
-

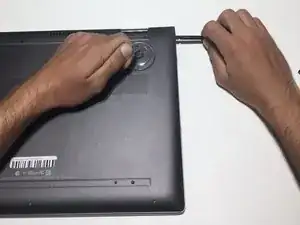

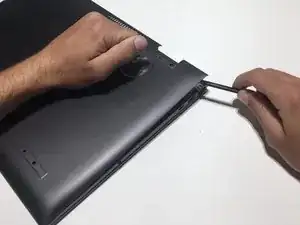

To remove the back cover, use the spudger to lift up on the edges of the cover.
-

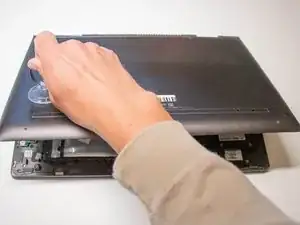

Use a suction cup to assist in lifting the back cover
-
-
-

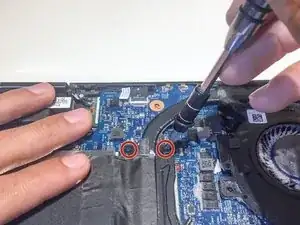

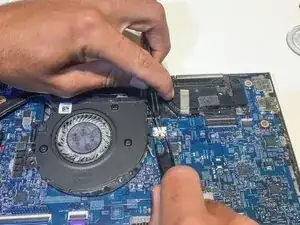

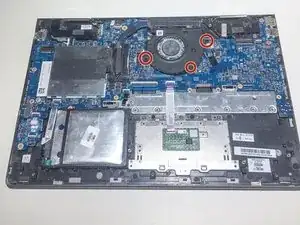

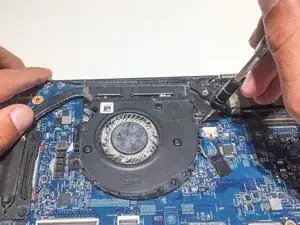

Using a Philips #0 screwdriver, remove the three 2 mm screws located around the cooling fan as shown in this picture.
-
To reassemble your device, follow these instructions in reverse order.
