This guide will demonstrate how to replace the battery in the HP Envy x360 15m-cn0011dx laptop.

The battery is the component in the computer to power on the device. If you don't have a battery then you can not turn your computer on.

A swollen battery has less power life compared to a new one. If your battery is swollen then this guide is for you. It will show how to replace a swollen battery.

Make sure your device is fully powered off before attempting this guide.

  1. 3TevCvmjaLQPdSLH
    • Flip the laptop over to the back side.

  2. Lh3XbFXgl4J5VxVo
    Lh3XbFXgl4J5VxVo
    OCSjxGfSaMSddbA4
    • Remove the six 5.6 mm screws from the back cover using a Phillips #00 screwdriver.

    • Remove the single 4.3 mm screw in the bottom middle section of the back cover using a T5 Torx screwdriver.

  3. hIOaBFWFxWxTBYdl
    • Lift the back cover off the laptop.

  4. 2vOwAZRFAMON1jyH
    2vOwAZRFAMON1jyH
    PVwLpK3TO4RnetfG
    XaxUMh4xvAwjmEmV

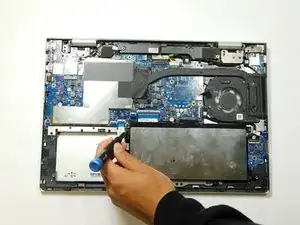

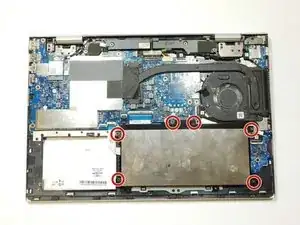

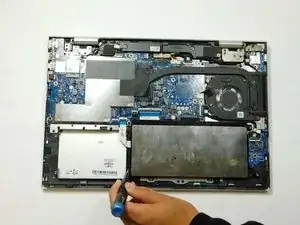

    • Remove the six 3.3 mm screws from the battery pack using a Phillips #00 screwdriver.

  5. DAbycZKbbnwHBclH

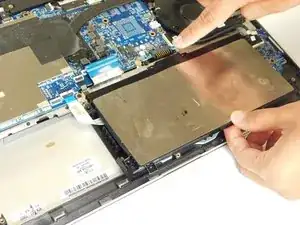

    • Lift the battery from the bottom of the laptop and and gently lift it up as you slowly unplug it from the connector on the top of the battery pack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
