HP Envy x360 15m-cn0011dx Wi-Fi Adapter Replacement

Geschrieben von: Skylar Moore
  • Kommentare: 0
HP Envy x360 15m-cn0011dx Wi-Fi Adapter Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

4 - 7 Minuten

Einleitung

This Guide will demonstrate how to replace the Wi-Fi card in an HP Envy x360 15m-cn0011dx laptop.

Make sure your device is fully powered of before attempting this guide.

  1. 3TevCvmjaLQPdSLH

    • Flip the laptop over to the back side.

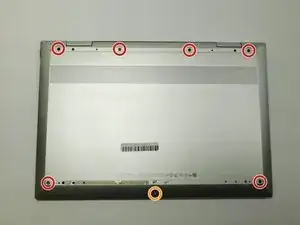

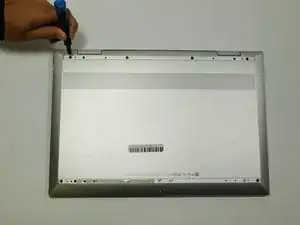

  2. Lh3XbFXgl4J5VxVo
    Lh3XbFXgl4J5VxVo
    OCSjxGfSaMSddbA4

    • Remove the six 5.6 mm screws from the back cover using a Phillips #00 screwdriver.

    • Remove the single 4.3 mm screw in the bottom middle section of the back cover using a T5 Torx screwdriver.

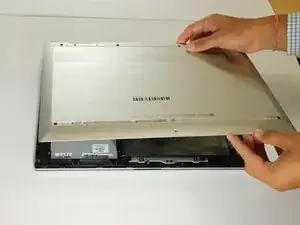

  3. hIOaBFWFxWxTBYdl

    • Lift the back cover off the laptop.

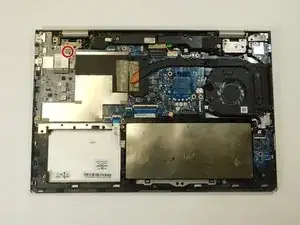

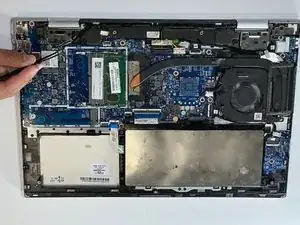

  4. apd4bKSBIe6Wth2g
    apd4bKSBIe6Wth2g
    lra6H12ipmY1RMlK

    • Disconnect the pins from the Wi-Fi adapter card using a pair of tweezers.

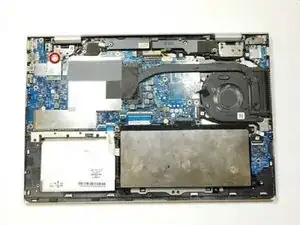

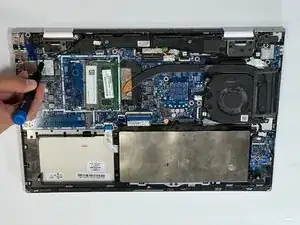

  5. gdwUcw2bekf5GIDe
    gdwUcw2bekf5GIDe
    dDZwXIupEJm2TLON

    • Remove the single 2.3 mm screw from the Wi-Fi card using a Phillips #00 screwdriver.

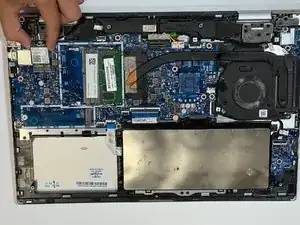

  6. WxiwFThY2chVALRT

    • Lift the adapter up and pull it out in an upward angle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
