If your HP Envy x360 m Convertible (Model 15m-cn0012dx) isn’t reading SD cards, use this guide to replace the SD card motherboard.
A faulty SD card reader will not even recognize that there is a card in the slot. It will not show up on the computer desktop screen.
Before starting, make sure all external connections are unplugged and the computer is turned off.
-
-
Set the laptop face down.
-

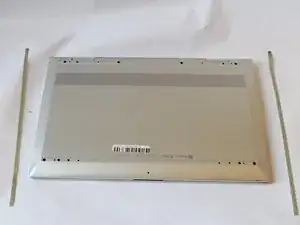

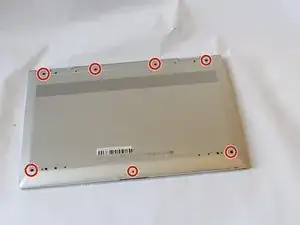

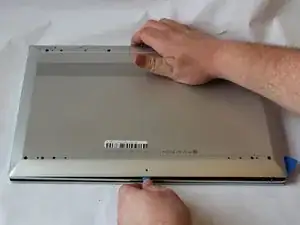

Peel back the grey screw guards, along the top and bottom edge of the back case. It may be helpful to use a spudger to get started.
-
-
-

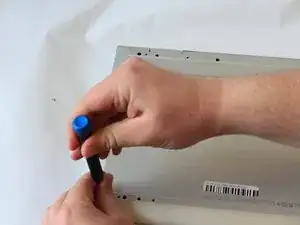

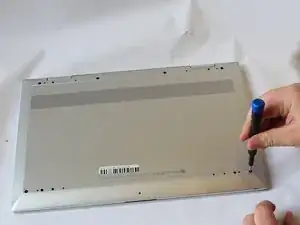

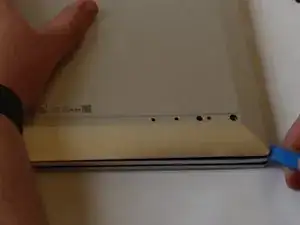

Pry open the back cover using the iFixit Opening Tool.
-
While using the tool, place a pick at each corner of the computer (be careful and do it slowly).
-

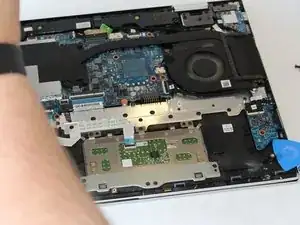

Once all the corners are slightly lifted, carefully pop off the back cover.
-
-
-

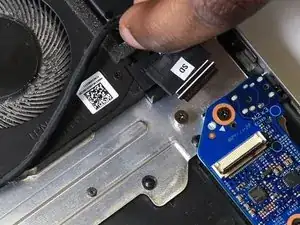

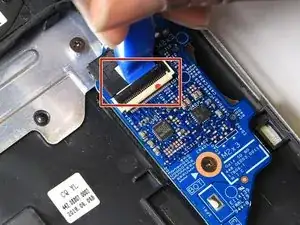

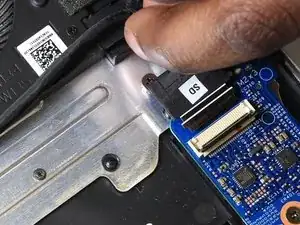

Use the iFixit opening tool to unlatch the ZIF connector with the cable labelled 'SD' from the daughterboard.
-
Slide out the interconnect ribbon cable.
-
-
-

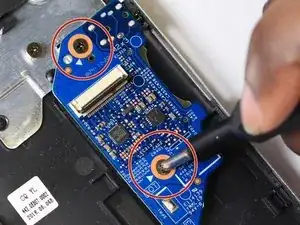

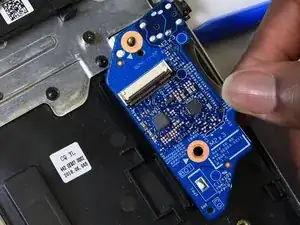

Using a Phillips #0 screwdriver, remove the two 4mm screws on holding down the SD card daughterboard.
-

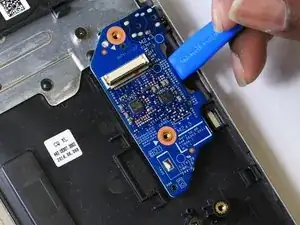

Remove the SD card daughterboard.
-
To reassemble your device, follow these instructions in reverse order.
