HP Envy x360 15m-cn0012dx Hard Drive Replacement

Geschrieben von: Grace Daleki
  • Kommentare: 0
HP Envy x360 15m-cn0012dx Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

25 Minuten

Einleitung

If you want to change out your for your HP Envy x360 m Convertible (Model 15m-cn0012dx), use this guide to replace the hard drive.

If you are running low on space, updating a hard drive with a larger drive can give you more space, and could also speed up your computer.

  1. UHV6eiwoVSmnCB2N
    UHV6eiwoVSmnCB2N
    2GwqpOKySLTZZVWV

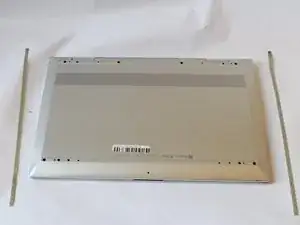

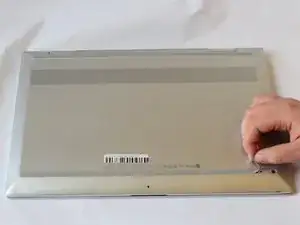

    • Make sure the computer is turned off, and remove all cables.

    • Set the laptop face down.

    • Peel back the grey screw guards, along the top and bottom edge of the back case. It may be helpful to use a spudger to get started.

    • Peel slowly to avoid tearing the rubber covers.

  2. GxcJLnfbZ5i2IQw6
    GxcJLnfbZ5i2IQw6
    GTWVaLQi6wgCdssv
    ufEqU2DIE54N6f5O

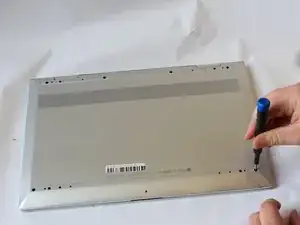

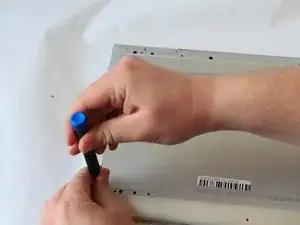

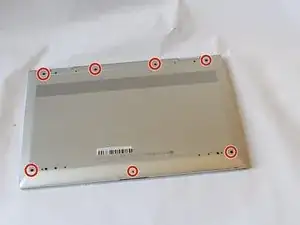

    • Using the Phillips #0 screwdriver, remove the seven 5mm screws from the back case.

  3. deYRTNshKSubABGC
    deYRTNshKSubABGC
    KCFqa2lBXdAa2hT6
    5l4CslfHrKwynnIF

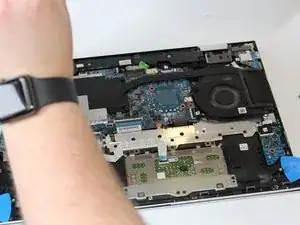

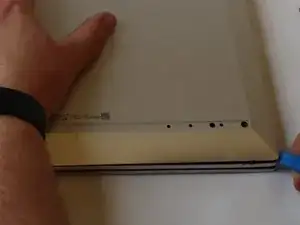

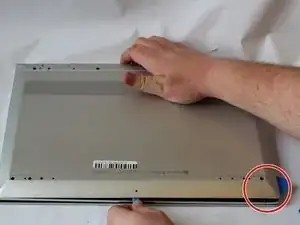

    • Pry open the back cover using the iFixit Opening Tool.

    • While using the tool, place a pick at each corner of the computer (be careful and do it slowly).

    • Once all the corners are slightly lifted, carefully pop off the back cover.

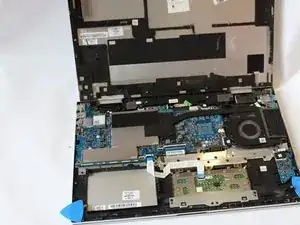

  4. DwxSo4EKRd4yIVyq
    DwxSo4EKRd4yIVyq
    5QdRQhHhwGMSBb42

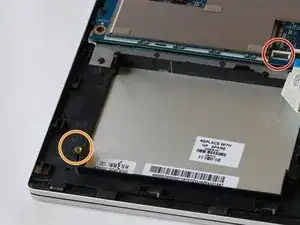

    • Use the Phillips #0 screwdriver to remove one screw from the bottom left corner of the laptop.

    • Use the iFixit opening tool to lift the latch and detach the connector to the motherboard.

    • Remove the hard drive.

    • When replacing the hard drive, you will likely have to transfer the SATA cable and hardware from your old drive to the new one before reinstalling.

Abschluss

To reassemble your device, follow these instructions in reverse order.
