Einleitung
The where you connect sound devices to the laptop. The USB is the main way to connect new devices to the laptop i.e. flash drive or mouse. This guide will show the proper removal of the laptop's USB port and audio jack.
-
-
Use the plastic opening tool to remove the gray rubber pads on the bottom of the laptop. For our device we only needed to remove the two at the top.
-
-
-
Use a Torx T5 screwdriver to remove the six 5.1 mm screws.
-

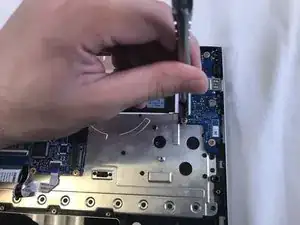

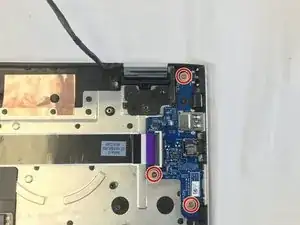

Use a JIS #1 screwdriver to remove the two 7.2mm screws.
-
-
-
Use a plastic opening tool to pry open the case. Go slowly around the edge. You will hear popping noises, such are due to popping open the small joints that keep the cover attached.
-
-
-

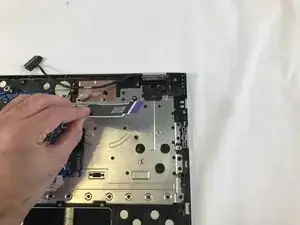

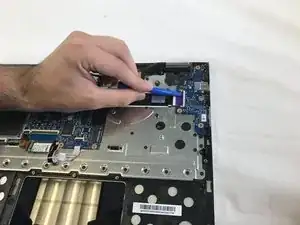

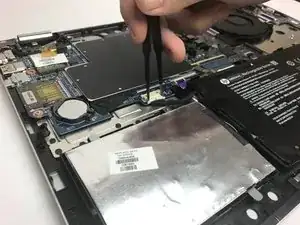

Use the plastic opening tool to open the security connector. then pull the ribbon cable to disconnect it from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
