HP Envy x360 m6-aq005dx Hard Drive Replacement

Geschrieben von: Matthew Martin
  • Kommentare: 0
HP Envy x360 m6-aq005dx Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

3 Minuten

Einleitung

The hard drive is the main storage unit of the laptop. It is the component that stores all of the data of the device. This guide will show the proper removal of the laptop's hard drive.

  1. IgfHOg1jqgWInLws
    IgfHOg1jqgWInLws
    neeGsuHsCbpJVsiG

    • Use the plastic opening tool to remove the gray rubber pads on the bottom of the laptop. For our device we only needed to remove the two at the top.

  2. FGx1VOQLPtVC1rDw
    FGx1VOQLPtVC1rDw
    HYdHiNQG3gyenjf6
    QhBhQDO1hu2EQHjL

    • Use a Torx T5 screwdriver to remove the six 5.1 mm screws.

    • Use a JIS #1 screwdriver to remove the two 7.2mm screws.

  3. cUEJIBHUmU5uQvVT

    • Use a plastic opening tool to pry open the case. Go slowly around the edge. You will hear popping noises, such are due to popping open the small joints that keep the cover attached.

  4. xrd4Txs2F2BMIVTG
    xrd4Txs2F2BMIVTG
    yAVZH1ZnF3SGmtgQ

    • Use a JIS #1 screwdriver to remove the six 4.7 mm screws.

  5. WaNDUASsASMBd5fV

    • Battery might cause a small electric shock.

    • Use tweezers to disconnect the battery from the motherboard.

  6. RRg6XJKZI24FDqti
    RRg6XJKZI24FDqti
    2AeoWP1yfIPpuJWo

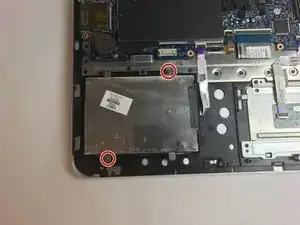

    • Use a JIS J1 bit to remove the two 4.6 mm screws.

  7. lYDGMCcjleKuSHwv
    lYDGMCcjleKuSHwv
    KZDTnWDuhGSV3fkE

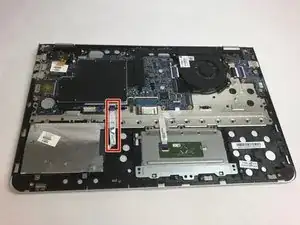

    • The red square is around the ribbon cable.

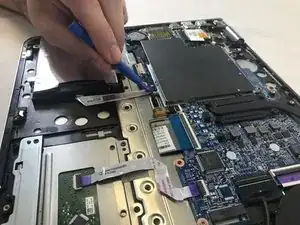

    • Use the plastic opening tool to open the black security connector. then pull the ribbon cable to disconnect it from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
