The power port is essential in recharging the computer's battery. This guide will explain how to properly remove and replace the power port component of the computer.

  1. IgfHOg1jqgWInLws
    IgfHOg1jqgWInLws
    neeGsuHsCbpJVsiG
    • Use the plastic opening tool to remove the gray rubber pads on the bottom of the laptop. For our device we only needed to remove the two at the top.

  2. FGx1VOQLPtVC1rDw
    FGx1VOQLPtVC1rDw
    HYdHiNQG3gyenjf6
    QhBhQDO1hu2EQHjL
    • Use a Torx T5 screwdriver to remove the six 5.1 mm screws.

    • Use a JIS #1 screwdriver to remove the two 7.2mm screws.

  3. cUEJIBHUmU5uQvVT
    • Use a plastic opening tool to pry open the case. Go slowly around the edge. You will hear popping noises, such are due to popping open the small joints that keep the cover attached.

  4. xrd4Txs2F2BMIVTG
    xrd4Txs2F2BMIVTG
    yAVZH1ZnF3SGmtgQ

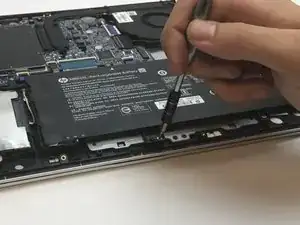

    • Use a JIS #1 screwdriver to remove the six 4.7 mm screws.

  5. WaNDUASsASMBd5fV
    • Battery might cause a small electric shock.

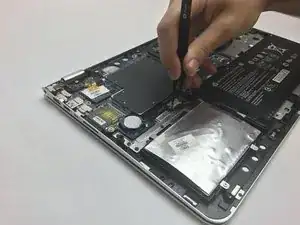

    • Use tweezers to disconnect the battery from the motherboard.

  6. xBuKSrsxMwdoWPNt

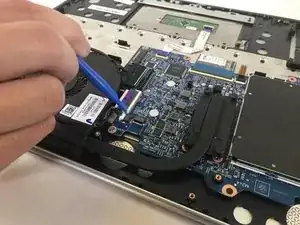

    • Use the plastic opening tool to disconnect the power cable from the fan.

  7. CQTlfek3262mv5bn
    CQTlfek3262mv5bn
    jL3qNMdtHeyofnJv

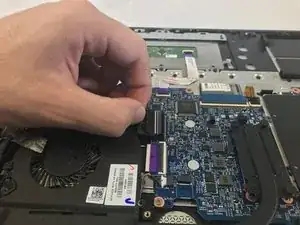

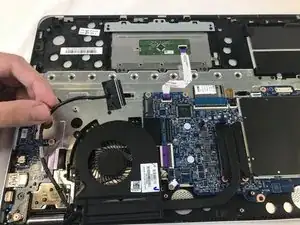

    • Use your fingers to lightly pull the cable and disconnect it from the motherboard.

  8. ZNbQyfpNHgDWtH65
    ZNbQyfpNHgDWtH65
    ZEe5hk6OQWfjOtgk
    PISQQ1KVr1FqSUOO

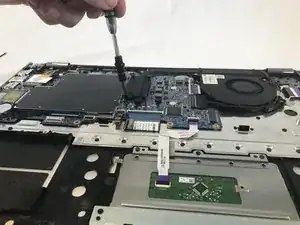

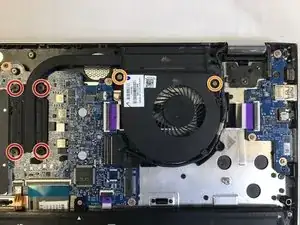

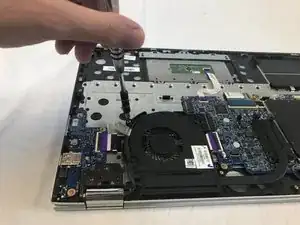

    • Use a Phillips #0 screwdriver to loosen the four 6.5 mm screws.

    • Do not fully remove the screws, just enough to be unattached from the motherboard.

    • Use a JIS #1 screwdriver to remove the two 7.7 mm screws.

  9. PQUkquoeUtKVZND4
    PQUkquoeUtKVZND4
    gbtHHAxlOppLT1oZ

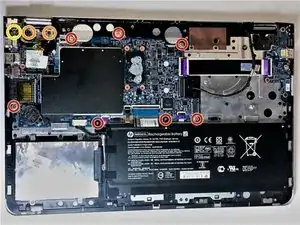

    • Use a JIS #1 screwdriver to remove the 4.7mm screws from the indicated positions.

    • Use the JIS #1 screwdriver to remove the 7.7mm screws from the indicated positions.

    • Use the JIS #1 screwdriver to remove the 4.4mm screws from the indicated positions.

  10. EamBXC6FTGK26WDH

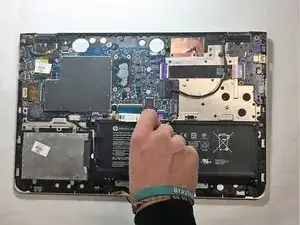

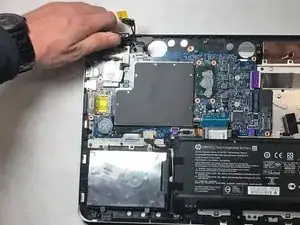

    • Using your hand, lift the screen hinge located in the top left corner. This will allow for easier removal of the motherboard.

  11. jT6MM1YXv2eDwb1k
    jT6MM1YXv2eDwb1k
    NEAEoacKQBmSKFKb
    C2OnLR1oclnHiOQT

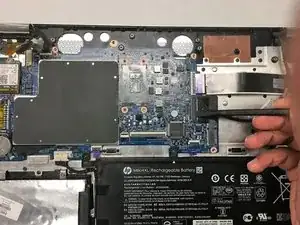

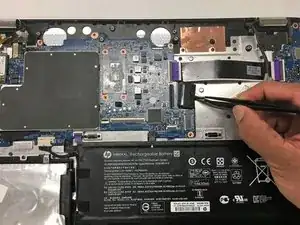

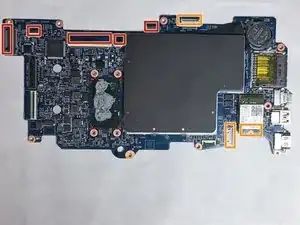

    • Flip the indicated colored latches with iFixit Opening Tools, then use tweezers to release the cables attached to the motherboard by gently pulling backward.

    • Use the pointed tweezer to release the plug-in connectors my gently gripping the plug and pulling backwards.

  12. 2dmEtKZTXBSMLRvL
    2dmEtKZTXBSMLRvL
    aHGERSKP5yfo5Jin
    kQjFb3PEELm55icP

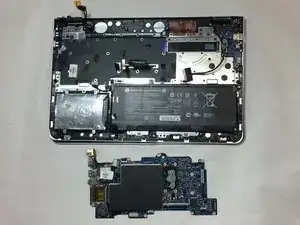

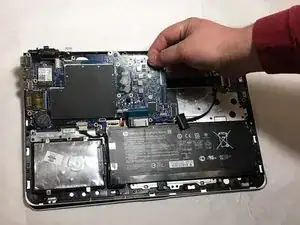

    • Using your hand, lift and pull the motherboard from inside your computer.

  13. INC2IqsbxFeRVRwL
    INC2IqsbxFeRVRwL
    JFITiI5j5A2pOYcP

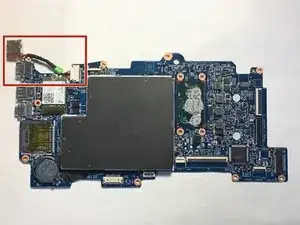

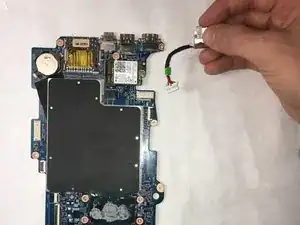

    • Using your fingers, detach the power port from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
