HP Envy x360 m6-aq103dx CPU Fan Replacement

Geschrieben von: Jordan Eremeyeff
  • Kommentare: 6
HP Envy x360 m6-aq103dx CPU Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 Minuten

Einleitung

Is the CPU fan in your HP Envy x360 m6-aq103dx not functioning correctly? Follow this easy replacement guide to open up your computer and replace the CPU fan.

  1. PEtHivMAklACJTHZ
    PEtHivMAklACJTHZ
    JKaeeNlyIfNFjjVj
    spupGbTb6Rihpb6Y

    • Flip the laptop over to expose the underside.

    • Remove the two grip pads with blue plastic opening tool by inserting the tool between the laptop and the pads and slowly lifting up.

    • The grip pads are tacky, remove slowly to avoid separating the adhesive.

  2. WEMrMCpEI1iSt4Sm

    • Remove the two 8 mm Phillips Head screws that were under the grip pads using a Phillip's Head 1 Screwdriver.

  3. LWdwUjUJTR5UYSWT

    • Remove the six 5 mm Torx screws using a T5 Torx Screwdriver.

  4. mYwlgmKVDPXpu4nB
    mYwlgmKVDPXpu4nB
    jqMOrkUW6E6GuIBX
    NnK2nVGb44jMpLg4

    • Use the nylon spudger to pop off the bottom cover by inserting it into the heat vent and twisting to the left or right.

    • You may hear a slight clicking or popping, but that is normal.

    The case is secured by plastic hooks at 1” intervals. Use the nylon spudger and the opening tool to lever around the rim of the case. Start at the edge of the heat vent and work around the rim. Each plastic fastener will make a popping noise as they release.

    David Shorr -

  5. ATaLtNYWBVM5bt4S
    ATaLtNYWBVM5bt4S
    tDddVdrsk5ZgsIWP
    QpI2rJJ2rpaNmVop

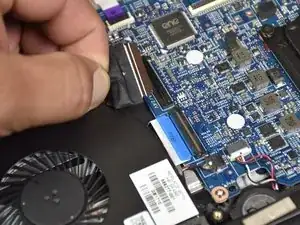

    • Put on the anti-static wristband first

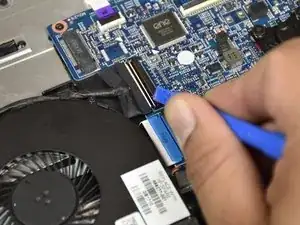

    • Disconnect the port of the fan by flipping the black tab with the small blue plastic opening tool.

    • Remove the cable from the connector.

  6. Flk11FMIaJiBcgyp
    Flk11FMIaJiBcgyp
    WH3B621yixHmDuUv
    Mu1DnnsNhOjbC3Ik

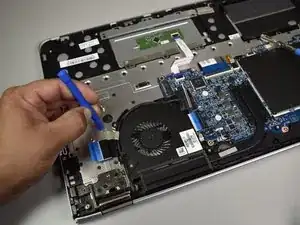

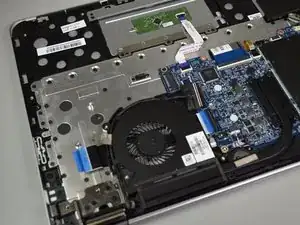

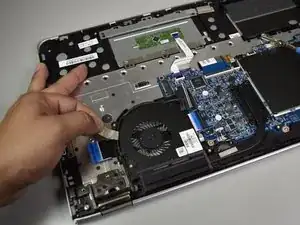

    • Peel back a little bit of the grey tape connected to the round cable with the big blue opening tool.

    • Using your fingers, peel the tape off of the body of the computer.

    • Peel slowly to avoid separating the adhesive.

  7. foGJqVQJDnIg6hfS
    foGJqVQJDnIg6hfS
    gAOOAs5yJ5eeo4dM

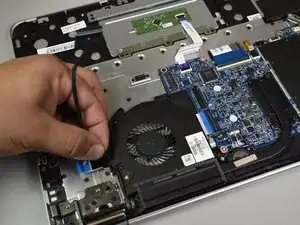

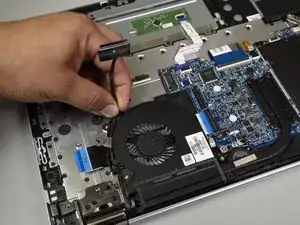

    • Remove the black cable from the fan by unclicking it from the plastic body of the fan with your fingers and move it out of the area.

    • There will be clicking sounds when the black cable is removed.

  8. KRPgN4HmSHdacWZY
    KRPgN4HmSHdacWZY
    byZrJHfuViJUcrGq
    tWW4qrW6HT12vjDS

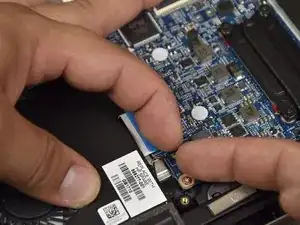

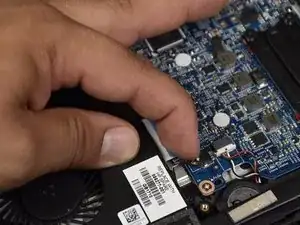

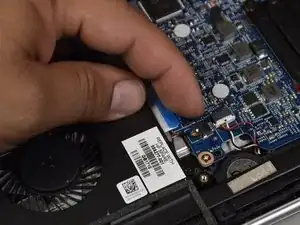

    • Disconnect the port with the red yellow and blue wires by dislodging the wires with your fingers.

  9. QEVRrrnhqeoi5jSU

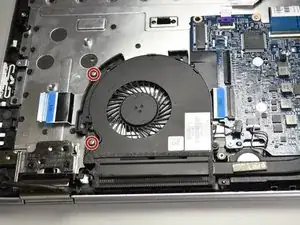

    • Remove the two 4.5mm Phillips #1 screws.

  10. unGBGB1VrsbPFWIn

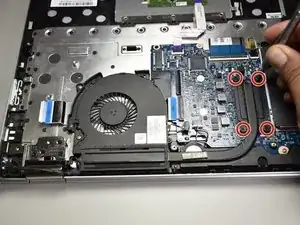

    • Loosen the four black screws by the curved heat sink with a Phillips head 1 screwdriver.

    • These screws do not come off.

  11. ZxZunooTYjOZ1EDP
    ZxZunooTYjOZ1EDP
    Ag5Q6XPEZAAwLAw2
    dZXmLNPgDVXpkWqc

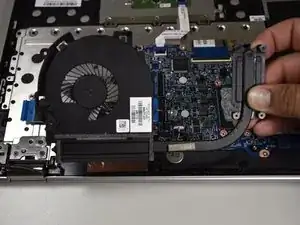

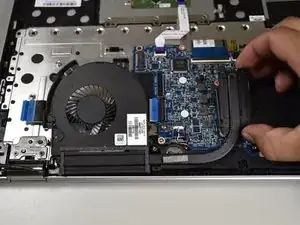

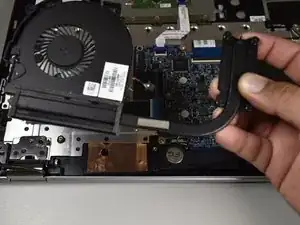

    • Lift the CPU fan out with your hand.

    Would you recommend replacing just the fan or the fan and the other part as well (the L shaped thing attached to it)? I bought just the fan, but I'm afraid that's not enough to fix it.

    Caleb Robinson -

    Hi, I have replaced fan in my x360 but now the screen is blank, works on external. I’m wondering if I’ve damaged the screen ribbon cable or inserted it incorrectly! Can you tell me if the contacts should face up or down on the connector cable? Difficult to see on photos and foolishly didn’t note when I removed!

    Geoffrey Cann -

Abschluss

To reassemble your device, follow these instructions in reverse order.
