HP Envy x360 m6-aq103dx Display Replacement

Geschrieben von: Christopher Martinez

Kommentare: 12

HP Envy x360 m6-aq103dx Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

If your display has dark spots, non responsive to touches, only showing black, and needs to be replaced. Then this is the guide for you. In order to remove the display, you will need the blue opening tool and the suction cup.

Werkzeuge

Ersatzteile

HP Envy 15 Display

Schritt 1

Flip the laptop over to expose the underside.
Remove the two grip pads with blue plastic opening tool by inserting the tool between the laptop and the pads and slowly lifting up.
The grip pads are tacky, remove slowly to avoid separating the adhesive.

Schritt 2

Remove the two 8 mm Phillips Head screws that were under the grip pads using a Phillip's Head 1 Screwdriver.

Schritt 3

Remove the six 5 mm Torx screws using a T5 Torx Screwdriver.

Schritt 4

Use the nylon spudger to pop off the bottom cover by inserting it into the heat vent and twisting to the left or right.
You may hear a slight clicking or popping, but that is normal.

The case is secured by plastic hooks at 1” intervals. Use the nylon spudger and the opening tool to lever around the rim of the case. Start at the edge of the heat vent and work around the rim. Each plastic fastener will make a popping noise as they release.

David Shorr - 20/04/21

Schritt 5

Use the Phillips Head 1 Screwdriver to remove the six 4 mm screws.

Schritt 6

Disconnect the battery port from the motherboard by gently lifting it on both sides with the plastic opening tool.
Lift up the port with the tool.

Backup battery is a CR2032 Lithium button cell. Might as well replace it while you’re in there…

David Shorr - 20/04/21

Schritt 7

Lift the battery out of the laptop with your hands.

After the battery is replaced, snap the case back together. Work around the rim from the front edge toward the heat vent. Squeeze firmly and make sure each plastic catch is engaged. Use the nylon spudger as needed to make sure each catch is closed before replacing screws.

David Shorr - 20/04/21

Schritt 8

Click the back cover on so none of the internal components are damaged during the following steps.
Open the display, so it is flat and the screen is facing up.

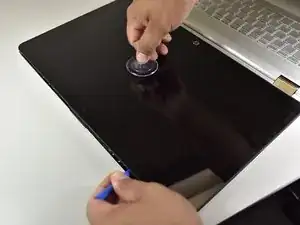

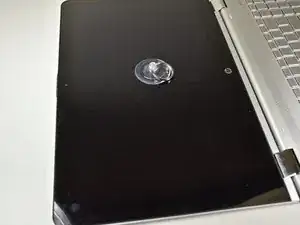

Put the suction cup in the middle of the screen.

Schritt 9

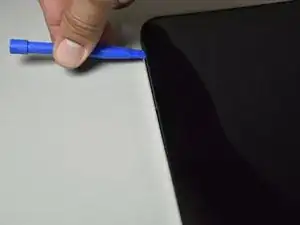

Wedge the small plastic opening tool between the frame and the screen and pry it open by lifting up.

Schritt 10

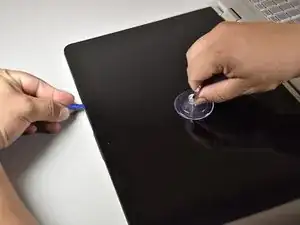

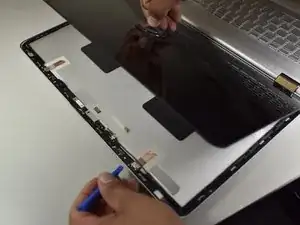

Slide the tool around the edge of the frame while pulling on the suction cup.
Popping sounds are ok.

Schritt 11

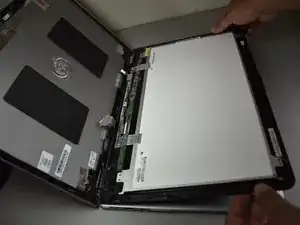

Take the suction cup off before laying the screen on the keyboard.

Schritt 12

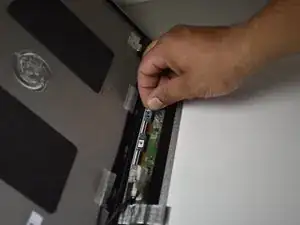

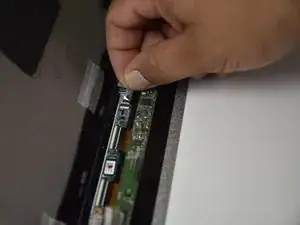

Remove the grey tape covering the wires by pulling on the tab slowly (located at the bottom of the display.
Detach the grey tape and the clear tape by wedging the small blue opening tool under the tape enough to raise a corner and pull the tape off with your hand.
Remove the tape slowly to avoid separating the adhesive.
Do this for both pieces of tape that cover wires.

Schritt 13

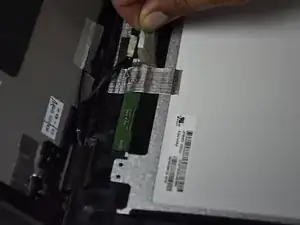

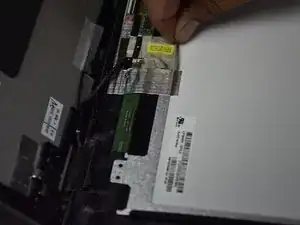

For the round cable underneath the smaller of the two pieces of tape, remove the cable by sliding it backwards.

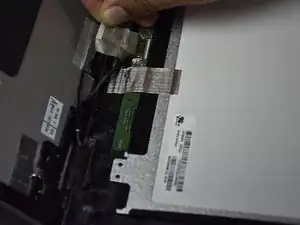

Remove the other cable by pulling on the tape downwards and backwards.

Schritt 14

Lift the screen up with your hands.

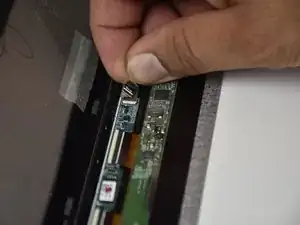

Can you please add the additional steps along with photos, that are required when the new screen doesn’t include the two little circuit boards at the bottom of the screen that needs to be transferred to the new screen which includes peeling up additional tape and disconnecting + reconnecting the two screen cable connectors?

steve - 08/11/19

Abschluss

To reassemble your device, follow these instructions in reverse order.
