Are you unhappy with the performance of your HP Envy x360 m6-aq103dx? If so, here is the guide to replace your motherboard. With just a few tools, you can replace your HP Envy x360 m6-aq103dx's motherboard today.

  1. PEtHivMAklACJTHZ
    PEtHivMAklACJTHZ
    JKaeeNlyIfNFjjVj
    spupGbTb6Rihpb6Y
    • Flip the laptop over to expose the underside.

    • Remove the two grip pads with blue plastic opening tool by inserting the tool between the laptop and the pads and slowly lifting up.

    • The grip pads are tacky, remove slowly to avoid separating the adhesive.

  2. WEMrMCpEI1iSt4Sm
    • Remove the two 8 mm Phillips Head screws that were under the grip pads using a Phillip's Head 1 Screwdriver.

  3. LWdwUjUJTR5UYSWT
    • Remove the six 5 mm Torx screws using a T5 Torx Screwdriver.

  4. mYwlgmKVDPXpu4nB
    mYwlgmKVDPXpu4nB
    jqMOrkUW6E6GuIBX
    NnK2nVGb44jMpLg4
    • Use the nylon spudger to pop off the bottom cover by inserting it into the heat vent and twisting to the left or right.

    • You may hear a slight clicking or popping, but that is normal.

    The case is secured by plastic hooks at 1” intervals. Use the nylon spudger and the opening tool to lever around the rim of the case. Start at the edge of the heat vent and work around the rim. Each plastic fastener will make a popping noise as they release.

    David Shorr -

  5. TfDqK2uCoSvnJFFm
    TfDqK2uCoSvnJFFm
    sarbsQJlBvRH4fQA
    • Use the Phillips Head 1 Screwdriver to remove the six 4 mm screws.

  6. lMZHKXpJBjBp5KMc
    lMZHKXpJBjBp5KMc
    VcdCeAxq3KNPbMi1
    EAgPZKerLf6A3g2s
    • Disconnect the battery port from the motherboard by gently lifting it on both sides with the plastic opening tool.

    • Lift up the port with the tool.

    Backup battery is a CR2032 Lithium button cell. Might as well replace it while you’re in there…

    David Shorr -

  7. qC4mLokSZqIYHsQQ
    qC4mLokSZqIYHsQQ
    Tb2iZUtv2C3nQh3k
    RPf6GJspSLiMVKaJ
    • Lift the battery out of the laptop with your hands.

    After the battery is replaced, snap the case back together. Work around the rim from the front edge toward the heat vent. Squeeze firmly and make sure each plastic catch is engaged. Use the nylon spudger as needed to make sure each catch is closed before replacing screws.

    David Shorr -

  8. JKbpsXqOZFpMFLQy
    JKbpsXqOZFpMFLQy
    G31eUVDjgA4OHIwn
    • Make sure you are wearing an anti-static wrist strap.

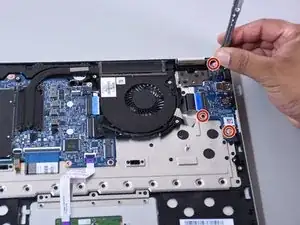

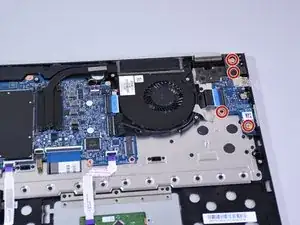

    • Remove the four screws from the blue board that contains the headphone jack using the Phillips head 1 screwdriver (one 4 mm black screw, one 3 mm black screw, and two 4.5 mm silver screws).

  9. 1WFyYZ5ROrF5ZpYp
    1WFyYZ5ROrF5ZpYp
    Lq1eZVDC3XPkIJLr
    WMXT1VsoII1RmWOE

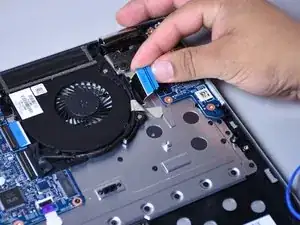

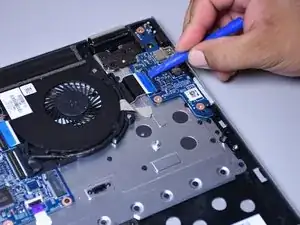

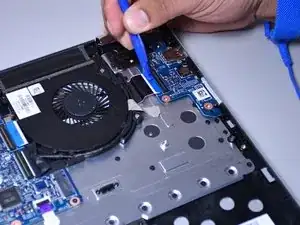

    • Insert the plastic opening tool underneath the connector on the black flexible flat cable with the blue plastic stripe.

    • Lift the opening tool to open the connector.

    • Use your fingers to slide the ribbon cable out of the connector.

  10. rABvLPuyWDvBxFqG
    rABvLPuyWDvBxFqG
    Up2qZUZWMIwMi1y5
    kdOeeo4JfU2BIQaw

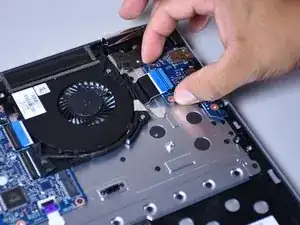

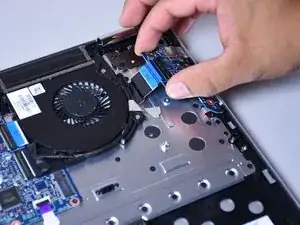

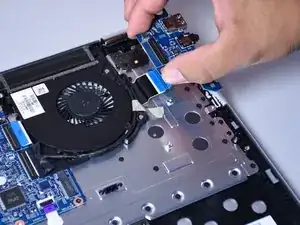

    • Hold the left side of the board between your fingers.

    • Lift the edge upwards enough to clear the other components in the way.

    • Be gentle when lifting to avoid breaking the board.

    • Slide and rotate to lift the board out of the designated slot for the board.

    • You may have to wiggle the board back and forth, and up and down, to remove the board.

  11. tRpInrDUDqXv6vFb
    tRpInrDUDqXv6vFb
    NvGl1aAnffxEfl4j
    hFyLeRrCIKPupIt1
    • Remove the two antenna cables connected to the wireless module by wedging the small plastic opening tool between the cables and the wireless module and lifting up.

  12. SZ4m3jleLKxbY1gZ
    • Remove the 3.5 mm Phillips Head screw with the Phillip Head 1 screwdriver.

  13. HxPfYBS3KPUYmf5Z
    HxPfYBS3KPUYmf5Z
    nBXXiMQUmXhugRKg
    eHN4jdRrQBXmPQNo
    • Slide the wireless module towards the back of the computer to remove it.

    what grapchics card can i replace ot with?

    George Thomas -

  14. sT4mbnqx5F2redHP
    sT4mbnqx5F2redHP
    TORt5O55KonKaYux
    Df1x1aryLdDExkN5
    • Disconnect the ribbon cable with the purple tag by flipping the black tab with the plastic opening tool.

    • Disconnect the ribbon cable by gently pulling it away from the connector with your fingers.

  15. 1FoX1Ztk12VQ2rUu
    1FoX1Ztk12VQ2rUu
    1W6reSJQHvAKf3C6
    YClgFMIiK5XOuW1k
    • Remove the two Phillips head screws (5 mm) using the Phillip's head #1 screwdriver.

    • Use your hands to lift the hard drive up and remove it.

  16. RcsosPMBGh2F3JqK
    RcsosPMBGh2F3JqK
    GokOOpgLSIHccAI5
    • Make sure you are wearing an anti-static wrist strap.

    • Remove the ram’s metal cover with your hand.

  17. fa4pNjEri6NAnyGj
    fa4pNjEri6NAnyGj
    vqRH2WuMmATtUfIT
    T6cYWhtrD6FZDAZj
    • Pull the two outer pins on either side of the ram chip outward with your hands.

    • The ram chips should pop up.

    • Do this for both chips.

  18. iYNsp2kmMiruasQX
    iYNsp2kmMiruasQX
    pMMel5lgsSX23Quo
    CWZBkKx13inKabnS
    • Remove the chips one at a time, by sliding them towards the side of the computer they are pointing towards.

  19. lLoaGjhw1wVcNE3p
    lLoaGjhw1wVcNE3p
    r4qIotcRZivD13AE
    UOGwpHxfQ1XOGsZg

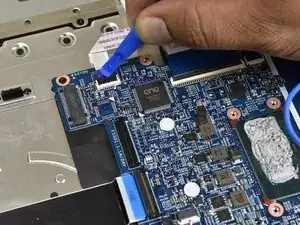

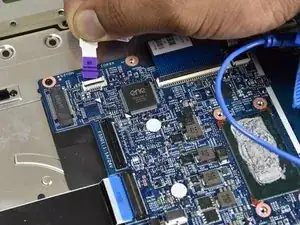

    • Use the small plastic opening tool to disconnect the port attached to the white ribbon cable with purple tips.

    • Press the tool to the top of the tip of the cable and pull it outwards.

    • Press the tool to the side of the tip of the cable and slide it outwards.

    • Use your hand to lift the cable up and out of the way.

  20. lH4StePDMMdkkVPQ
    lH4StePDMMdkkVPQ
    QEX6KxIbUwIABvEN
    brpYZDsryHtnCwNm

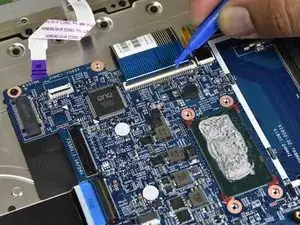

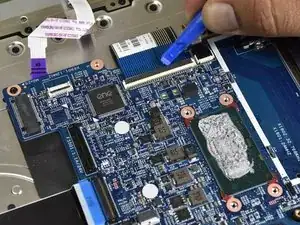

    • Use the small plastic opening tool to disconnect the port attached to the blue ribbon cable with a black stripe.

    • Press the tool to the top of the tip of the cable and pull it outwards.

    • Press the tool to the side of the tip of the cable and slide it outwards.

    • Use your hand to lift the cable up and out of the way.

  21. kFkM3iQEUpSv2fZG
    kFkM3iQEUpSv2fZG
    Yl2fQfLLEEA1n5Re
    n3QQNUJKXUDJZjHA

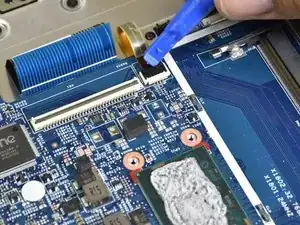

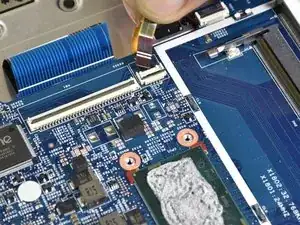

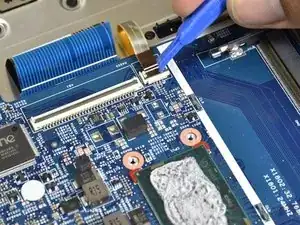

    • Use the small plastic opening tool to disconnect the port attached to the golden brown ribbon cable with the yellow underside.

    • Press the tool to the top of the tip of the cable and pull it outwards.

    • Press the tool to the side of the tip of the cable and slide it outwards.

    • Use your hand to lift the cable up and out of the way.

  22. 4XGcuPvmUfg1lOyL
    4XGcuPvmUfg1lOyL
    SokvhuRjdXFm1nqU
    BXQspxhVUHK2IGhX

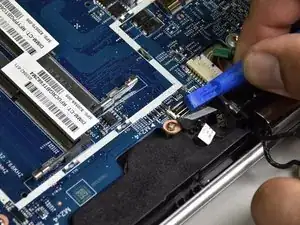

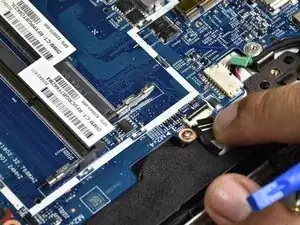

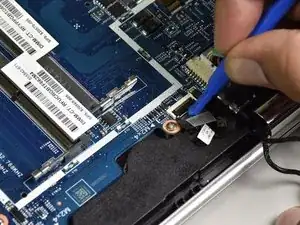

    • Remove the clear tape near the charging port with your hand in order to flip the tab up with the small plastic opening tool.

  23. Nbfe6ALwoJ5Brene
    Nbfe6ALwoJ5Brene
    qCBeHPGmaOTQirjw

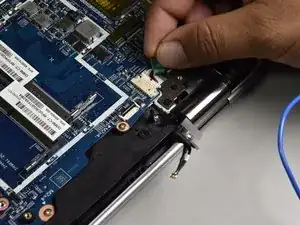

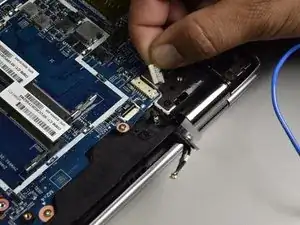

    • Remove the wire with the green plastic tape from between the motherboard and the black hinge using your hand by puling it backwards.

  24. J1JPxgOheW4uvjO2
    J1JPxgOheW4uvjO2
    C1qGukF5rrpCnX1f
    yhINMm2tuUpg5JXS

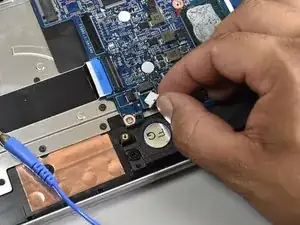

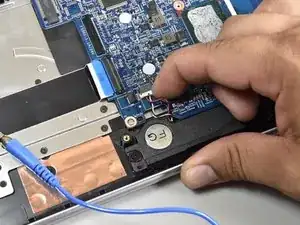

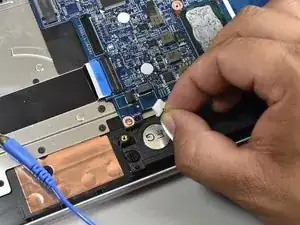

    • Remove the wire by the blue ribbon cable using your hands.

  25. hJHuUYYhleK3KVyg

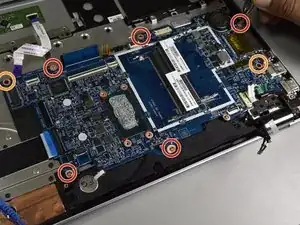

    • Using the Phillips head #1 screwdriver remove the five 4.5 mm grey screws.

    • Using the Phillips head #1 screwdriver remove the two 2.5 mm black screws.

  26. hbwwLcesE1Gs45La
    hbwwLcesE1Gs45La
    oFDZIHpOTewRjBVc
    qZFnGya2FOFSUobB

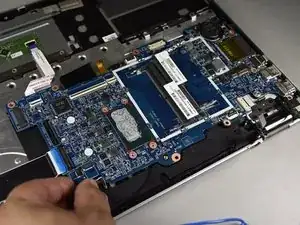

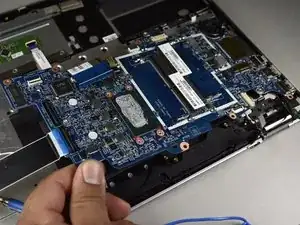

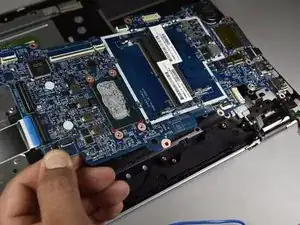

    • Using your hand, gently lift up the motherboard to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
