HP Envy x360 m6-aq103dx Wireless Module Replacement

Geschrieben von: Joey Chen
  • Kommentare: 5
HP Envy x360 m6-aq103dx Wireless Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 Minuten

Einleitung

This guide is for the replacement of the Wireless Module. You will need a small plastic opening tool and a standard Phillips Head 1 Screwdriver.

  1. PEtHivMAklACJTHZ
    PEtHivMAklACJTHZ
    JKaeeNlyIfNFjjVj
    spupGbTb6Rihpb6Y

    • Flip the laptop over to expose the underside.

    • Remove the two grip pads with blue plastic opening tool by inserting the tool between the laptop and the pads and slowly lifting up.

    • The grip pads are tacky, remove slowly to avoid separating the adhesive.

  2. WEMrMCpEI1iSt4Sm

    • Remove the two 8 mm Phillips Head screws that were under the grip pads using a Phillip's Head 1 Screwdriver.

  3. LWdwUjUJTR5UYSWT

    • Remove the six 5 mm Torx screws using a T5 Torx Screwdriver.

  4. mYwlgmKVDPXpu4nB
    mYwlgmKVDPXpu4nB
    jqMOrkUW6E6GuIBX
    NnK2nVGb44jMpLg4

    • Use the nylon spudger to pop off the bottom cover by inserting it into the heat vent and twisting to the left or right.

    • You may hear a slight clicking or popping, but that is normal.

    The case is secured by plastic hooks at 1” intervals. Use the nylon spudger and the opening tool to lever around the rim of the case. Start at the edge of the heat vent and work around the rim. Each plastic fastener will make a popping noise as they release.

    David Shorr -

  5. TfDqK2uCoSvnJFFm
    TfDqK2uCoSvnJFFm
    sarbsQJlBvRH4fQA

    • Use the Phillips Head 1 Screwdriver to remove the six 4 mm screws.

  6. lMZHKXpJBjBp5KMc
    lMZHKXpJBjBp5KMc
    VcdCeAxq3KNPbMi1
    EAgPZKerLf6A3g2s

    • Disconnect the battery port from the motherboard by gently lifting it on both sides with the plastic opening tool.

    • Lift up the port with the tool.

    Backup battery is a CR2032 Lithium button cell. Might as well replace it while you’re in there…

    David Shorr -

  7. qC4mLokSZqIYHsQQ
    qC4mLokSZqIYHsQQ
    Tb2iZUtv2C3nQh3k
    RPf6GJspSLiMVKaJ

    • Lift the battery out of the laptop with your hands.

    After the battery is replaced, snap the case back together. Work around the rim from the front edge toward the heat vent. Squeeze firmly and make sure each plastic catch is engaged. Use the nylon spudger as needed to make sure each catch is closed before replacing screws.

    David Shorr -

  8. tRpInrDUDqXv6vFb
    tRpInrDUDqXv6vFb
    NvGl1aAnffxEfl4j
    hFyLeRrCIKPupIt1

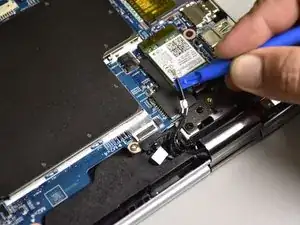

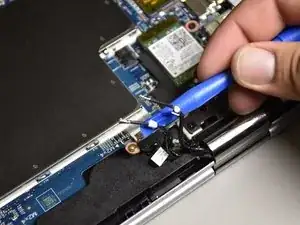

    • Remove the two antenna cables connected to the wireless module by wedging the small plastic opening tool between the cables and the wireless module and lifting up.

  9. SZ4m3jleLKxbY1gZ

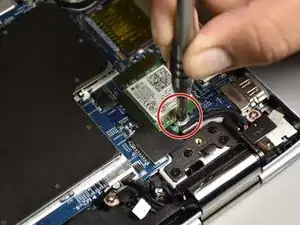

    • Remove the 3.5 mm Phillips Head screw with the Phillip Head 1 screwdriver.

  10. HxPfYBS3KPUYmf5Z
    HxPfYBS3KPUYmf5Z
    nBXXiMQUmXhugRKg
    eHN4jdRrQBXmPQNo

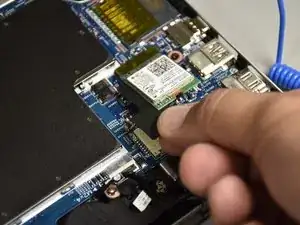

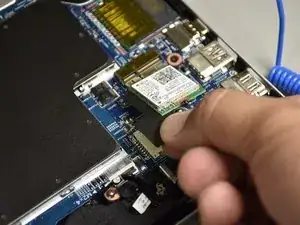

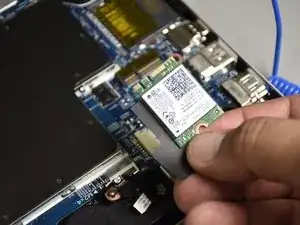

    • Slide the wireless module towards the back of the computer to remove it.

    what grapchics card can i replace ot with?

    George Thomas -

Abschluss

To reassemble your device, follow these instructions in reverse order.
