HP Envy x360 m6-aq105dx Battery Replacement

Geschrieben von: Ryan Blazier
  • Kommentare: 1
HP Envy x360 m6-aq105dx Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

25 - 30 Minuten

Einleitung

A faulty battery results in no power transfer to the laptop, meaning it wont turn on or charge. This guide will instruct on how to replace the battery to your HP Envy.

  1. UAOfssMYFBf5Dgj2

    • Ground yourself by touching a metal object or surface. This prevents electrical damage to other components in the laptop.

    • Remove the two 7.8 mm screws using the Phillips #0 screwdriver.

    • Remove the six 5.2 mm screws using the Torx T5 screwdriver.

  2. FfEbPduWgOfG4gPA

    • Light to moderate force is required to remove the back cover.

    • Insert the Jimmy in between the frame of the laptop and the removable back cover and remove the back cover from the device.

    what are the size of m6-aq105dx bottom cover scews

    Ume -

  3. xXi11OSjNm3ED42p

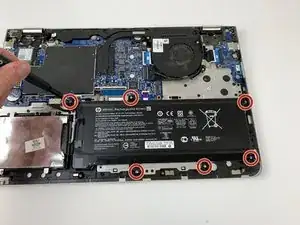

    • Attach the grounding bracelet's clip to the frame of the laptop, then put on the grounding bracelet.

    • Remove the six 4.6mm screws securing the battery using the Phillips #0 screwdriver.

  4. HgB1lQNTgX3eI1XY

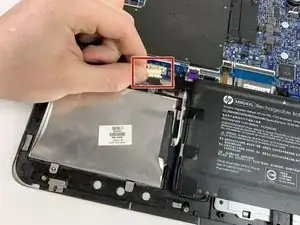

    • Disconnect the power supply cable connected to the motherboard.

  5. LQKuW4cqKQehTd1c
    LQKuW4cqKQehTd1c
    UeF5gZnooRt3J1RJ

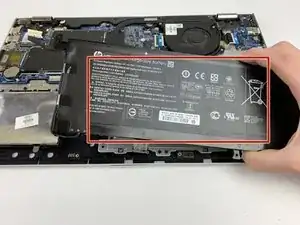

    • Remove the battery from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
