HP Envy x360 m6-w101dx Fan Replacement

Geschrieben von: Wenxuan Zhang
  • Kommentare: 0
HP Envy x360 m6-w101dx Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

15 - 30 Minuten

Einleitung

This is a guide that will help you replace the broken fan in your HP Envy x360 m6-w101dx laptop.

The fan is a part of the hardware that supports the CPU by cooling it rapidly. A failing fan will result in the back of your laptop overheating and/or generating a sound like that of a collision of objects. In some conditions, your laptop might stop working because of the high temperature of your CPU.

Please review the troubleshooting page before you use this guide to replace your device since in some cases you will repair your fan without having to replace it. The link to the troubleshooting page is: HP ENVY x360 m6-w101dx Troubleshooting

Please make sure that your CPU fan is properly connected to your computer. A failed connection will result in the computer system not being able to properly identify the fan, resulting in an error report.

  1. iJbuI3UnuehgOflI

    • Place the laptop so that the bottom panel is facing upwards.

  2. WUKXWIqqdaIUfMQX
    WUKXWIqqdaIUfMQX
    LIxOeTF1wCFVir2S
    FyT5vBZbVlDVy4AI

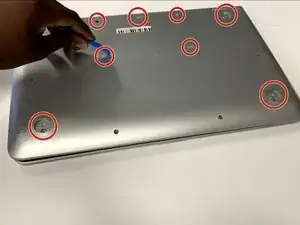

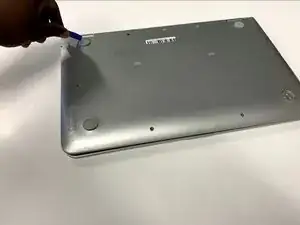

    • Remove the screw covers using an iFixit opening tool.

  3. t6wI3mRPOXJINQVy

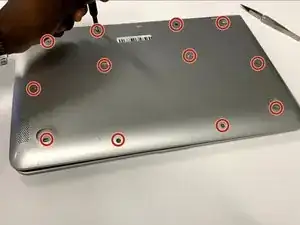

    • Remove twelve 8 mm Phillips #1 screws.

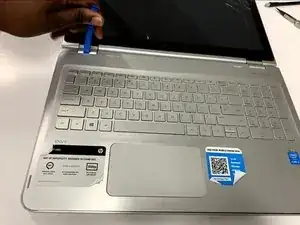

  4. CF2YtpMRrFJbc3Z6
    CF2YtpMRrFJbc3Z6
    NSlYXJ3ylWOKQITq
    ycoeUYNoRX3yRSMn

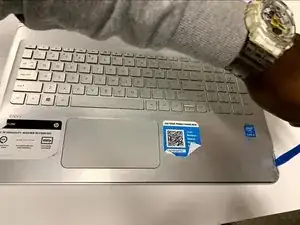

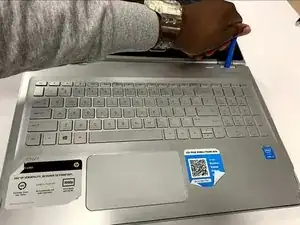

    • Pry open a gap in the edge of the keyboard with an iFixit opening tool.

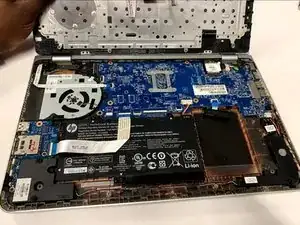

  5. yUU3YUt3ybKGCqjJ

    • Remove the keyboard from the laptop.

  6. aNueIMC3LYEZ1fOc

    • Remove the five 4.5mm Phillips #1 screws surrounding the fan.

  7. RPRiHfOFG4EWwCvW

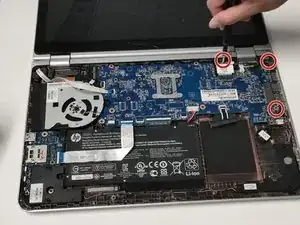

    • Remove the three 4.5mm Phillips #1 screws from right side of the motherboard.

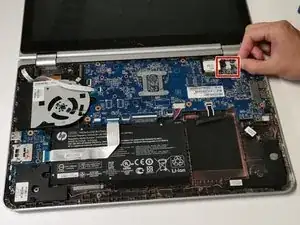

  8. eWWtsnTxUnPjNsny

    • Detach the cable between the CPU and the motherboard.

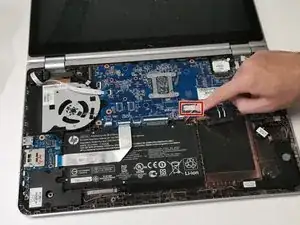

  9. xbFeEdapuJInyUm6

    • Detach the cable between the battery and the motherboard.

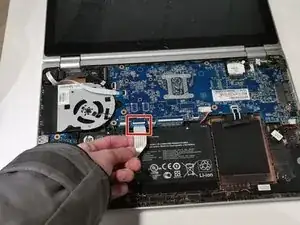

  10. ae4jr3RNfLs6aI6H

    • Disconnect the cable between the SD card and the motherboard.

  11. 3GBVwjlpBFSaTM1Z

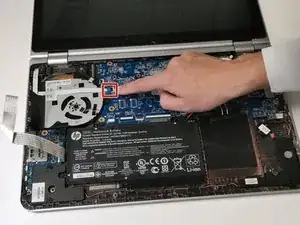

    • Disconnect the cable between the screen and the motherboard.

  12. QMZ5UrZilmnQKsaN

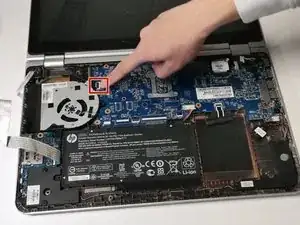

    • Detach the connection between the fan and the motherboard.

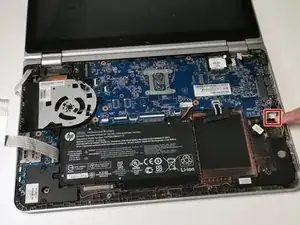

  13. LXD1WsRb4DgmKUcG

    • Disconnect the cable from the speaker to the motherboard.

  14. IGVTOdVkSDC1lZET

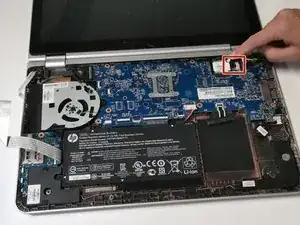

    • Disconnect the cable between the CPU and the power interface.

  15. NhGriUys2mQxmkfe

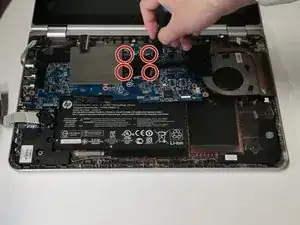

    • Turn the connected motherboard and fan upside down and remove the four 4.5mm Phillips #1 screws from the middle of the back of the motherboard.

  16. isB1Y5ZrmalBfZ2p

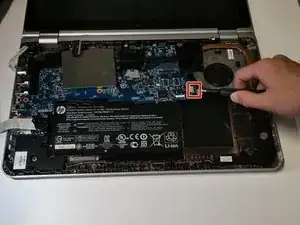

    • Disconnect the cable connecting the fan to the motherboard.

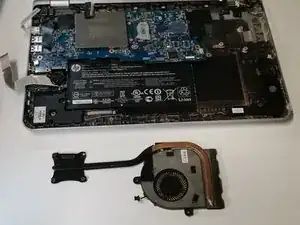

  17. 2am5kHAWJGsMAHkS

    • Remove the fan from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
