HP Envy x360 m6-w103dx Daughterboard Replacement

Geschrieben von: Patrick d'Anjou
  • Kommentare: 1
HP Envy x360 m6-w103dx Daughterboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 - 45 Minuten

Einleitung

This replacement guide is for the daughterboard of the HP Envy x360 m6-w103dx. The daughterboard contains a USB port and SD card slot.

Make sure the computer is unplugged and powered off before touching any internal parts.

Removing the daughterboard is not dangerous and doesn’t require any special technical skills.

  1. FfL4bFNWFNyDhRID
    FfL4bFNWFNyDhRID
    MKKAneD5HcIqwiaq

    • Before you begin, be sure to power off your laptop.

    • Using an opening pick, remove the 4 rubber feet and 4 screw covers.

  2. k2oFMXTGbDAuRDVS
    k2oFMXTGbDAuRDVS
    qLFfFd61eSXDxnON

    • Unscrew the twelve 6 mm screws from the bottom of the laptop using a Phillips #0 screwdriver.

  3. Is1Y1PCqWIyX1yee
    Is1Y1PCqWIyX1yee
    sbDQcaJaYiPllwkR
    uGiEYTvyUVAyEKtb

    • Open the laptop carefully, with the keyboard face up.

    • Pry around the outside of the keyboard with the plastic opening tool until the keyboard can be lifted slightly.

    • When lifting the keyboard do not pull too hard. There are cables that must be disconnected before the keyboard can be removed.

  4. Mt2LpWAcwSkrCx25
    Mt2LpWAcwSkrCx25
    EKdNYMcQRTbHWVQt
    AdHhARBcUUIjTmnG

    • Lift the keyboard until you can see the cables connected to the motherboard.

    • Gently lift the tab on each ZIF connector that connects each cable to the motherboard using a spudger. Once each tab is flipped up, the corresponding ribbon cable will come out easily.

    • Detach the keyboard.

  5. Syq22naMYMOxNsmD
    Syq22naMYMOxNsmD
    iBlS5YVgOiEU1bqE
    Pm4FOunWULWOxbBy

    • Remove the four 6 mm Phillips #0 screws holding the battery in place.

    • The white arrows on the battery point to where each screw is.

  6. N21TFLsMLw5QdtuQ
    N21TFLsMLw5QdtuQ
    aatWjQEvcHkcWwPd
    VUnTE4Q6XhW2KTFN

    • Unplug the ribbon cable by flipping up the white tabs on the ZIF connectors and gently sliding the ribbon cables out of their sockets.

    • Unplug the battery connector by grasping the small white tabs on either side of the connector and pulling down towards the battery.

  7. ufTCLbpMIGIQgmOr
    ufTCLbpMIGIQgmOr
    Dk3LpmwNgYFJJIBS
    QcKuFtndF5DGKXLc

    • Lift out the battery.

    • You may need to peel off the ribbon cable and replace it after installing the new battery if your replacement part doesn't have one already adhered.

    Awesome explain

    John Ti -

  8. PQTJME2SfQdOZ2P5

    • Unscrew the two screws from the daughterboard using a Phillips #0 screwdriver.

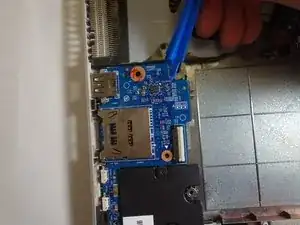

  9. 6TVF5GjfAybTAECu

    • Use the plastic opening tool to remove the daughterboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
