This replacement guide is for the display of the HP Envy x360 m6-w103dx. The display is so you can see what is happening on the screen. All you need to complete this guide is a plastic opening tool and a #0 Phillips screwdriver.
Make sure the computer is unplugged and powered off before touching any internal parts.
Removing the display doesn’t require any special technical skills. This is not dangerous, but caution is recommended to keep from breaking the screen.
-
-
Unscrew the twelve 6 mm screws from the bottom of the laptop using a Phillips #0 screwdriver.
-
-
-
Open the laptop carefully, with the keyboard face up.
-

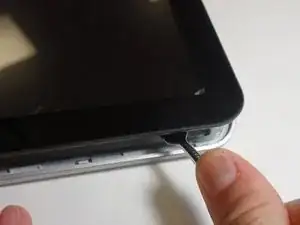

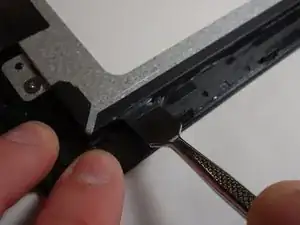

Pry around the outside of the keyboard with the plastic opening tool until the keyboard can be lifted slightly.
-
-
-
Lift the keyboard until you can see the cables connected to the motherboard.
-

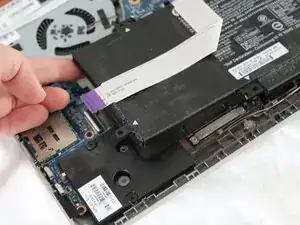

Gently lift the tab on each ZIF connector that connects each cable to the motherboard using a spudger. Once each tab is flipped up, the corresponding ribbon cable will come out easily.
-
Detach the keyboard.
-
-
-

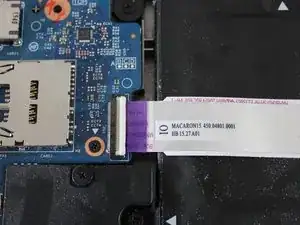

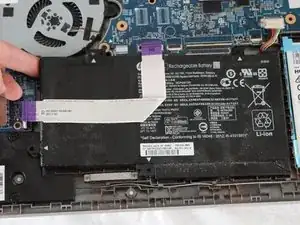

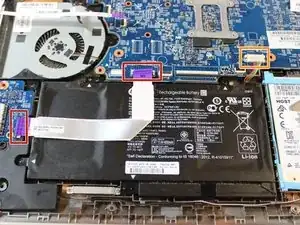

Unplug the ribbon cable by flipping up the white tabs on the ZIF connectors and gently sliding the ribbon cables out of their sockets.
-

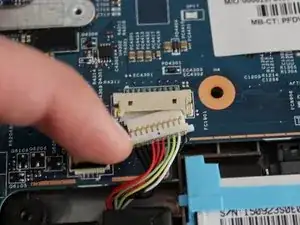

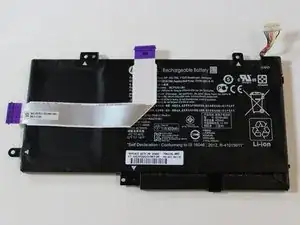

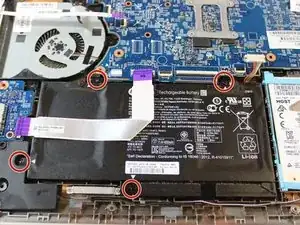

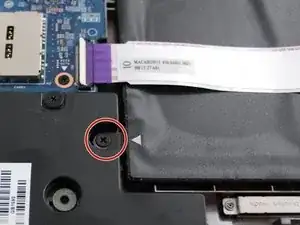

Unplug the battery connector by grasping the small white tabs on either side of the connector and pulling down towards the battery.
-
-
-

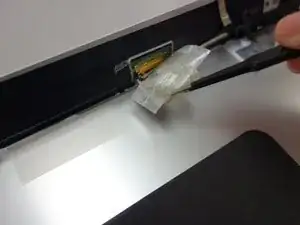

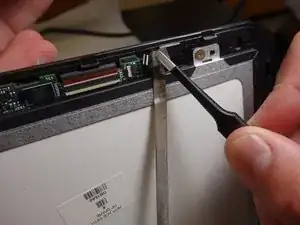

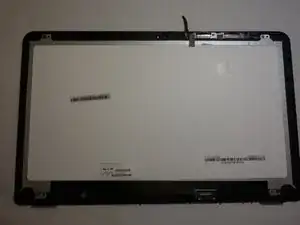

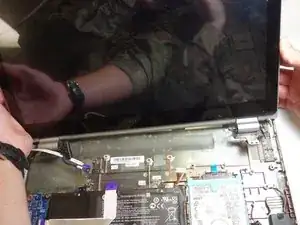

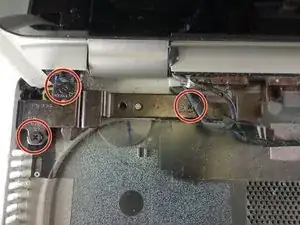

Remove the tape and disconnect the ribbon from the top right of the display using blunt tweezers.
-
To reassemble your device, follow these instructions in reverse order.
