HP Envy x360 m6-w103dx Memory (RAM) Replacement

Geschrieben von: Steven Ngo
  • Kommentare: 0
HP Envy x360 m6-w103dx Memory (RAM) Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

This replacement guide is for the memory (RAM) of the HP Envy x360 m6-w103dx. All you need to complete this guide is a plastic opening tool, a #0 Phillips screwdriver, and an anti-static wrist strap.

If you suspect there are issues with the memory, please refer to the troubleshooting guides here.

Wear the anti-static wrist strap and attach it to a metal surface to avoid damaging electrical components.

Internal components of the laptop can be hot from use. Be sure to let the laptop cool down before beginning the replacement.


  1. FfL4bFNWFNyDhRID
    FfL4bFNWFNyDhRID
    MKKAneD5HcIqwiaq

    • Before you begin, be sure to power off your laptop.

    • Using an opening pick, remove the 4 rubber feet and 4 screw covers.

  2. k2oFMXTGbDAuRDVS
    k2oFMXTGbDAuRDVS
    qLFfFd61eSXDxnON

    • Unscrew the twelve 6 mm screws from the bottom of the laptop using a Phillips #0 screwdriver.

  3. Is1Y1PCqWIyX1yee
    Is1Y1PCqWIyX1yee
    sbDQcaJaYiPllwkR
    uGiEYTvyUVAyEKtb

    • Open the laptop carefully, with the keyboard face up.

    • Pry around the outside of the keyboard with the plastic opening tool until the keyboard can be lifted slightly.

    • When lifting the keyboard do not pull too hard. There are cables that must be disconnected before the keyboard can be removed.

  4. Mt2LpWAcwSkrCx25
    Mt2LpWAcwSkrCx25
    EKdNYMcQRTbHWVQt
    AdHhARBcUUIjTmnG

    • Lift the keyboard until you can see the cables connected to the motherboard.

    • Gently lift the tab on each ZIF connector that connects each cable to the motherboard using a spudger. Once each tab is flipped up, the corresponding ribbon cable will come out easily.

    • Detach the keyboard.

  5. VpyRWw6eRfnNLZgs

    • Disconnect the pin head battery connection to remove power from the motherboard.

    • Unscrew the five 4mm screws holding the motherboard in place using a #0 Phillips screwdriver.

    • It's possible the positions of the screws will be different on your board. If the motherboard resists lifting, double-check that all screws have been removed.

  6. 5N2jEijb34oOXJ3g
    5N2jEijb34oOXJ3g
    wvwE1nBBXydYESED
    gIevBjK1LFXPaeyx

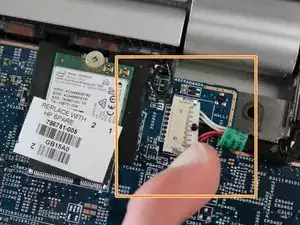

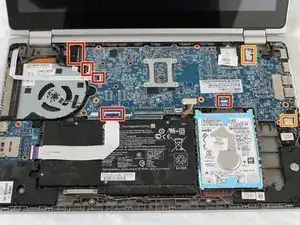

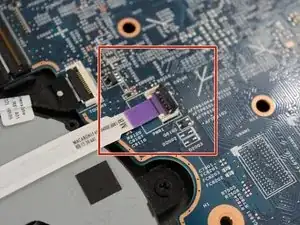

    • Remove the five flat ribbon cables by gently lifting the head of the cable up and back.

    • Remove the two remaining multicolored ribbon cables by pulling the white plastic head backwards.

    • Do not pull directly on the wires.

    • If the head of the multicolored ribbon cable doesn't come out, try gently wiggling it side to side as you pull.

  7. FDwM5SBeYsOGoWUP
    FDwM5SBeYsOGoWUP
    gticBSXW2BxoYwDm
    v3ErAnFUaNe2KllQ

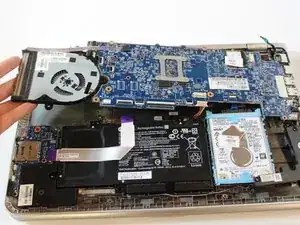

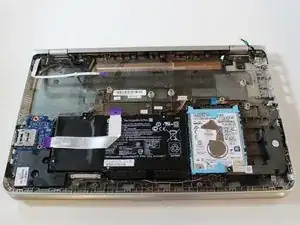

    • Lift the motherboard up from the left side at a shallow angle.

    • Gently pull the motherboard to the left and gently wiggle it side to side until the ports on the right side of the board detach from the case.

    • Ensure the laptop is well supported, as the motherboard is a heavy component and removing it may make the laptop off-balance.

  8. LObKgbyu4CsWxQtV
    LObKgbyu4CsWxQtV
    21I6i4qNVGWOANYl
    tJrIredFGB1wO4GF

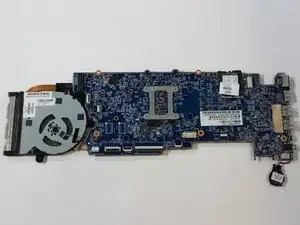

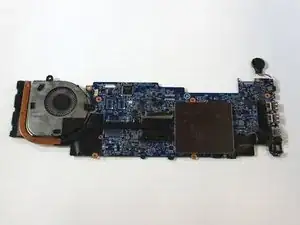

    • Carefully lay the motherboard on a flat surface with the metal plate facing up.

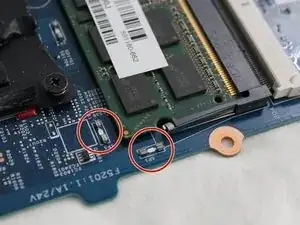

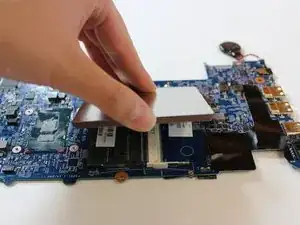

    • Remove the metal plate from the eight surrounding inserts.

    • It should lift directly off of the motherboard without much fuss.

  9. R2gUWPJaeebOoXVS
    R2gUWPJaeebOoXVS
    BGUXRaMA1oPwkSos

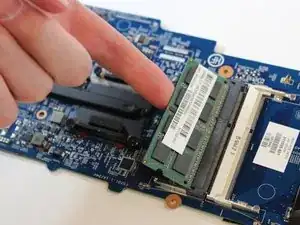

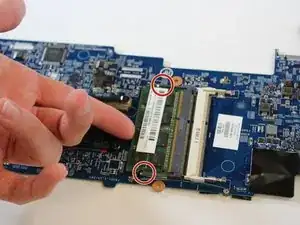

    • Move the two locking tabs on either side of the RAM stick away from each other.

    • The RAM should clear the tabs and spring up to rest at an angle to the motherboard.

  10. NqGartrwRBOh5Mxo
    NqGartrwRBOh5Mxo
    OyMkNHvtUYuw1VbG

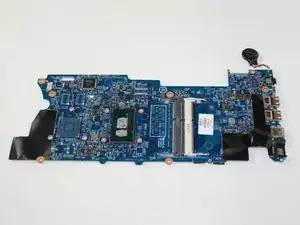

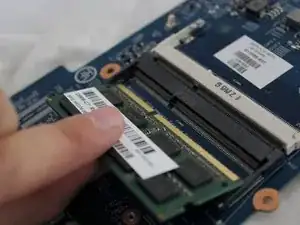

    • Gently pull the memory stick away from the memory slot with respect to the angle at which it rests.

    • To reinstall, insert the RAM stick at the same angle that it rested before, then press the stick down until the locking tabs on either side hold it down in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
