Einleitung

This guide is helpful if you have something wrong with your hard drive and you need to replace it.

  1. QwlHnDfiSihggbwG
    QwlHnDfiSihggbwG
    2E2LSbaw3NmOR4xs
    • Make sure your laptop is powered off.

    • With laptop closed flip to look at the underside of the laptop.

  2. MJHOBYUXMcgbhEhi
    • On the underside of the laptop towards the hinge for the screen there are two rectangular slide switches located inside of rectangular tracks.

  3. VHbCa2hFVeYJJdYJ
    VHbCa2hFVeYJJdYJ
    HAZf6aYbDKUXdcHY
    • The left switch is the battery unlock switch.

    • Inside the rectangular track of this switch there is an image of a closed lock that should be visible. Push this switch to the other end of the track and an image of an open lock should be visible.

  4. o1VykAgNlmQVukUA
    • Then take and slide the other switch to the other end of its track which will pop out the battery.

    • Grab the battery and pull it out of the slot.

  5. BsFo6eklUSWWcVLL
    • Remove the 4mm Phillips #1 screw located towards the middle of the laptop slightly towards the right with the picture of the CD next to it.

  6. iJaGCoJbfaSFMCGJ
    iJaGCoJbfaSFMCGJ
    Psl1EZa3kRWdLPkX
    • Slide the disc tray out of the its slot.

  7. kkF1JbuGIOhBVnxs
    kkF1JbuGIOhBVnxs
    2bCT4QiMWsvlCKRR
    • Next locate and unscrew the two 4mm Phllips #1 screws with the keyboard symbol located towards the middle and top of the bottom of the laptop.

  8. JCWXDUuWwH2EgUhC
    JCWXDUuWwH2EgUhC
    icUhHFYenoHaq1oD
    KmMD21KWY1w5FAEo
    • Next turn the laptop over and flip open the screen.

    • Use the plastic opening tool to pry the keyboard upwards from the bottom right hand corner of the keyboard.

    • Use another plastic opening tool with the first plastic opening tool you placed to undo every plastic clasp surrounding the keyboard.

  9. OgqrBBvn1YhIAQpy
    OgqrBBvn1YhIAQpy
    plXkP6XQ2aSGnUWA
    OFEiVmFZo2bYYljL
    • Next lift up the keyboard gently and use the plastic opening tool to undo the ribbon wire by unclasping the ZIF (zero insertion force) connector to the laptop.

    • Gently slide the ribbon wire out of its slot.

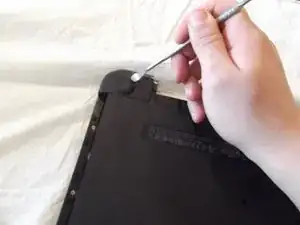

  10. AJUEFGqmi5CDyWUf
    AJUEFGqmi5CDyWUf
    FiuhMQVheU155svw
    • After removing the keyboard close the laptop and flip it over.

    • Using a spudger to remove the rubber bumpers located at the top left and top right of the laptop.

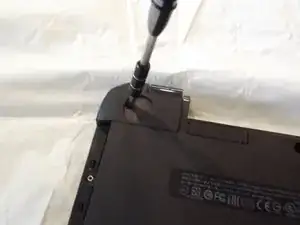

  11. hnWOmGBfACrcqPUi
    hnWOmGBfACrcqPUi
    VMsV4dgKYagCGND4
    • Remove the two 4mm Phillips #1 screws located under the rubber bumpers.

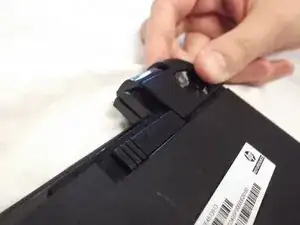

  12. Y1PVBFTnUEouwwKm
    • Now remove both corner pieces by sliding them away from the laptop and pulling upwards.

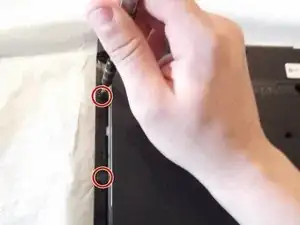

  13. qUAQlmGpNbDjhS35
    • Remove the two 4mm Phillips #1 screws located where you pulled the disk tray out of.

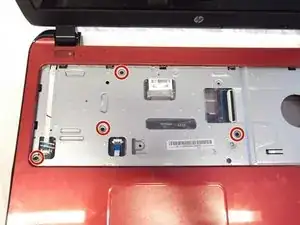

  14. EJVnbyGswZRVRtyd
    • Now flip the laptop back over and open the screen. Remove the four 4mm Phllips #1 screws.

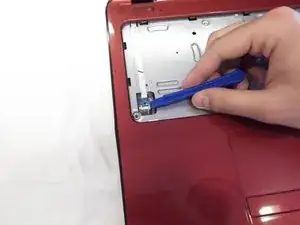

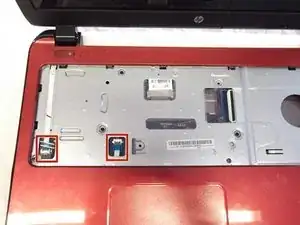

  15. dysikIc1ljIGNRKb
    dysikIc1ljIGNRKb
    om4kedrSXpmcQE2I
    • Using the plastic opening tool you will need to remove two pieces of tape.

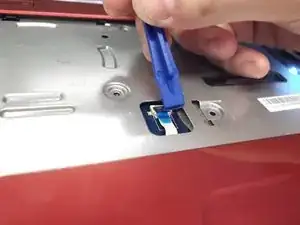

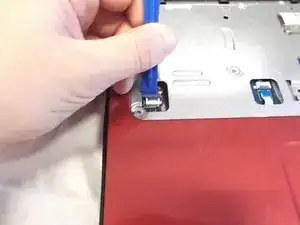

  16. 5MYRXAo6W5vq3Ep1
    5MYRXAo6W5vq3Ep1
    HGAZ3JD4MI5h2xv4
    • Using the plastic opening tool detach both ribbon cables by disconnecting both ZIF (zero insertion force) connectors on the ends.

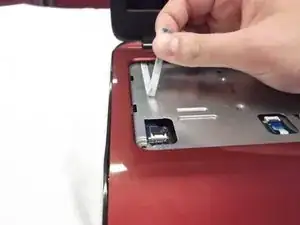

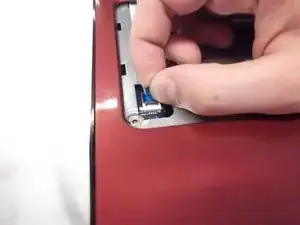

  17. eI24TUGwMngZQAtG
    eI24TUGwMngZQAtG
    ZJZWGACLhUdHUoRG
    • Now peel back the glued longer ribbon cable gently.

    • Ribbon wire is very fragile be sure not to rip it.

    You have to peel off the red cover carefully here

    Patrick Menking -

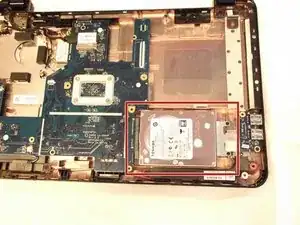

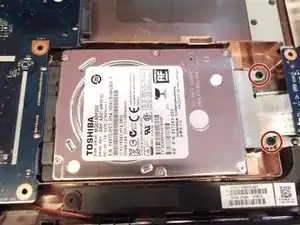

  18. bv2Su15LnSARYa1H
    bv2Su15LnSARYa1H
    dbnAawEwmMRjZBpq
    • Now you can see the hard drive.

    • Remove the two 4 mm Phllips #1 screws.

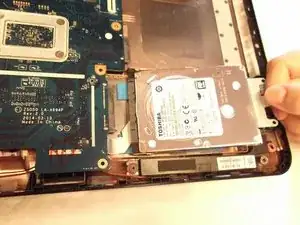

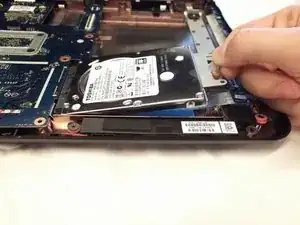

  19. DdQPxwbBsSVGIOUg
    DdQPxwbBsSVGIOUg
    yUhL1FFDjyFoYXdM
    • Now pull the bracket where the screws where to right as you lift up the hard drive.

    • It will disconnect from the motherboard as shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
