Make sure you have completed the keyboard replacement guide and the top cover removal guide.
A broken cooling fan can cause your laptop to overheat. This guide will show you how to correctly replace the cooling fan for your HP Folio 13t-1000.
-
-

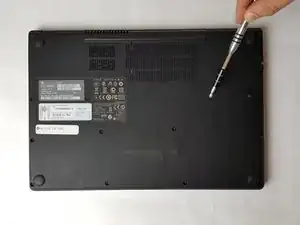

Use a PH1 screw head to remove the 16, 6mm screws from the bottom case housing of the laptop.
-
-
-

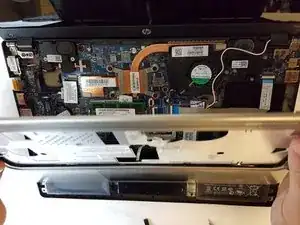

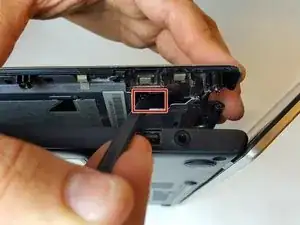

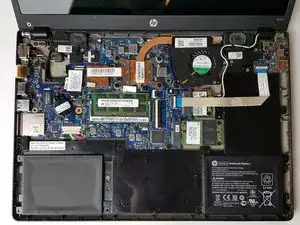

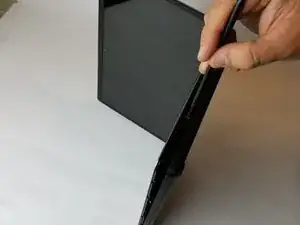

Slide the spudger with a twisting motion along the entire perimeter of the laptop until the top cover is separated from the frame of the device.
-
-
-

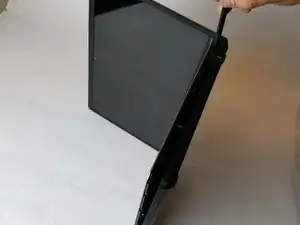

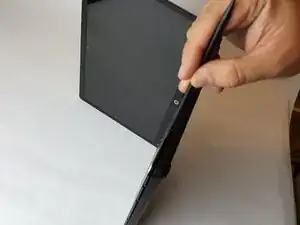

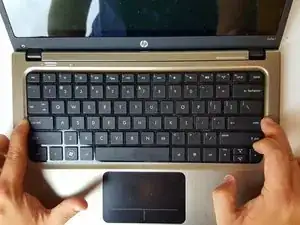

Using the flat portion of the plastic spudger, push the corner of the black surface until the first clip unlocks.
-
The top right corner of the keyboard should now be sticking out slightly.
-
Repeat the same process for the top left corner.
-
-
-

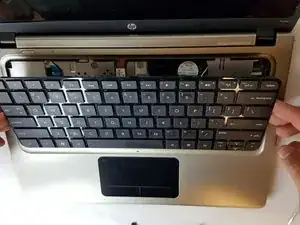

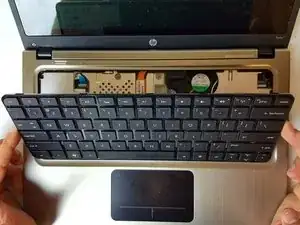

Slide the keyboard up and towards the screen just enough to separate the keyboard from the top cover.
-
-
-

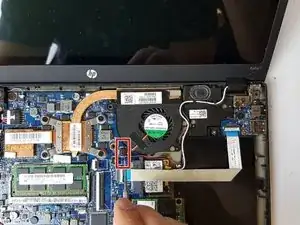

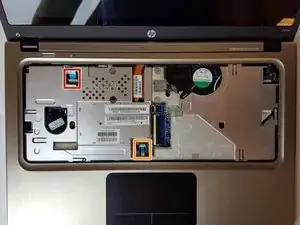

To unlock the clamps connected to the motherboard, use your fingers or insert the pointed edge of the spudger between the first clamp and the cable.
-
Repeat the same process for the second clamp.
-
-
-

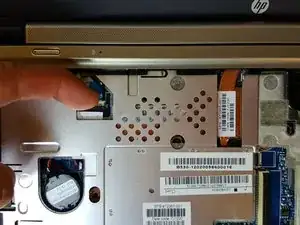

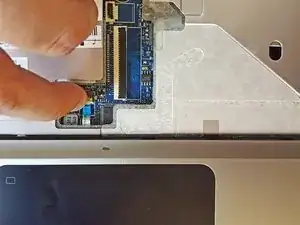

Place your finger between one of the plastic clamps and the cable and apply a slight leveraging force until the clamp pops up.
-
Do the same for the second connection.
-
-
-

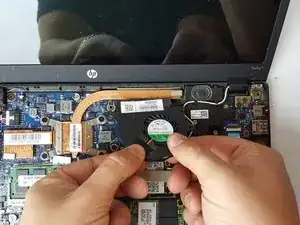

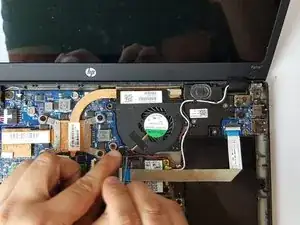

Remove the connection from the fan to the motherboard by using the nylon spudger or your fingers.
-
To reassemble your device, follow these instructions in reverse order.
