HP G60 Wi-Fi Card Replacement

Geschrieben von: jimenezser
  • Kommentare: 4
HP G60 Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

  1. yAoiVsDPVT3cNhNo
    yAoiVsDPVT3cNhNo
    EZu5bJx3EPWPK6Hb
    fqIooJPeKjPPFmYA

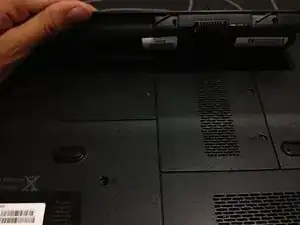

    • First, remove the battery to avoid electric shock

    • Slide and unlock the battery, then lift it

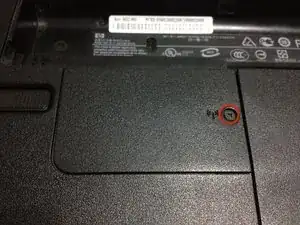

  2. GqiMmZtuFsRSrRla
    GqiMmZtuFsRSrRla
    gvJ1d5lRaIBo3s3q
    fA1GqJeFIelTa3vc

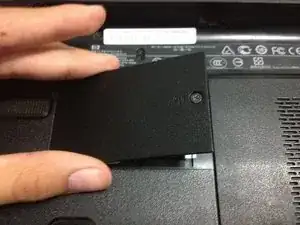

    • Now, you should to remove the Wi-Fi card cover

    • Remove this screw

    • Lift the cover

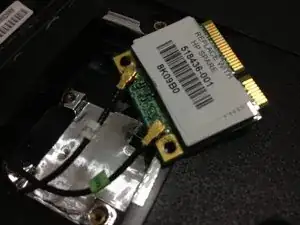

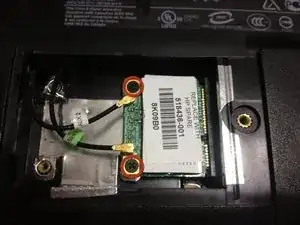

  3. KQ2C2fRZuaynfNqb
    KQ2C2fRZuaynfNqb
    SUuqyjwkoYTa2FSR
    oBOUwZETNmHi1JkJ

    • The Wi-Fi card is locked, but you should to change that.

    • Remove this two little screws.

    • Pull the Wi-Fi card.

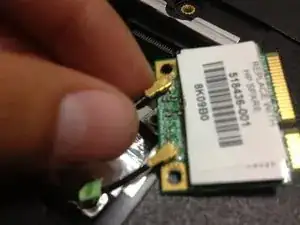

  4. fX6MkOhEkCV3AINf
    fX6MkOhEkCV3AINf
    TgjkKmeEhXgryaYY
    yCMvbyJw6cutbl4A

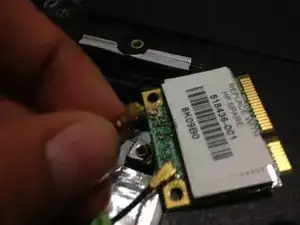

    • You should to be carefull with the next steps, the plugs are easy to separate, but they are fragile

    • Pull carefully both cables from the Wi-Fi card, it requires a little strength

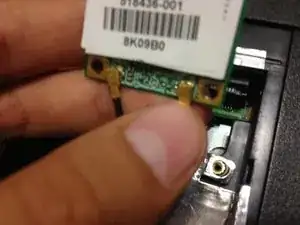

  5. IyP11oS4EQWRFhZx
    IyP11oS4EQWRFhZx
    vDULoafk6g1wa3Vs

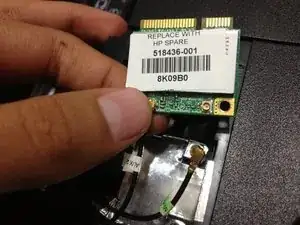

    • Now it's time to put the new Wi-Fi card

    • Connect both plugs, the cable with white tag, at the left of the Wi-Fi card, the green one, at the right plug

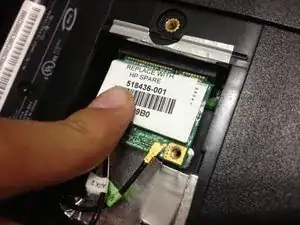

  6. TOUAHjUUucABKLQO
    TOUAHjUUucABKLQO
    fpMCPuxvBTurcqNs
    yFFG2SCwRHdXKx1B

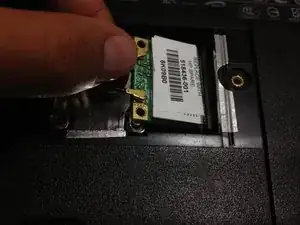

    • The Wi-Fi card already has the power plugs, now it's time to the data plug

    • Insert the Wi-Fi card in a 45 degrees angle

    • Now press it and screw it

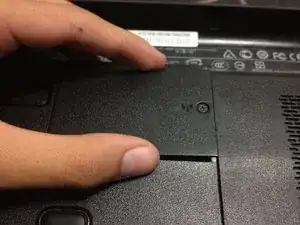

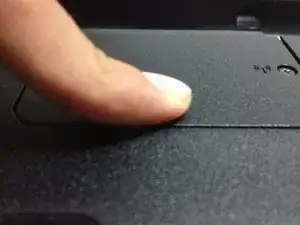

  7. HNbILMJPr2SZ6QuO
    HNbILMJPr2SZ6QuO
    gLpVQY2yS5BnTOtg
    FTemuGVwWeRcFvLQ

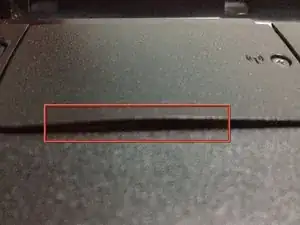

    • For finish, reassemble the cover

    • If the cover is still lifted, press softly until you hear a click
