If it becomes difficult to connect to WiFi, the WiFi card may need to be replaced. Replacing the WiFi card requires a Phillips Head #0 screwdriver in order to unscrew one screw. It is important that after removing the backing, the WiFi card and wires are handled very delicately.

  1. RSN1psFiR3eW6bGR
    • Unscrew the 5mm Phillips #0 screw.

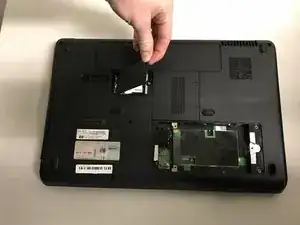

  2. npAPX5RbyeNFnY36
    • Remove the cover.

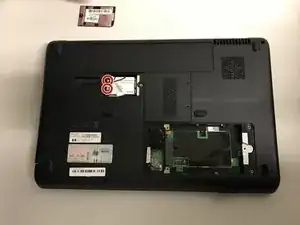

  3. qfStLiEP6Mb5I1bL
    • Unhook the two wires attached to the WiFi card.

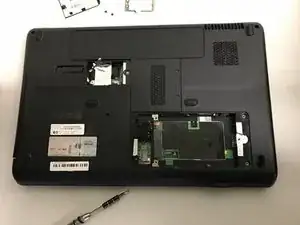

  4. mRiTLpcEofJxc64V
    • Gently remove the WiFi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
