HP G60T-600 CTO RAM Replacement

Geschrieben von: Dominic DeSantis
  • Kommentare: 0
HP G60T-600 CTO RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 25 Minuten

Einleitung

You will be removing a small plastic cover to get to your device's RAM, then with a couple short steps you will be able to remove it.

  1. WKJDOVgD4QJtKUmQ

    • Failure to remove the battery before performing any replacement guide may result in electric shock.

    • Close your device, then turn it over.

  2. 43BF4rpJoJKSEVpX
    43BF4rpJoJKSEVpX
    oWU51ZYDvlIJRavY

    • Place your index finger on the ridged tab.

  3. kGpWJjcSFT5LchrL

    • Apply moderate pressure to the tab and slide it to the right.

    • While the tab is on the right, you should be able to gently slide your battery out of your device.

  4. 6o3aQNCJwrAKEcYZ

    • Turn your device over and orient it so the battery is facing you.

  5. mjQAueeltmTLmY4A
    mjQAueeltmTLmY4A
    Fymh4QpDa6saueln
    tMVVmtHKnLq6RFbs

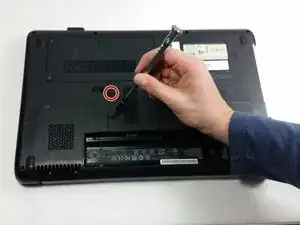

    • Unscrew the following 5mm screws using a Phillips head #0 screwdriver.

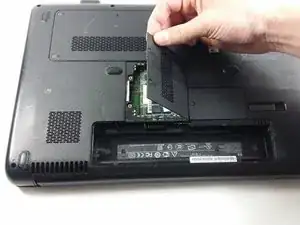

    • Remove the cover.

  6. 1IX5x2ZMZHDYL5dI
    1IX5x2ZMZHDYL5dI
    BlhkXxsNGd3YdXi5
    XMyKjMenngING4Wj

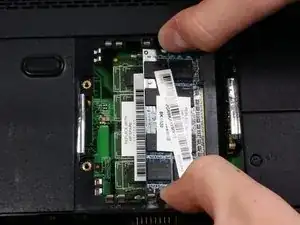

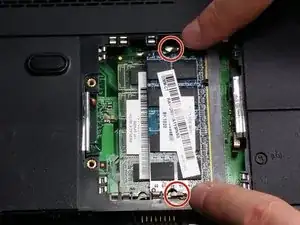

    • Place your fingers on little metals tabs on both sides of the RAM casing.

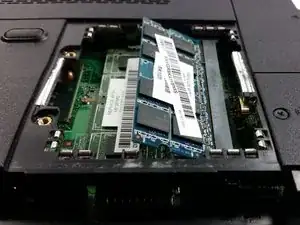

    • Push the tabs towards the sides. This should cause the RAM to pop up.

  7. OL44Qgs2RqkwOZch

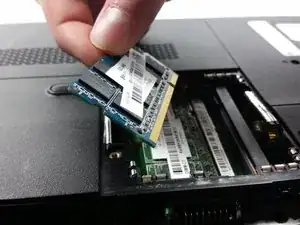

    • Pull on it with medium force at the angle it is oriented.

Abschluss

To reassemble your device, follow these instructions in reverse order.
