HP G62-223CL Hard Drive Replacement

Geschrieben von: Garret Layton
  • Kommentare: 0
HP G62-223CL Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will show the user how to remove the hard drive.

  1. X3MhViJQSwFjOpld
    X3MhViJQSwFjOpld
    4fpGO3abHjM2qy2h

    • Removing the battery while the laptop is still on may corrupt your files.

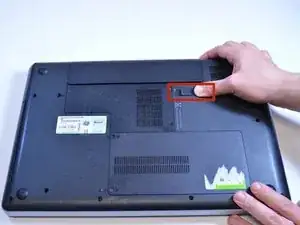

    • Turn the device over to expose the bottom of the device.

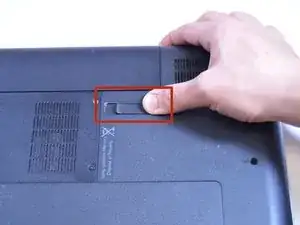

    • Slide the battery release all the way to the left.

    • There will be a click and the battery will be released from its compartment.

  2. sJWcVqgAMgOpHbkd

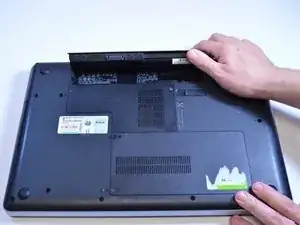

    • Carefully remove the battery from its compartment.

  3. 6QHkPvTh3RObpY3p
    6QHkPvTh3RObpY3p
    xJVtevaZh5tLmGj3

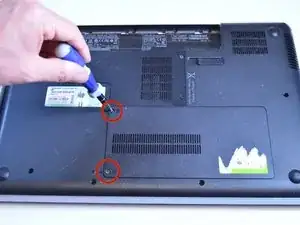

    • Locate the two Phillips head retaining screws which secure the hard drive compartment.

    • Use a Phillips #0 screwdriver to loosen the retaining screws.

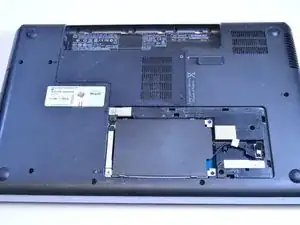

    • Remove the panel covering the compartment.

    • Ground yourself before attempting to touch any components. To ground yourself, touch a conductive metal to eliminate any static buildup in your body, which can damage computer components.

  4. OibP6LxtcedEBrxt

    • Locate the three 6 mm Phillips head screws for the hard drive.

    • Use a Phillips #0 screwdriver to remove the screws.

  5. dkGT2RgmshmlnojX

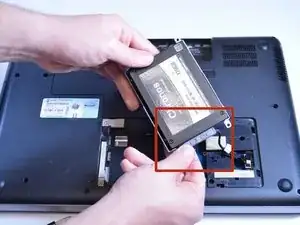

    • Remove the hard drive from the compartment.

    • Pull the connector cable from the end of the hard drive.

  6. s3ZBiRPYtZgEEYMZ

    • Locate the two 6 mm Phillips head screws on each side of the hard drive.

    • Use a Phillips #0 screwdriver to remove the screws.

    • Remove the cover from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
