HP G62-223CL RAM Replacement

Geschrieben von: Garret Layton
  • Kommentare: 0
HP G62-223CL RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will show the user how to remove the RAM modules.

  1. X3MhViJQSwFjOpld
    X3MhViJQSwFjOpld
    4fpGO3abHjM2qy2h

    • Removing the battery while the laptop is still on may corrupt your files.

    • Turn the device over to expose the bottom of the device.

    • Slide the battery release all the way to the left.

    • There will be a click and the battery will be released from its compartment.

  2. sJWcVqgAMgOpHbkd

    • Carefully remove the battery from its compartment.

  3. ubm4k6ENcBuPdBf2

    • Locate three Phillips head retaining screws which secure RAM compartment.

    • Use a Phillips #0 screwdriver to loosen the screws.

    • Remove the panel covering the compartment.

    • Ground yourself before attempting to touch any components. To ground yourself, touch a conductive metal to eliminate any static buildup in your body, which can damage computer components.

  4. MDJXUUqoTxal6YB5
    MDJXUUqoTxal6YB5
    1fxNRuktc32gbiAX

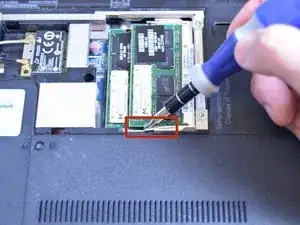

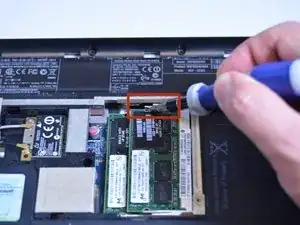

    • Use the tip of a screw driver to press the release clips away from the RAM module.

    • Once the second clip is released, the module will automatically pop up.

  5. OKHDVLufNCYNDFyw

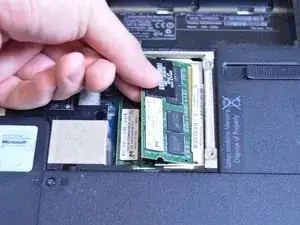

    • Carefully remove module from slot.

    • Be careful not to damage modules when removing them from their slots.

  6. DXSeDGP6MCULeQIT
    DXSeDGP6MCULeQIT
    SmUHpTA3HrXxqRAk

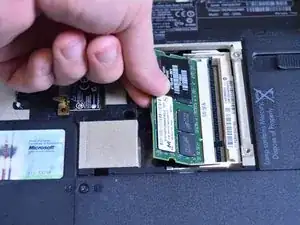

    • Repeat steps 4 and 5 for additional RAM modules.

Abschluss

To reassemble your device, follow these instructions in reverse order.
