HP G62-223CL Wireless Card Replacement

Geschrieben von: Garret Layton
  • Kommentare: 0
HP G62-223CL Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will show the user how to remove the wireless card.

  1. X3MhViJQSwFjOpld
    X3MhViJQSwFjOpld
    4fpGO3abHjM2qy2h

    • Removing the battery while the laptop is still on may corrupt your files.

    • Turn the device over to expose the bottom of the device.

    • Slide the battery release all the way to the left.

    • There will be a click and the battery will be released from its compartment.

  2. sJWcVqgAMgOpHbkd

    • Carefully remove the battery from its compartment.

  3. fbGfTQqAnM1aQrZn
    fbGfTQqAnM1aQrZn
    NqyDcLemDUHmyKkG

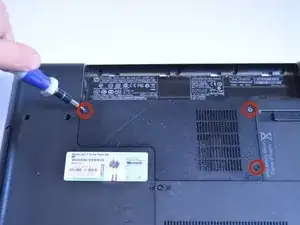

    • Locate three Phillips head retaining screws which secure the compartment.

    • Use a Phillips #0 screwdriver to loosen the retaining screws.

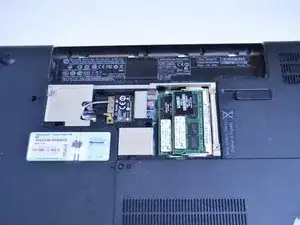

    • Remove the panel covering the compartment.

    • Ground yourself before attempting to touch any components. To ground yourself, touch a conductive metal to eliminate any static buildup in your body, which can damage computer components.

  4. SFXKPVHltUQKsrM5
    SFXKPVHltUQKsrM5
    XrwMjV3etk2l5DNc
    PBqhasWJrOa6SIJp

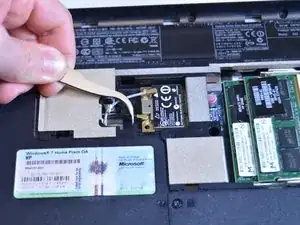

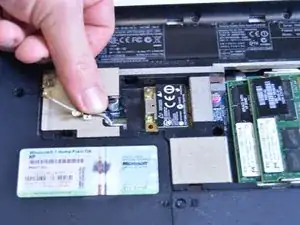

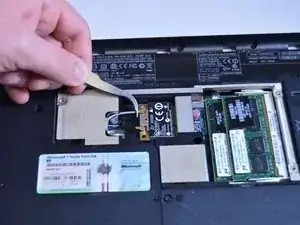

    • Use tweezers to disconnect the gray cable and the black cable from the wireless card.

  5. sBHcMORdviQWsNqC

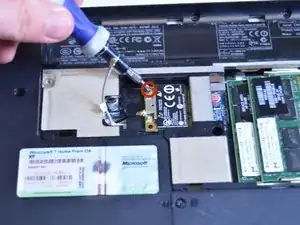

    • Use a Phillips #0 screwdriver to remove the single 4mm screw from the corner of the wireless card.

  6. smSsopnNJScKsbdB

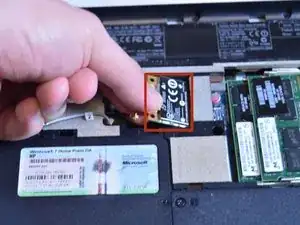

    • Carefully lift and pull wireless card. It is removed!

Abschluss

To reassemble your device, follow these instructions in reverse order.
