HP G62-340US Hard Drive Replacement

Geschrieben von: Yun Yang
  • Kommentare: 0
HP G62-340US Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

A brief guide on how to remove the hard drive from an HP G62-340.

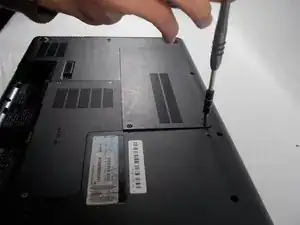

  1. IKStH42Ll1OAVtEc

    • Turn off the computer and disconnect the charging cable from the computer.

    • Turn your laptop over and locate the hard drive module compartment.

  2. OclmQu2VWVLoinMR

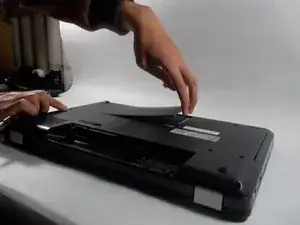

    • Use a screwdriver to loosen the two Phillips PM2.5x6.0 captive screws on the hard drive cover.

    • Lift the left side of the hard drive cover and remove the cover.

  3. rPkImItGieYXpNsa
    rPkImItGieYXpNsa
    CyHZYMXDrknjoiVU
    soCGWa233WPPMsmU

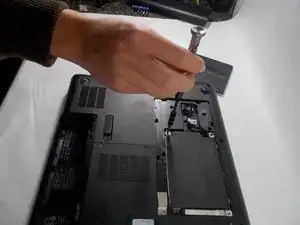

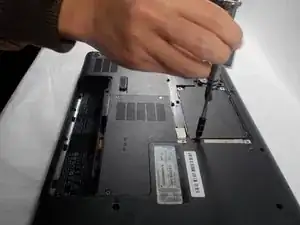

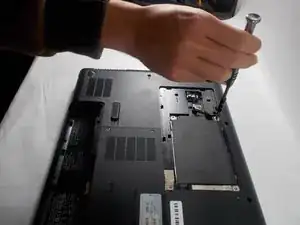

    • Use a screwdriver to remove the three Phillips PM3.0x4.0 screws on the hard drive.

  4. PO5jWZdpWyOUwwYZ

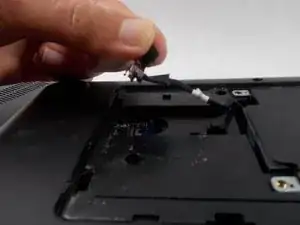

    • Disconnect the hard drive cable from the system board and gently remove the hard drive.

  5. HujCItqAHnRtLDsA
    HujCItqAHnRtLDsA
    FMPawh46VDTfyfyL
    mQrknYP5yRLE3SXA

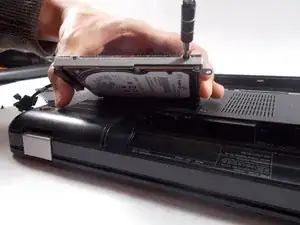

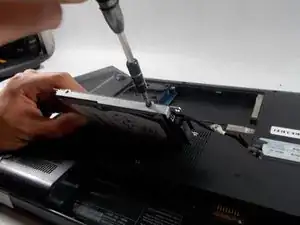

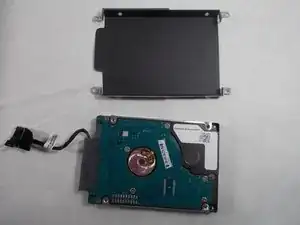

    • Remove the 4 screws from the hard drive bracket and separate it from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
