Einleitung
If you choose to replace the module with different specifications, download the driver for the new module before replacing the wifi module.
-
-
Ground yourself by either touching an unpainted metal surface or by using the Anti-Static wrist strap.
-
Turn off the computer and remove the charger from the charging port.
-

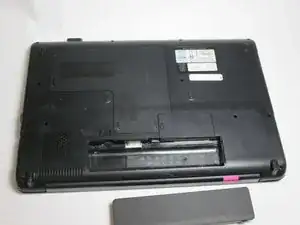

Turn the laptop over and slide the battery release catch to the right. The battery will pop up from its slot. Remove the battery using your fingers.
-
-
-

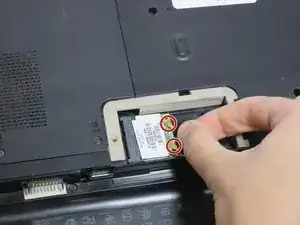

Gently remove the 2 cables clips to avoid damage.
-

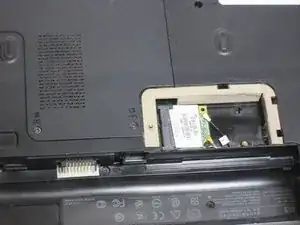

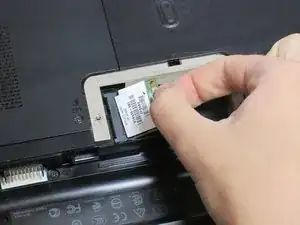

Remove the 3mm screw holding the Wi-Fi module using a Phillips #0 screwdriver.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
