    • Lay the laptop down so the bottom is facing up.

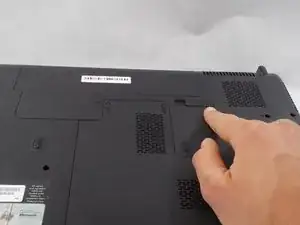

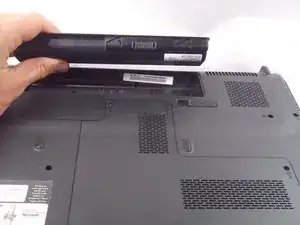

    • Push the slide button, circled in photo 1, to release the battery.

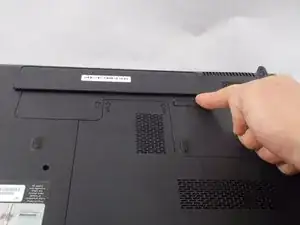

    • Action in picture 2 shows the direction and release.

    • Tilt the battery back in the direction it popped up in and remove the battery.

    • This ensures there is no power in the system that could potentially short out any components.

  2. vgMnjXRBRThiL6T1
    vgMnjXRBRThiL6T1
    gJFUCR2wtjGfZgwt
    kKZKIuYbZNQ1AxmU

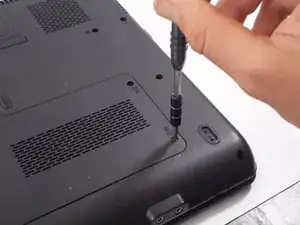

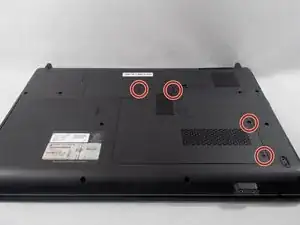

    • Remove the circled screws.

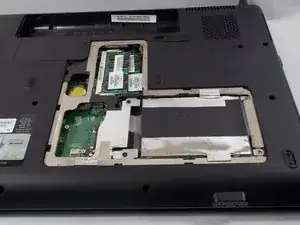

    • Remove the cover, exposing the hard drive and RAM.

  3. heB2fs5Y5OmUJxOl
    heB2fs5Y5OmUJxOl
    64IfPJdhJowWURVv
    xg1ViOhmRn66dqct

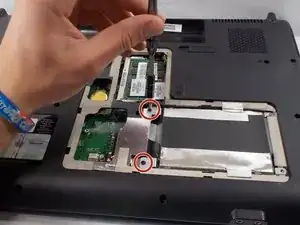

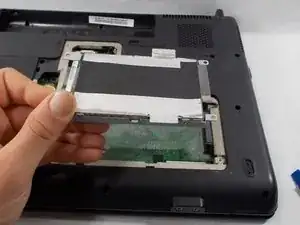

    • Remove the 2 circled screws.

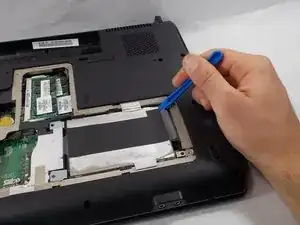

    • Use your pry to slide the hard drive over. This unplugs it from its connection and allows it to be removed.

    • Remove the hard drive.

  4. nXx1YePcvJYHBgQ3
    nXx1YePcvJYHBgQ3
    GhrxONeSX62ZSPX6

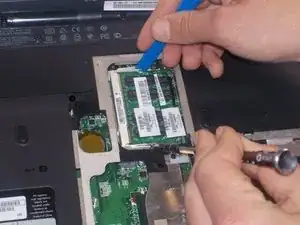

    • Push the silver tabs in to release the RAM.

    • When they pop up from the locked position they may be removed.

    • Remove the circled screws to release the WiFi card and keyboard.

  5. 1YsISTUXYPFo1VVO
    1YsISTUXYPFo1VVO
    mtHDqBfiLVS33HwI
    2Wc2FA2H2eMRqZuf

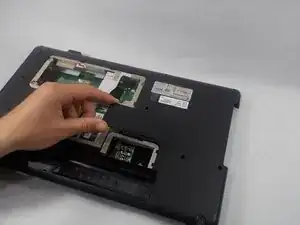

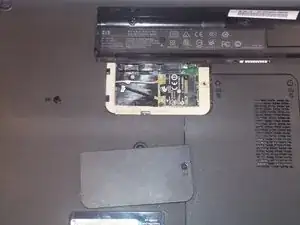

    • Remove the panel, exposing the WiFi card.

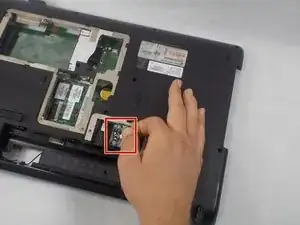

    • Remove the circle wire connections, make note to which port they were connected to.

    • Remove the WiFi card.

  6. pgSSKhGB4BELoJOb
    pgSSKhGB4BELoJOb
    Gwal6ucNKatI1LTp
    lwbnsqnPM2lKYsGy

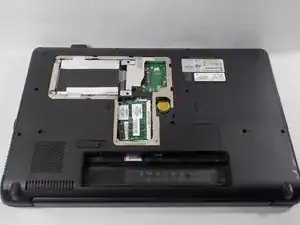

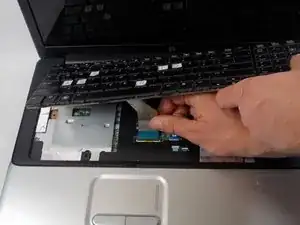

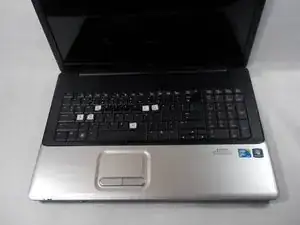

    • Flip the laptop over and open it now that the keyboard has been unscrewed.

    • Take your pry bar and go around the outer edge of the keyboard. Popping it free from the bezel.

  7. HWpnkHPJ5WiCKomh
    HWpnkHPJ5WiCKomh
    fiZjBTO2UoJAjTuD
    VwDPaqY6l6vsdiFa

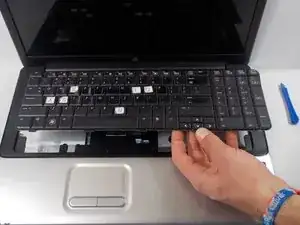

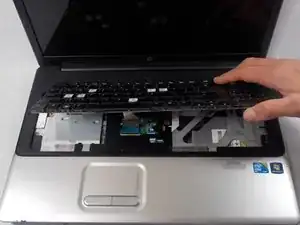

    • Lift the keyboard up.

    • Remove the connections from the keyboard to the motherboard.

    • Remember each attachments position because they will need to be connected again.

  8. 1iT2JV1XiHODtDLN
    1iT2JV1XiHODtDLN
    pwLJNqJA5sWUtHLJ
    jLUMxegFR5suTqxL

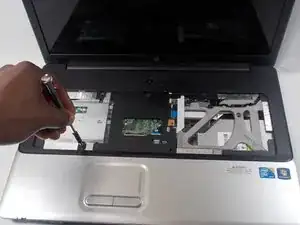

    • Remove the circled screws to release the bezel from the faceplate.

  9. SNCljq1C3PwfU55R
    SNCljq1C3PwfU55R
    VPPlDtELKuTMp3vS

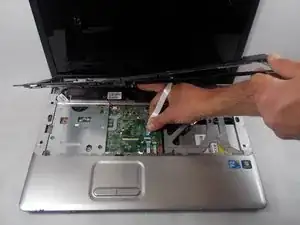

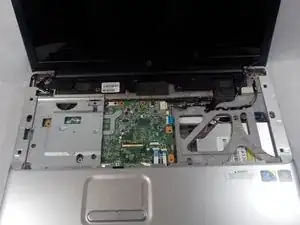

    • Lift the bezel from the face plate.

    • Disconnect the power connection from the bezel to the motherboard.

  10. sE1fBPA6EjSErldr
    sE1fBPA6EjSErldr
    SOHWc6GxoCaAw3MG
    qYyH3MTYAYOJiMKY

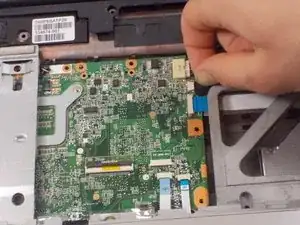

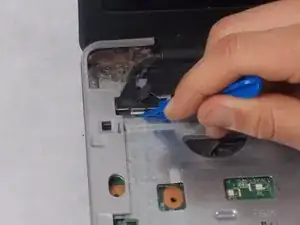

    • Remove the two screws side-by-side next to each in the red circle.

    • This will be the last layer to remove before reaching the motherboard.

  11. SlhEBSonUw6pAWhR
    SlhEBSonUw6pAWhR
    fOxGTMQeHuhjZJpU

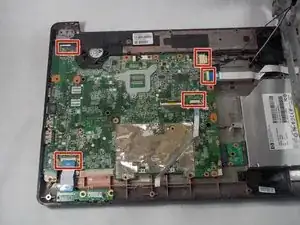

    • Carefully detach the highlighted connections.

    • Remove the motherboard from the device.

  12. M1X1jUSNFHUSYxcb
    M1X1jUSNFHUSYxcb
    vZtjUMfdP6GOWZ6M
    AGrykhJeG5vVIbIt

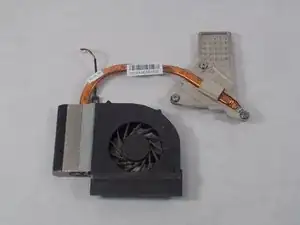

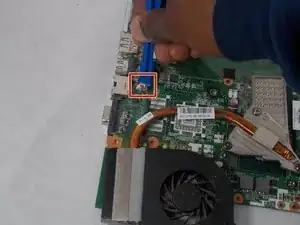

    • Remove three screws to detach the cooling fan from the motherboard.

    • Remove the last connection.

Abschluss

To reassemble your device, follow these instructions in reverse order.
