HP G72 Keyboard Replacement

Geschrieben von: oldturkey03
  • Kommentare: 1
HP G72 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten - 1 Stunde

Einleitung

To work on this laptop, or any other device, it is important to shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on the computer, and then shut it down through the operating system. Disconnect all external devices connected to the computer. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet and then disconnecting the AC adapter from the computer.

  1. 1CqD1e2Hb1AL6v2Q
    1CqD1e2Hb1AL6v2Q
    GsFRbKmoJRBQJXHp
    chvkKTACDIhQErM1

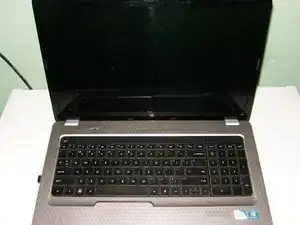

    • Shut down the computer. Disconnect all external devices connected to the computer. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet and then disconnecting the AC adapter from the computer.

    • Turn the computer so that it faces upside down. Position the computer with the front toward you.

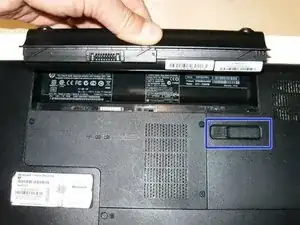

    • Slide the battery release latch to release the battery. Pivot the battery to remove it.

  2. rGyi5kmErkedyTAr
    rGyi5kmErkedyTAr
    Oiqm2UJym1YkCucK

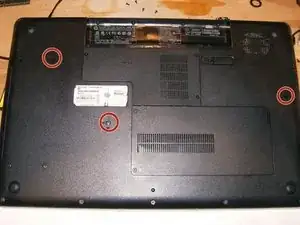

    • Remove the three Phillips PM2.5×6.5 screws that secure the keyboard to the computer.

    • Loosen the three Phillips M2.5×6.0 captive screws that secure the memory module compartment cover

  3. BPIXKRJ6o1XdJcNx
    BPIXKRJ6o1XdJcNx
    TYTcQSEI4Ft5VPvw

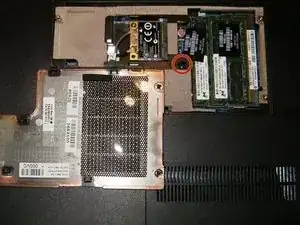

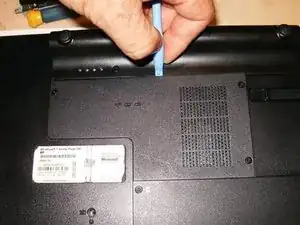

    • Use a plastic opening tool (or equivalent) to lift the back side of the cover. Small tabs hold the cover in place. Firmly pull up on the cover to release the tabs.

    • Remove the memory module compartment cover, remove the Phillips M2.5X5.0 screw

  4. yZXEdWPIEQKqrdxQ
    yZXEdWPIEQKqrdxQ
    t6uFE6mejuaCRFQS
    TMFFuTCjWpTxTIhN

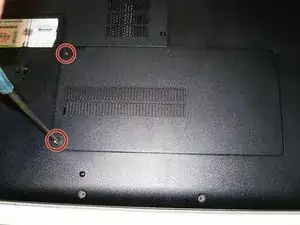

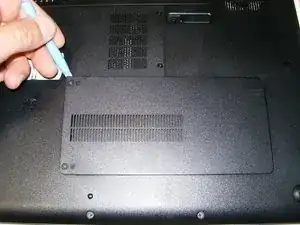

    • Loosen the two Phillips 2.5×6.0 captive screws that secure the hard drive cover to the computer.

    • The cover is snapped in by some clips. Use a plastic opening tool on both sides to remove the cover.

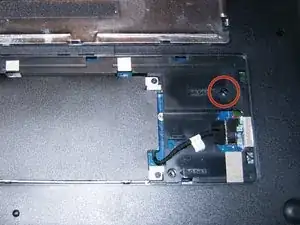

    • Remove the hard drive cover. Remove one Phillips M2.5X6.5 screw

  5. GRXiUqyMeAZEAHWp
    GRXiUqyMeAZEAHWp
    bdN4iM2bY4OYjGBr

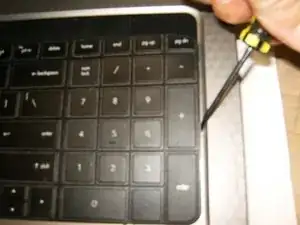

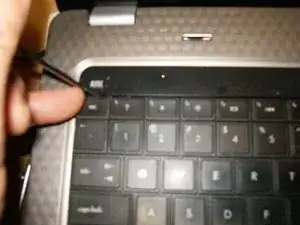

    • Turn the computer right side up. Use a plastic opening tool (or similar) and slide it along the top

    • as well as the sides. This will release the plastic tabs that hold the keyboard down.

    • Do not use anything to pry on the bottom of the keyboard. This is where solid plastic tabs are located; those may break off. The keyboard needs to be tilted to the bottom to remove it

  6. k3pJImnm5XRrAUaa
    k3pJImnm5XRrAUaa
    WZgNrY1oHnjg6Akx
    sTGCkUbLQx4EDJxs

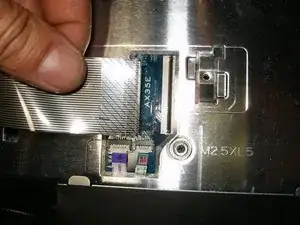

    • With the tabs on top released, flip the keyboard upside down.

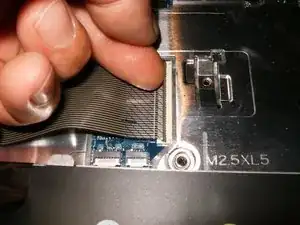

    • Open the ribbon cable connector by simply flipping the clasp upward.

    • Remove the cable

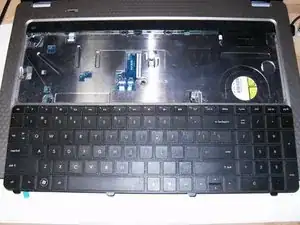

  7. yHGndk3JO5MRIfKY

    • Finally remove the Keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

oldturkey03

Mitglied seit: 29/09/10

734536 Reputation

Ein Kommentar

Use a #1 Phillips, #0 in a pinch - #00 is too small. Also my G72 has different screw locations holding on the memory and hard drive covers. Mine also does not require removing the hard drive cover. The necessary screw locations are marked with a little keyboard icon.

Apart from the variations, good article with decent illustrations. Anyone willing to tackle the job should be able to do it in fifteen minutes or less.
