HP Media Center 876x RAM Replacement

Geschrieben von: Balakrishnan Pillai
  • Kommentare: 0
HP Media Center 876x RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

RAM is essential to all computational processes. Qualitatively, high quantities of RAM result in a "faster" user experience, while low levels of RAM result in sluggish computer response. If your HP Media Center 876x is unusually slow, it may be necessary to add new, or replace existing, RAM.

  1. e2ZCLlUDTBRtKUfT
    e2ZCLlUDTBRtKUfT
    FlFpxRkAvhCP2Fhq

    • Remove the two (9 mm) hand screws on the back panel.

  2. A3c3E4yZAS2GHpVS
    A3c3E4yZAS2GHpVS
    BM3p1thU6cBeDFZE
    FcgoGlvvLBDlDjHm

    • Place the tower on its side.

    • Slide the side panel horizontally to detach, and pull upward to remove.

  3. cRGBLOYXIoUG6qOv

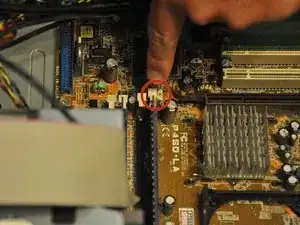

    • Identify the RAM card (distinguished by the beige fastening tabs).

    • Push tab away from RAM card (into the open position).

    • Be sure to open all fastening tabs (2 per RAM card) before moving forward.

  4. nAHibL2jNovSqQnJ
    nAHibL2jNovSqQnJ
    jY6QCjH1jOQLmH3u

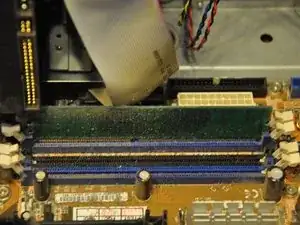

    • Pull RAM card vertically out of slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
