HP Media Center 876x Side Panel Replacement

Geschrieben von: Balakrishnan Pillai
  • Kommentare: 0
HP Media Center 876x Side Panel Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

2 Minuten

Einleitung

The side panel is the main entry port into the inner cavity of the HP Media Center 876x. In order to perform any repairs or replacements, the side panel must be removed.

  1. e2ZCLlUDTBRtKUfT
    e2ZCLlUDTBRtKUfT
    FlFpxRkAvhCP2Fhq

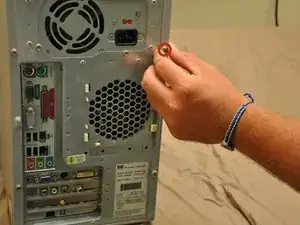

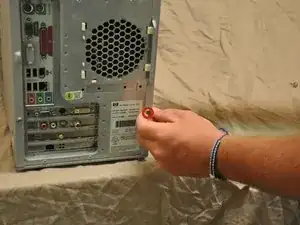

    • Remove the two (9 mm) hand screws on the back panel.

  2. A3c3E4yZAS2GHpVS
    A3c3E4yZAS2GHpVS
    BM3p1thU6cBeDFZE
    FcgoGlvvLBDlDjHm

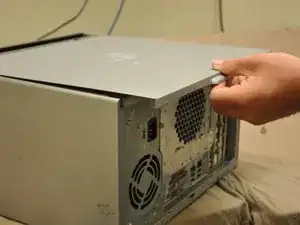

    • Place the tower on its side.

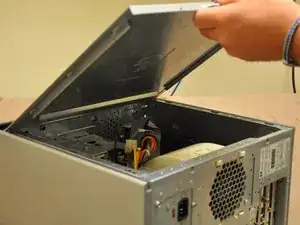

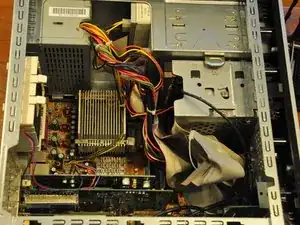

    • Slide the side panel horizontally to detach, and pull upward to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
