HP Media Center 876x TV Tuner Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

The HP Media Center 876x is capable of receiving television service through its TV tuner card. If you are unable to receive proper service, the TV tuner card may require replacement.

  1. e2ZCLlUDTBRtKUfT
    e2ZCLlUDTBRtKUfT
    FlFpxRkAvhCP2Fhq

    • Remove the two (9 mm) hand screws on the back panel.

  2. A3c3E4yZAS2GHpVS
    A3c3E4yZAS2GHpVS
    BM3p1thU6cBeDFZE
    FcgoGlvvLBDlDjHm

    • Place the tower on its side.

    • Slide the side panel horizontally to detach, and pull upward to remove.

  3. dRxUihktMIQSYcgY
    dRxUihktMIQSYcgY
    CJgSLqmUhlCVaQXa

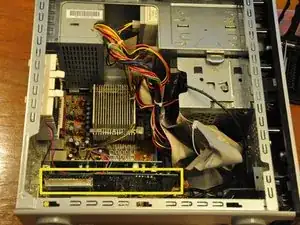

    • Identify the TV tuner card (distal from the cooling fan, in the lower-left corner of the tower).

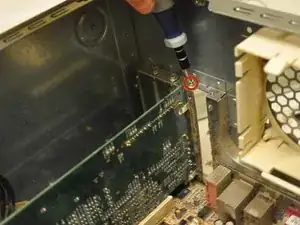

    • Using a #0 Phillips head screwdriver, remove the one (6 mm) screw fastening the TV tuner card into its slot.

  4. mYePZghCTaPxCGDH
    mYePZghCTaPxCGDH
    REyAYox2dnM6ByoF

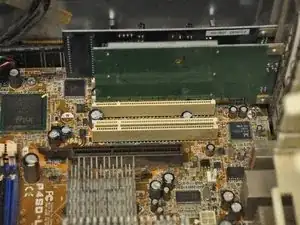

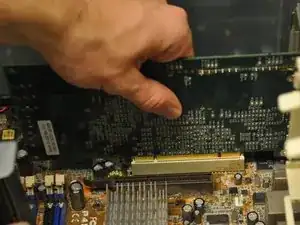

    • Gently pull the card vertically out of its port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
