HP Media Center 876x Video Card Replacement

Geschrieben von: Balakrishnan Pillai
  • Kommentare: 0
HP Media Center 876x Video Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The video card is instrumental in the visualization of data by the HP Media Center 876x system. If the images on screen are distorted, of bad quality, or will not appear at all, the video card may require replacement.

  1. e2ZCLlUDTBRtKUfT
    e2ZCLlUDTBRtKUfT
    FlFpxRkAvhCP2Fhq

    • Remove the two (9 mm) hand screws on the back panel.

  2. A3c3E4yZAS2GHpVS
    A3c3E4yZAS2GHpVS
    BM3p1thU6cBeDFZE
    FcgoGlvvLBDlDjHm

    • Place the tower on its side.

    • Slide the side panel horizontally to detach, and pull upward to remove.

  3. 1Sqt1hdMUhWJwgOw

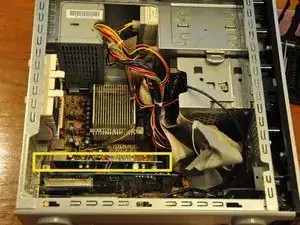

    • Identify the video card (the green card nearest to the fan casing in the bottom left hand corner of the tower).

  4. DvUOPPJkmtyVadcY

    • Using a #0 Phillips head screwdriver, remove the one (6 mm) screw fastening the video card to its mount.

  5. yw21bbmVDluTLT3X
    yw21bbmVDluTLT3X
    KNjQSxDogpe2CKnb

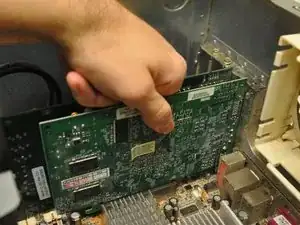

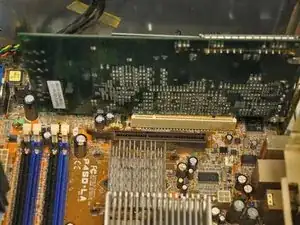

    • Pull the video card vertically out of its port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
